ascon A5LCX 10 C User Manual

132

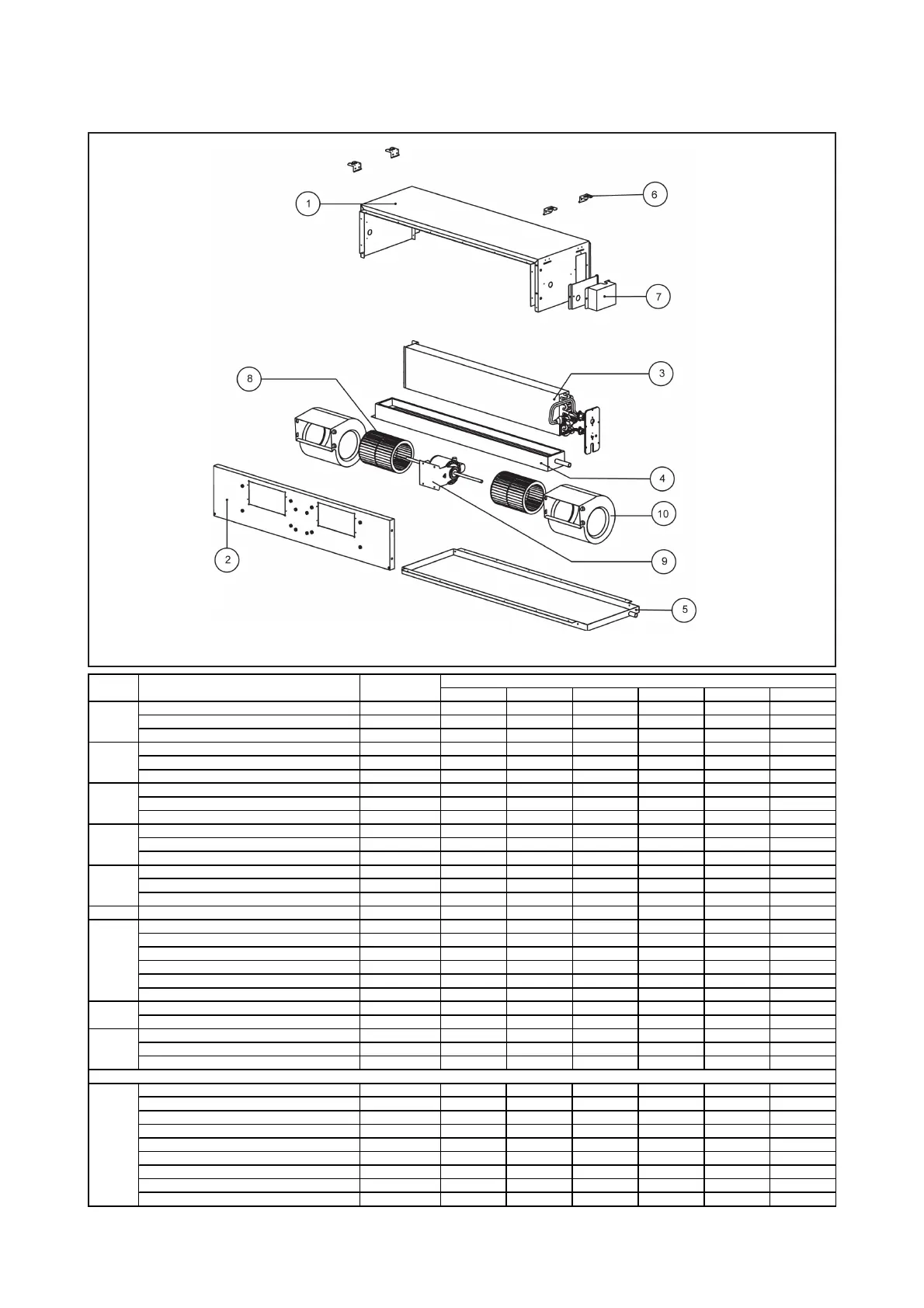

MODEL : A5CCX 15/20/25C/CR
A5CCX15C A5CCX15CR A5CCX20C A5CCX20CR A5CCX25C A5CCX25CR
CABINET (U), CC15C/CR R01013032453
√√
CABINET, (U) CC20C/20CR R01013034005
√√
CABINET, (U) CC25C/25CR R01013032362
√√
ASSY, FAN DECK, CC15C/15CR R50014032628
√√
ASSY, FAN DECK,CC20C/20CR R50014035082
√√
ASSY, FAN DECK, CC25C/25CR R50014032629
√√
ASSY, COIL MAIN 5CC15C/CR R50024079396
√√
ASSY,COIL MAIN 5CC20C/CR R50024079268
√√
ASSY,COIL MAIN 5CC25C/CR R50024079271
√√
ASSY, DRAIN PAN CC15C R50063032460
√√
ASSY, DRAIN PAN CC20C R50063033908
√√
ASSY, DRAIN PAN CC25C R50063032369
√√
ASSY, SECONDARY DRAIN PAN (P),15C/15CR R50015032660
√√
ASSY, SECONDARY DRAIN PAN(P),CC20/20CR R50015035085
√√
ASSY, SECONDARY DRAIN PAN(P),CC25/25CR R50015032661
√√
6 HANGER CC10-60C/CW R01014032372
√√√√√√
CONTROL MODULE, 09A EC VA3 CCX 15 R04084086598
√
CONTROL MODULE, 09A AP VA3 CCX 15 R04084086602
√
CONTROL MODULE, 09A EC VA3 CCX 20 R04084086599
√
CONTROL MODULE, 09A AP VA3 CCX 20 R04084086603
√
CONTROL MODULE, 09A EC VA3 CCX 25 R04084086600
√
CONTROL MODULE, 09A AP VA3 CCX 25 R04084086604
√
ASSY, BLOWER W&H DH16-20-R R50039005355
√√√√√√
ASSY, BLOWER W&H DH16-20-L R50039005356
√√√√√√
MOTOR, MCC15C-501 50W HONGLU R03039004897
√√
MOTOR, MCC20C-501 80W HONGLU R03039004898
√√
MOTOR, MCC25C-501 100W HONGLU R03039004899
√√
AIR FILTER, SARANET 195x700mm CC15C R03084037811
√√
AIR FILTER, SARANET 195x860mm CC20C R03084037809
√√
AIR FILTER, SARANET 195x995mm CC25C R03084037812
√√
ASSY, DRAIN PIPE JOINT,CC10-25C/CR R50094035451
√√√√√√
HANDSET, WIRED SLM3 EC 7M ACSON N/S R04089011808
√√√
HANDSET, WIRED SLM3 AP 7M CC ACSON N/S R04089011752
√√√
THERMISTER HOLDER WM/CC R12014000432
√√
THERMISTER HOLDER WM10/15 R12014016707
√√ √√
CLIP, COIL SENSOR (6mm) R07054021183
√√√√√√
DESCRIPTION PART NUMBERNo
RELATED MODEL
Parts Not In The Diagram
1
2
3
4
5
7
9
8 & 10
