ascon A5LCX 10 C User Manual

131
MODEL : A5CCX 10C/CR
A5CCX10C A5CCX10CR

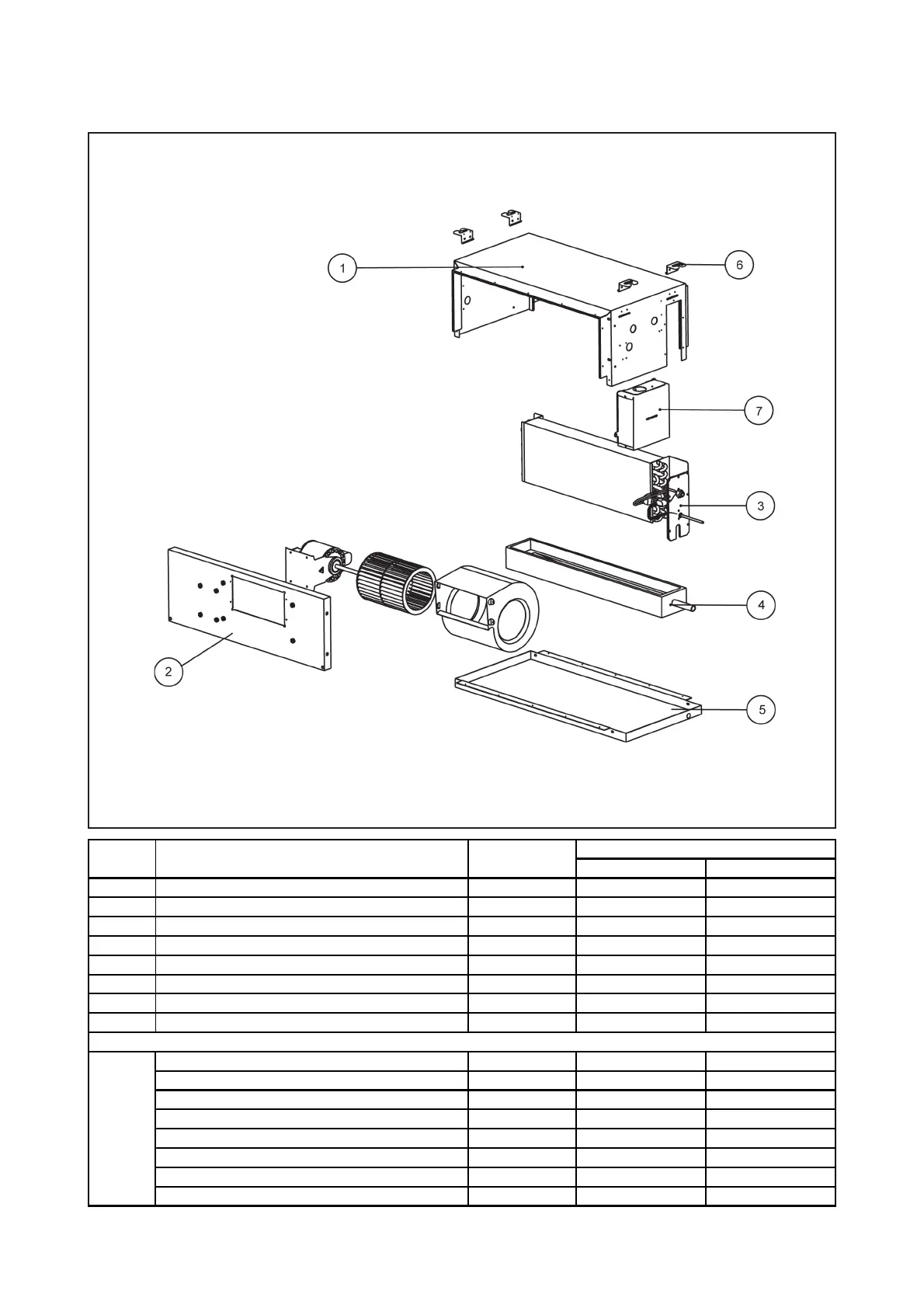

1 CABINET (U), CC10C/10CR R01013034004
√√
2 ASSY, FAN DECK, CC10C R50014032627
√√
3 ASSY, COIL MAIN 5CC10C/CR R50024079383
√√
4 ASSY, DRAIN PAN CC10C R50063033907
√√
5 ASSY, SECONDARY DRAIN PAN (P),10C/10CR R50015035045
√√
6 HANGER CC10-60C/CW R01014032372
√√
7 CONTROL MODULE, 09A EC VA3 CCX 10 R04084086597
√
CONTROL MODULE, 09A AP VA3 CCX 10 R04084086601
√
MOTOR, MCC10C-501 30W HONGLU R03039004896
√√
AIR FILTER, SARANET 195x560mm CC10C R03084037810
√√
ASSY, BLOWER W&H DH16-20-L R50039005356
√√
ASSY, DRAIN PIPE JOINT,CC10-25C/CR R50094035451
√√
HANDSET, WIRED SLM3 EC 7M ACSON N/S R04089011808
√
HANDSET, WIRED SLM3 AP 7M CC ACSON N/S R04089011752
√
THERMISTER HOLDER WM/CC R12014000432
√√
CLIP, COIL SENSOR (6mm) R07054021183
√√
Parts Not In The Diagram
No DESCRIPTION PART NUMBER
RELATED MODEL

ascon A5LCX 10 C Specifications
