ascon M5 Series User Manual

275.0 Menu
274.8s.p.
l=r
l=r
loc
l=r
reM
loc
s.sel
s.sel
none
s.sel
s.s.p.1
s.s.p.2
31

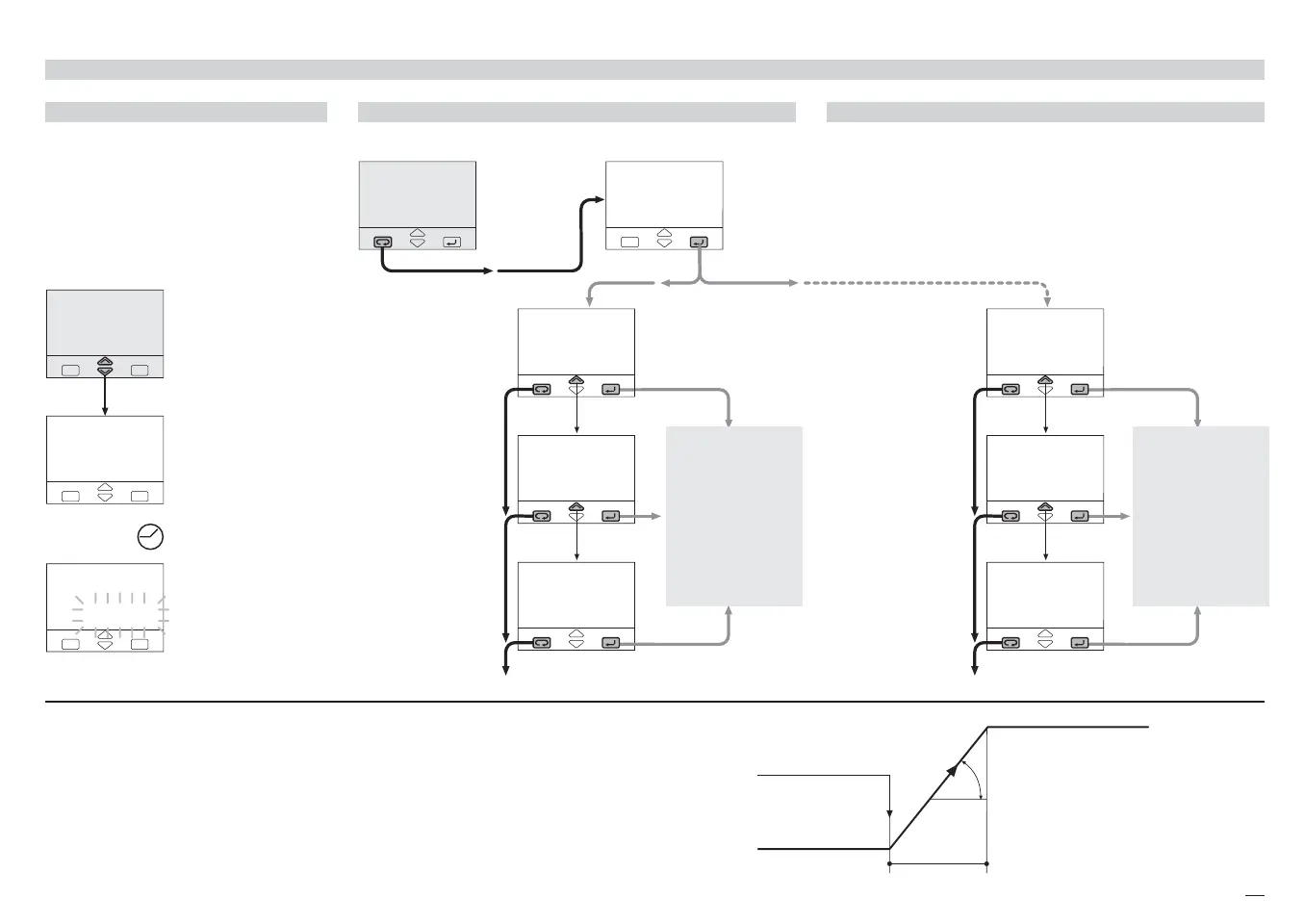

6 - Commands
6.1 KEYBOARD COMMANDS
A. SETPOINT MODIFICATION
The Setpoint is directly modified with
the $% keys.
Once entered, the new value is checked
and becomes operating after 2 seconds.
The end of this phase is flagged by flash-
ing momentarily the display with SP.
B. LOCAL/REMOTE C. STORED SETPOINTS SELECTION
The Setpoint is directly modified with the $% keys.
Once entered, the new value is checked and becomes
operating after 2 seconds. This phase is flagged by flash-
ing momentarily the display with SP.
Note: When the Setpoint value is changed, the entered value is reached with a maximum
rate set by the ramp up
àsl .u and ramp down, àsl. d parameter. This applies to
all the models and in all the operating modes.
It is suggested to set
àsl. u and àsl. d to Offwhen the remote Setpoint is operating.
The entered Setpoint is defined as target Setpoint. It is displayed in the function menu at
the parameter
t.=s.p.
If the slope parameter is set to zero the Setpoint variation occurs instantaneously.
275.0
274.8
350.0
274.8
350.0
274.8
Operator
mode
Example of Setpoint modi-
fication from 275 to 350
Modified
Setpoint value
Flash momentarily the SP
value to confirm that it
has become operating.
back to the operator mode
Operator
mode
Setpoint
menu
Local/remote
selection
Select
remote
Select
local
Stored
Setpoint display
1st stored
Setpoint
2nd stored
Setpoint
The selected Setpoint
becomes operating
pressing the
è key.
when in remote, the
green led is on
Ü
The selected Setpoint
becomes operating
pressing the
è key.
The two
âä
leds flag the Setpoint
operating.
after 2 seconds
Back to the operator mode Back to the operator mode
Press until
Setpoint change
Target Setpoint = 350°C
t
t = 10 minutes
àsI. u = 10 digit/minutes
Example
Initial Setpoint
= 250°C
M5 UK•ed4 10-12-2004 16:20 Pagina 31
