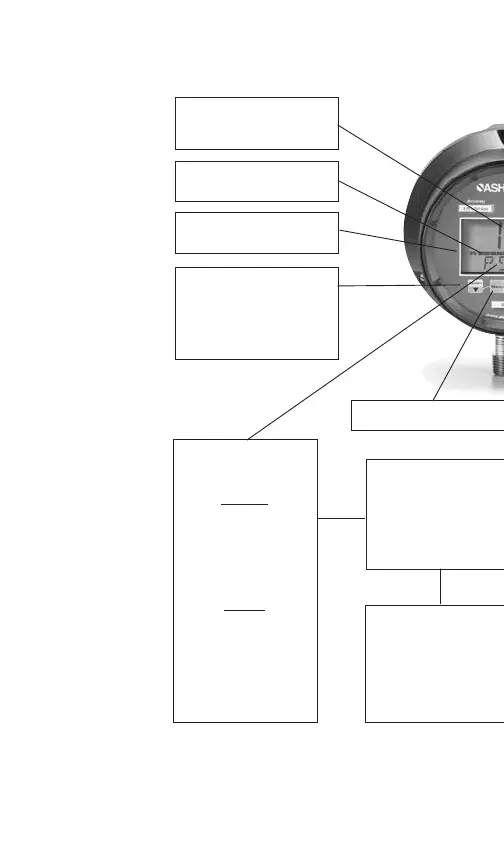

Ashcroft 2074 - QUICK REFERENCE; Pressure Unit Selection; Update Rate Settings; Backlite Operation

– 4–
Bar graph
% of full scale
Flashing display when unit
pressured below zero
Press to indicate minimum
or maximum pressure
gauge has measured
Press again to return to
pressure units
Press to read menu
UNITS (Pressure)
ENGLISH
INHG
PSI*
INH2O
@ 4°C, 20°C, 60°F
FTW
FTSW
METRIC
BAR
MBAR
KPA
CMH2O
KG/CM2
UPDATE RATE
(Pressure measurement
per second)
10x (100 MS)*
5x (200 MS)
2x (500 MS)
1x (1 Sec)
BACKLITE
(Off options)
Never
2 SEC
5 SEC*
15 MIN
30 MIN
.88˝ high digital display (4
1
⁄2˝ case)
.60 high digital display(3˝ case)
QUICK REFE
