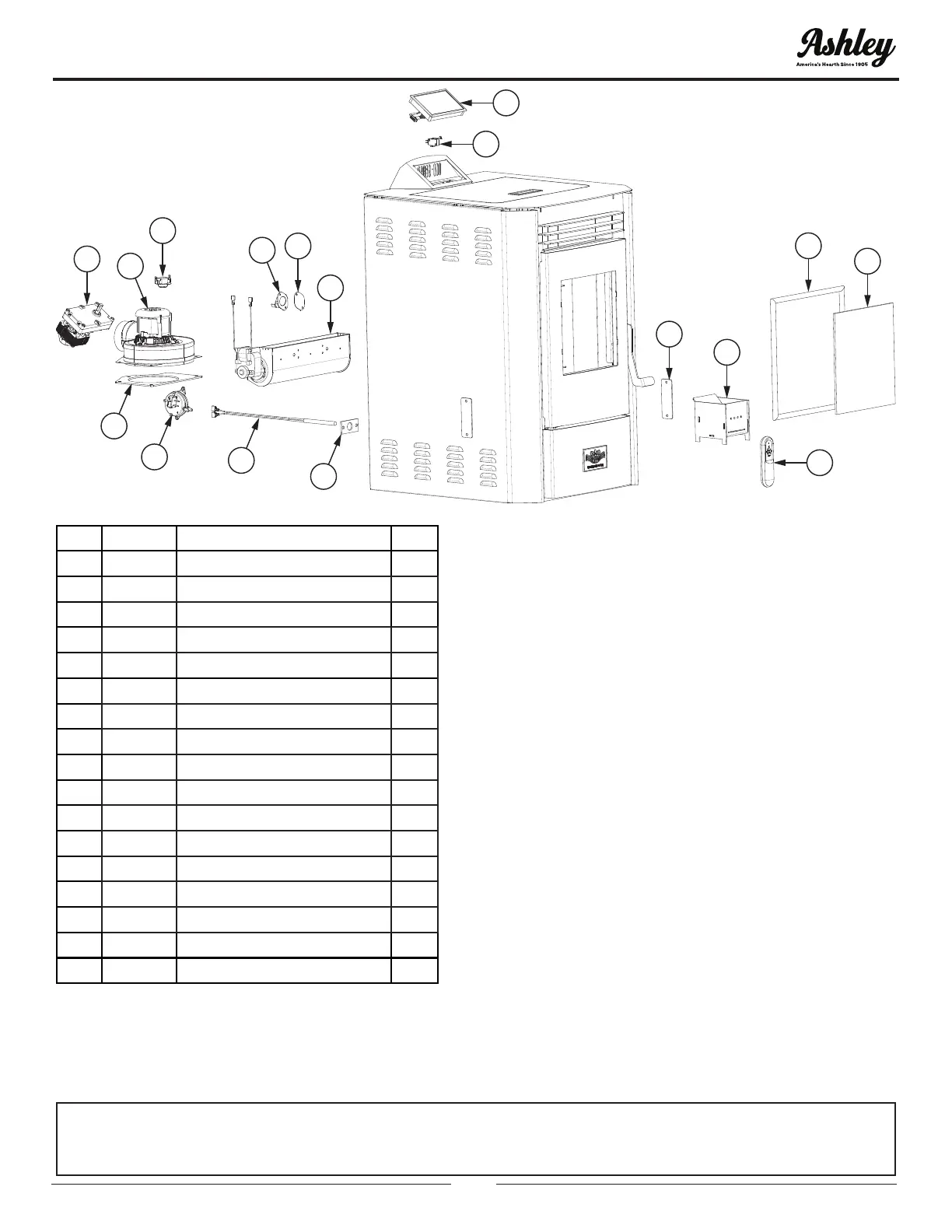

REPAIR PARTS
4
5
3
7
9
8
11
13
10
16
15
14
17
12
6
2
1
To order parts:
Call 1-800-750-2723 Ext 5051 or
Email to: parts@usstove.com
Key Part # Description Qty
1 892667 Door Glass 1
2 88066 3/4” Round Rope Gasket 46”
3 80780 IR Remote 1
4 69762 Burnpot 1
5 892668 Ash Clean-Out Covers 2
6 892199 Housing, PCBA Controller 1
7 80491 Microswitch 1
8 80709 Room Blower 1
9 88347 T-Disc, Room Air Gasket 2
10 80601 T-Disc, Room Air 1
11 80599 T-Disc, Exhaust 1
12 80602 Exhaust Blower 1
13 80488 Drive Motor (1.5 RPM CCW) 1
14 88166 Gasket, Exhaust Blower 1
15 80549 Vacuum Switch 1
16 80869 Ceramic Ignitor 1
17 88118 Ignitor Flange Gasket 1
IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS
PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY
COMPONENTS WILL VOID THE WARRANTY.
