-26-
© 2021 United States Stove Company
1.25A 250V
FUSE
7.5A 250V
FUSE
CORRECT WRONG
Ensure the wires are connected
to the bottom two prongs of the
hopper switch as shown.

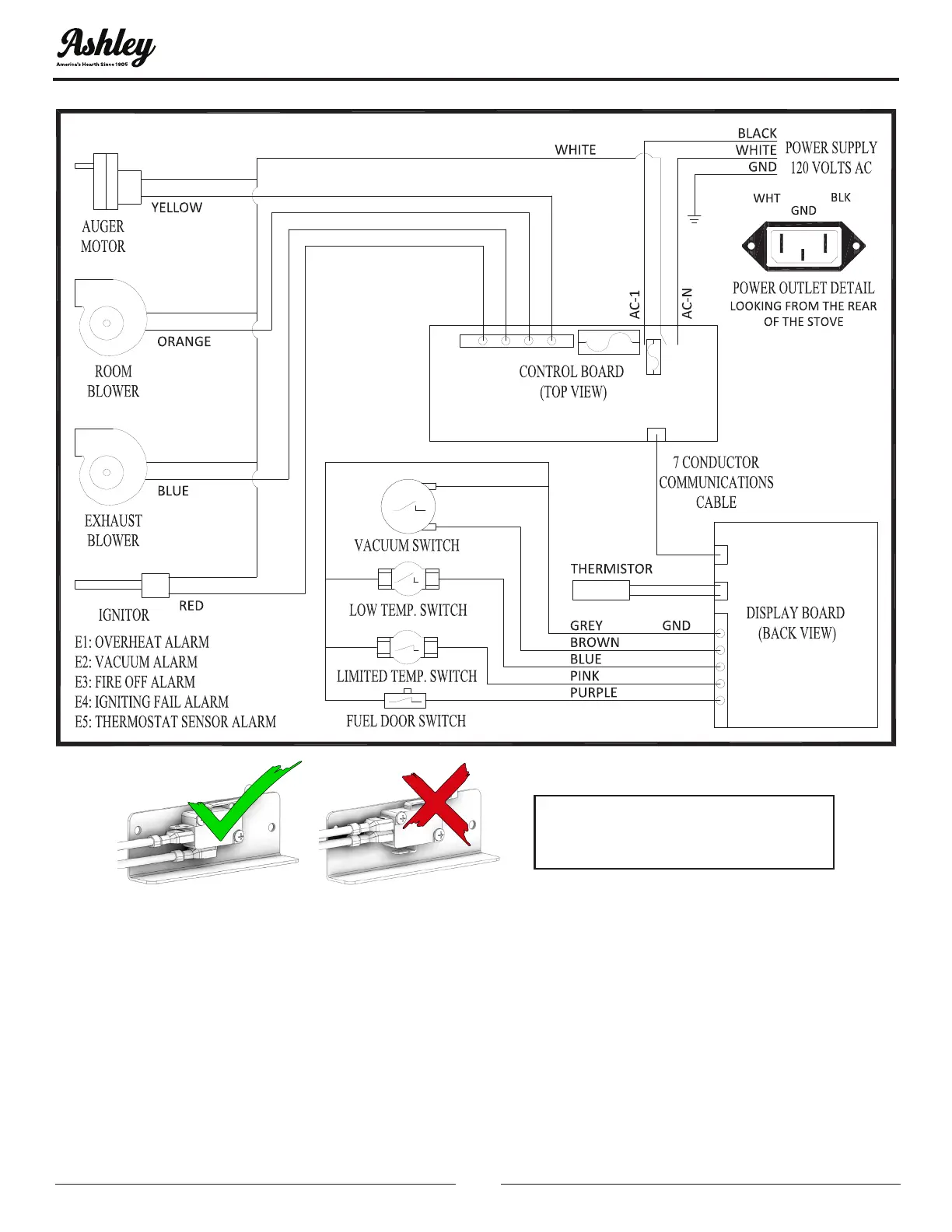

WIRING DIAGRAM
