-4-
© 2021 United States Stove Company
ASSEMBLY INSTRUCTIONS
FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

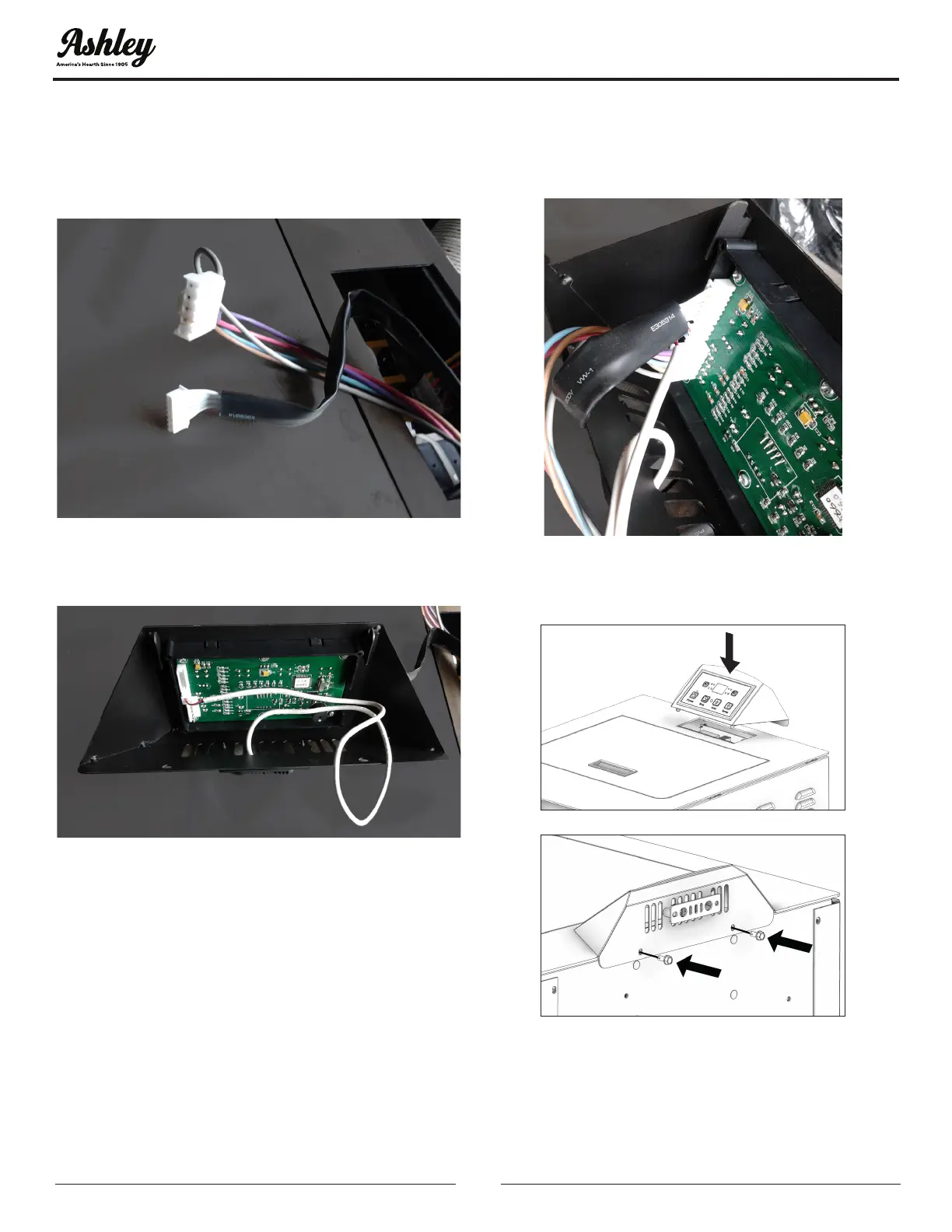

1. Pull the factory installed wires out of the top of
the stove. There will be two wire harnesses, as
shown.
2. Unpack the top mount controls and ensure that
the wiring harness shown is attached securely.
3. Connect the factory installed wiring harnesses to
the control panel as shown.
4. Secure the control panel to the top of the stove
with two sheet metal screws.
