ASSEMBLY INSTRUCTIONS
For Customer Service Call: 800-750-2723 Ext 5050

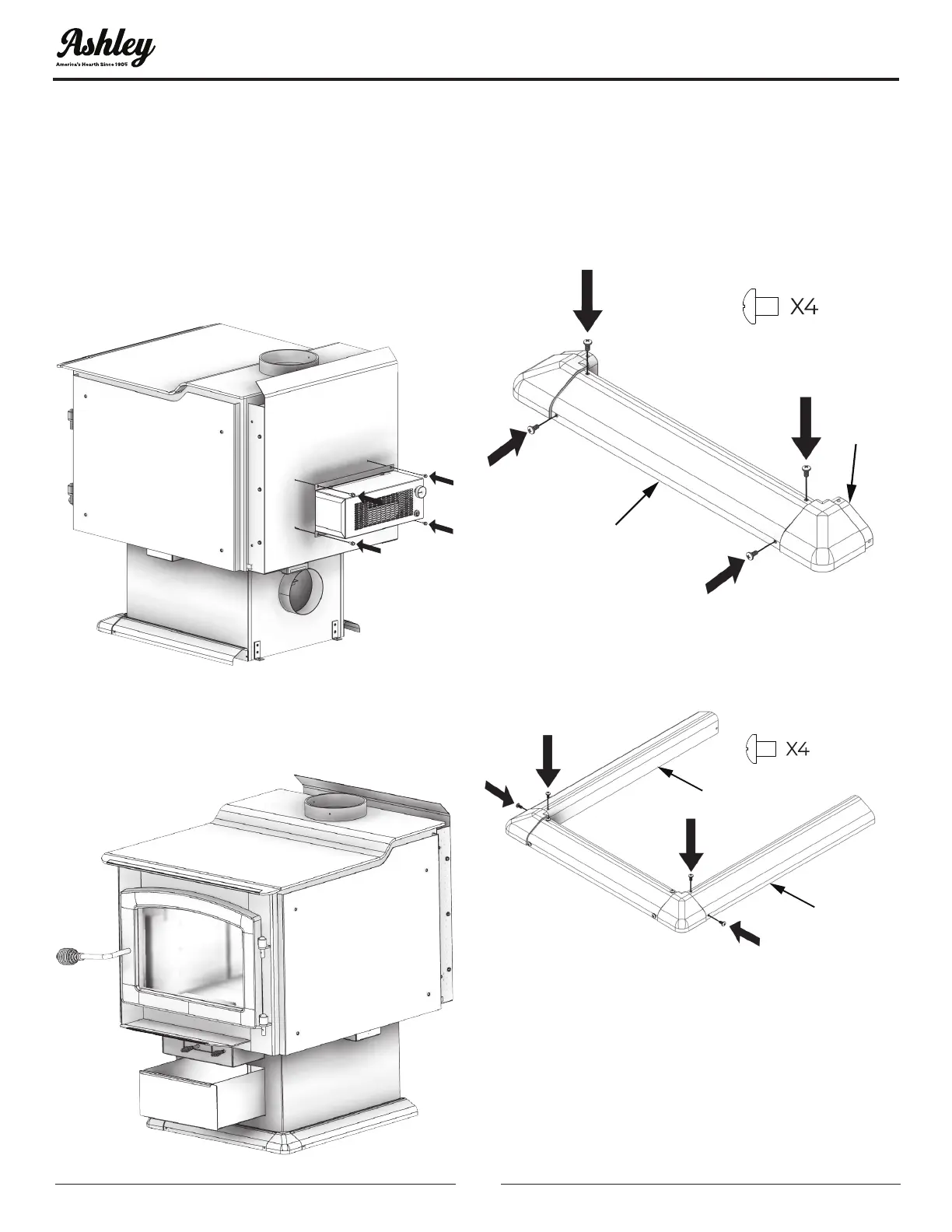

BLOWER ASSEMBLY
The blower assembly must be disconnected from
the source of electrical supply before attempting
the installation. The blower assembly is intended
for use only with a stove that is marked to indicate
such use. Do not route the supply cord near or
across hot surfaces! Fix the assembly to the back of
the stove with the four screws provided.
ASH PAN
The ash pan is located below the rebox.
PEDESTAL BASE ASSEMBLY
1. Assemble the pedestal base skirting. Attach
two corner pieces (A) to the center section (B)
of skirting and secure with four (4) truss head
screws.
B
A
2. Attach the side skirting sections (C & D) to the
corner pieces and secure with four (4) truss
head screws.
C
D
