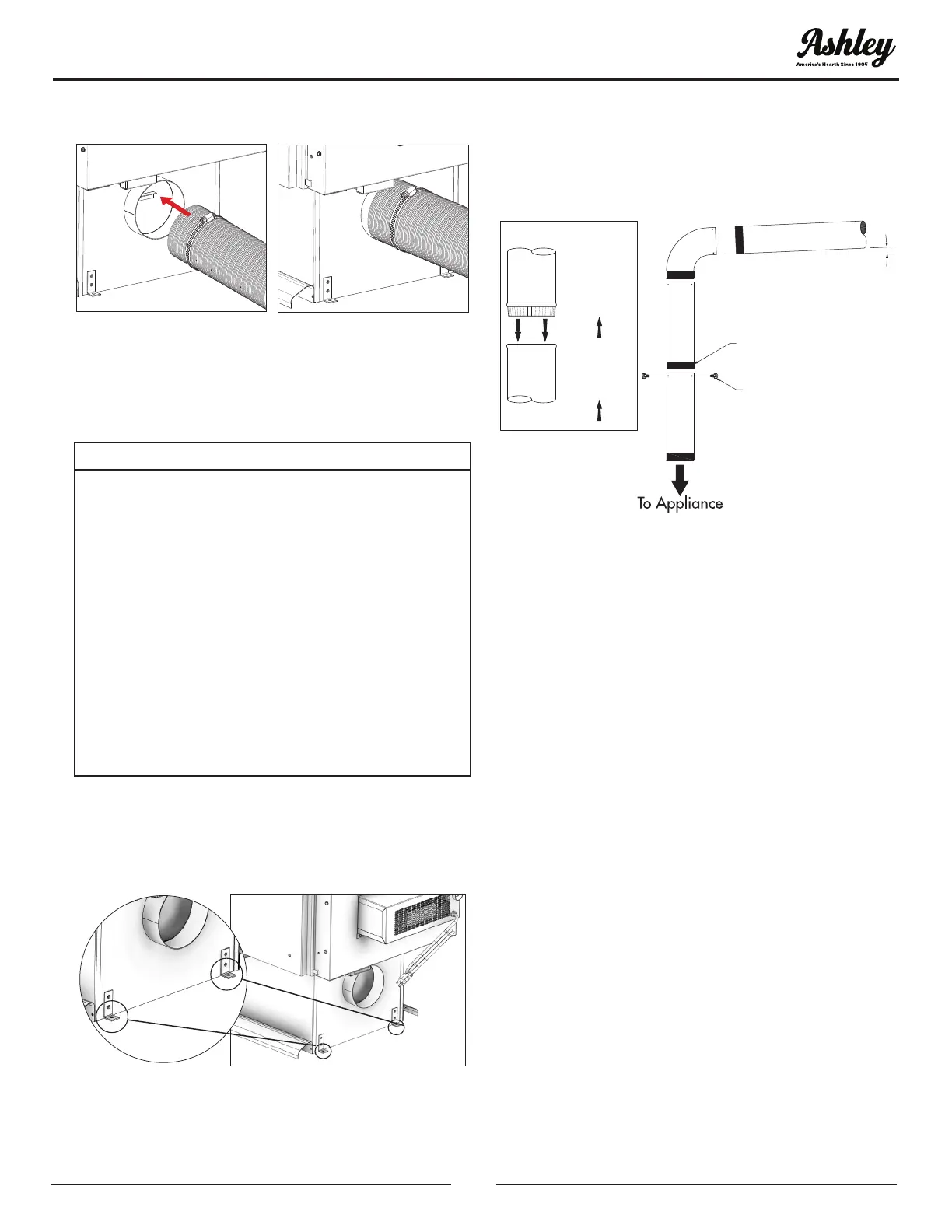

INSTALLATION
6. A ventilation system is installed in the house.
Slide the hose clamp over the aluminium ex pipe.
Then slide the ex pipe over the air intake tube of
the stove. Next tighten the hose clamp over the end
of the aluminium ex hose.
FOR USE IN MOBILE HOMES (U.S. ONLY)
• WARNING! DO NOT INSTALL IN SLEEPING
ROOM.
• CAUTION! THE STRUCTURAL INTEGRITY
OF THE MOBILE HOME FLOOR, WALL, AND
CEILING/ROOF MUST BE MAINTAINED.
• INSTALL IN ACCORDANCE WITH 24 CFR,
PART 3280 (HUD).
• USE A FACTORY BUILT CHIMNEY THAT
COMPLIES WITH UL 103 STANDARDS;
THEREFORE IT MUST BE A TYPE HT (2100°F).
• USE A SPARK ARRESTER.
• THE STOVE MUST BE ATTACHED TO THE
STRUCTURE OF THE MOBILE HOME.
SECURE APPLIANCE TO THE FLOOR
Use the designated holes to secure the unit to the
oor.
In addition to the previously detailed installation
requirements, the heater must be electrically
grounded to the steel chassis of the mobile home
with 8 GA copper wire using a serrated or star
washer to penetrate paint or protective coating to
ensure grounding.
3 screws
Flow
Direction
of Flue
Gases
Install
crimped
end
towards
stove.
Male Part Downwards
1/4” slope per foot
The chimney connector and chimney must have
the same diameter as the stove outlet (6”). If this
is not the case, we recommend you contact your
dealer to ensure there will be no problem with the
draft. The stovepipe must be made of aluminized
or cold roll steel and have a minimum thickness
of 0.021” or 0.53 mm. It is strictly forbidden to
use galvanized steel. The smoke pipe should be
assembled to promote the male section (crimped
end) of the pipe to be faced down. Attach each
section to another with three metal screws spaced
an equal distance apart. The pipe must be short
and straight. All sections installed horizontally
must slope at least 1/4 inch per foot, with the
upper end of the section toward the chimney. Any
installation with a horizontal run of chimney pipe
must conform to NFPA 211. To ensure a good draft,
the total length of the coupling pipe should never
exceed 8’ to 10’ (2.4m to 3.04m). Except for cases of
vertical installation, in a cathedral-roof style where
the smoke exhaust system can be much longer
and connected without problem to the chimney
at the ceiling of the room. There should never be
more than two 90 degrees elbows in the smoke
exhaust system. The installation of a “barometric
draft stabilizer” (replace register) on a smoke
exhaust system is prohibited. Furthermore, the
installation of a draft damper is not recommended.
With a controlled combustion wood stove, the draft
is regulated upon intake of the combustion air in
the stove and not at the exhaust.
