FREQUENCY RESPONSE:
100Hz - 20kHz
RATED POWER:
240W
RATED IMPEDANCE:
8Ω/32Ω
MADE IN CHINA
LINEAR COLUMN LOUDSPEAKER
INPUT
IS SERIES
3.8
8Ω
32Ω
Contents
Back Panel Connections ......................3
System Configurations
with Dual -impedance IS Series...........4
Other Typical Configurations ..............5
Ashly AquaControl (via AquaControl™)
and Protēa™ Presets for IS Speakers ... 7
Basic Loudspeaker Processing ............7
IS 2.8P Specifications ....................... 11
IS 3.8P Specifications
SP 12.1P Specifications .................... 16
IS-FW Joining Bracket Install ............. 17
IS-TWM Tilt Bracket Install ................ 18
IS-PM6B Tripod ................................. 18
Other IS Accessories ........................ 18
3
IS Series + SP 12.1P Operating Manual
IS 2.8P & IS 3.8P
■ 8 x 2-inch (IS 2.8P) and 8 x 3-inch (IS
3.8P) matched, high power handling
transducers with Neodymium magnet
structures and heat-resistant voice coils
■ Switchable 8 Ω / 32 Ω impedance allows
up to eight loudspeakers to be driven by
a single amplifier channel.
■ AquaControl™ and Protēa DSP presets
for selected Ashly power amplifiers and
DSP processors (see page 6 for listing)
■ 2-pole Euroblock connector, plus 2 x
¼-inch phone jacks (IS 2.8P)
4-pole Euroblock connector, plus 2 x
SpeakOn® Connectors (IS-3.8P)
■ High-strength and light aluminum
enclosure
■ Durable, chip-resistant polymer coating
■ Optional pole, tripod, and tilt or flush wall
mounts
SP 12.1P
■ 12-inch, high power handling (350 W)
low-frequency transducer with ferrite
magnet structure
■ 4-pole Euroblock terminal inputs
■ Neutrik® SpeakOn x 2 inputs
■ Internally-braced birch ply enclosure
■ Pole sockets on top and side
Thank you for choosing Ashly IS Series line
array column speakers (and hopefully our
matching subwoofer). We know that there are
many choices on the market today; so we have
worked hard to create column speakers that set
themselves apart from the rest.
Elevate or wall-mount a pair of IS 3.8P or IS
2.8P speakers on stands, add one or more
SP 12.1P subwoofers and you have a high-
fidelity, high-output system that’s perfect for
reception halls, small churches, mobile discos,
bars, coffee shops, and many other applications.
Before installation, check for any possible
shipping damage. Also, please read all of the
Safety and Operation Precautions on the
previous page.
Note that this Guide also covers IS-TWM Tilt
Wall Mount Bracket, IS-JP Joining Bracket, and
IS-FWM Flush Wall Mount Bracket.
Back Panel Connections
IS Series columns are designed for both
permanent and mobile applications. Both
models have Neutrik® connections. The IS
3.8P adds Neutric SpeakOn connectors; the IS
2.8P has ¼-inch TS jacks.

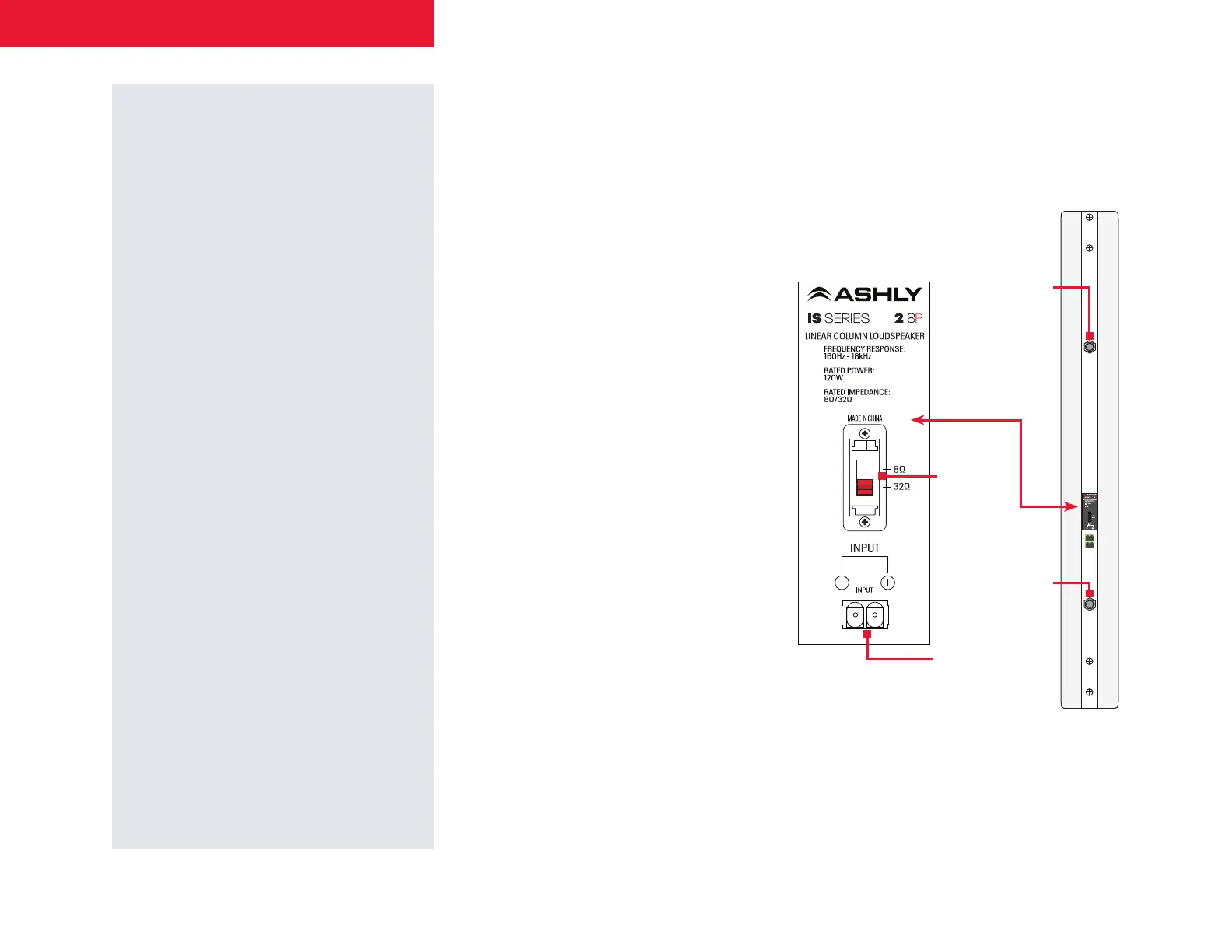

IS 2.8P
*
WARNING: When connecting the IS speaker,
do not under any circumstances plug outputs
from different amplifiers or amp channels into
more than one jack (any type on the speaker) at
the same time.
¼-inch TS jack can be
used as the IS 2.8P
input or a pass-through
to another IS 2.8P
*
8 Ω / 32 Ω
impedance
switch
¼-inch TS jack can be
used as the IS 2.8P
input or a pass-through
to another IS 2.8P
*
2-conductor
Euroblock terminal
connector
To Next Page
