Ashly IS Series User Manual

FREQUENCY RESPONSE:
100Hz - 20kHz
RATED POWER:
240W
RATED IMPEDANCE:
8Ω/32Ω
MADE IN CHINA
LINEAR COLUMN LOUDSPEAKER
INPUT
IS SERIES
3.8
8Ω
32Ω
CA 504 • 4 x 500 W @ 4 ΩAshly 4-channel amplifier
CA 504
4 x 250 W
@ 8 Ω
4-channel
amplifier
Eight IS columns • 32 Ω setting @ 62.5 W each Eight IS columns • 32 Ω setting @ 62.5 W each
Eight IS columns • 32 Ω setting @ 62.5 W each Eight IS columns • 32 Ω setting @ 62.5 W each
Four IS columns
32 Ω setting
@ 65.2 W each
Four IS columns
32 Ω setting
@ 62.5 W each
Four IS columns
32 Ω setting
@ 65.25 W each
Four IS columns
32 Ω setting
@ 65.2 W each
+
+
– –
+ –
+– + –
+– + –
+– + –
+ +
– –+ +– –
+– + –
+ –
+ –
+–
+–
+ –
+ –
Ashly 2-ch. Power Amplifier
Ashly 2-ch. Power Amplifier
Ashly 2-ch. Power Amplifier
Ashly Power Amplifier
Bridged Mode
8 Ω
Ashly 4-ch. Power Amplifier
2 channels @ 8 Ω, 2 -channels Bridge Mode (sub)
Ashly 2-ch. Power Amplifier
Each channel delivers power @ 4 Ω
8 Ω
8 Ω*
Ashly 4-ch. Power Amplifier
Each channel delivers power @ 8 Ω
8 Ω
Ashly 2-ch. Power Amplifier
Amp running at 4 Ω per channel
8 Ω
Ashly 4-ch.
Power
Amplifier
8 Ω
32 Ω
+
+
– –
+ –
+– + –
+– + –
+– + –
+ +
– –+ +– –
+– + –
+ –
+ –
+–
+–
+ –
+ –
Ashly 2-ch. Power Amplifier
Ashly 2-ch. Power Amplifier
Ashly 2-ch. Power Amplifier
Ashly Power Amplifier
Bridged Mode
8 Ω
Ashly 4-ch. Power Amplifier
2 channels @ 8 Ω, 2 -channels Bridge Mode (sub)
Ashly 2-ch. Power Amplifier
Each channel delivers power @ 4 Ω
8 Ω
8 Ω*
Ashly 4-ch. Power Amplifier
Each channel delivers power @ 8 Ω
8 Ω
Ashly 2-ch. Power Amplifier
Amp running at 4 Ω per channel
8 Ω
Ashly 4-ch.
Power
Amplifier
8 Ω
32 Ω
4
IS Series + SP 12.1P Operating Manual
IS 3.8P SP 12.1P
Neutrik® SpeakOn
connectors can
be used as the
IS 3.8P input or
a pass-through to
another IS 3.8
*
8 Ω / 32 Ω
impedance
switch
4-conductor
Euroblock
terminal
connector
4-conductor
Euroblock
terminal
connector
Neutrik® SpeakOn
connector for
input from Power
Amplifer
*
WARNING: When
connecting the IS
speaker, do not under
any circumstances plug
outputs from different
amplifiers or amp channels
into more than one jack (any
type on the speaker) at the
same time.”.
Neutrik® for output
to other speakers or
subwoofers.

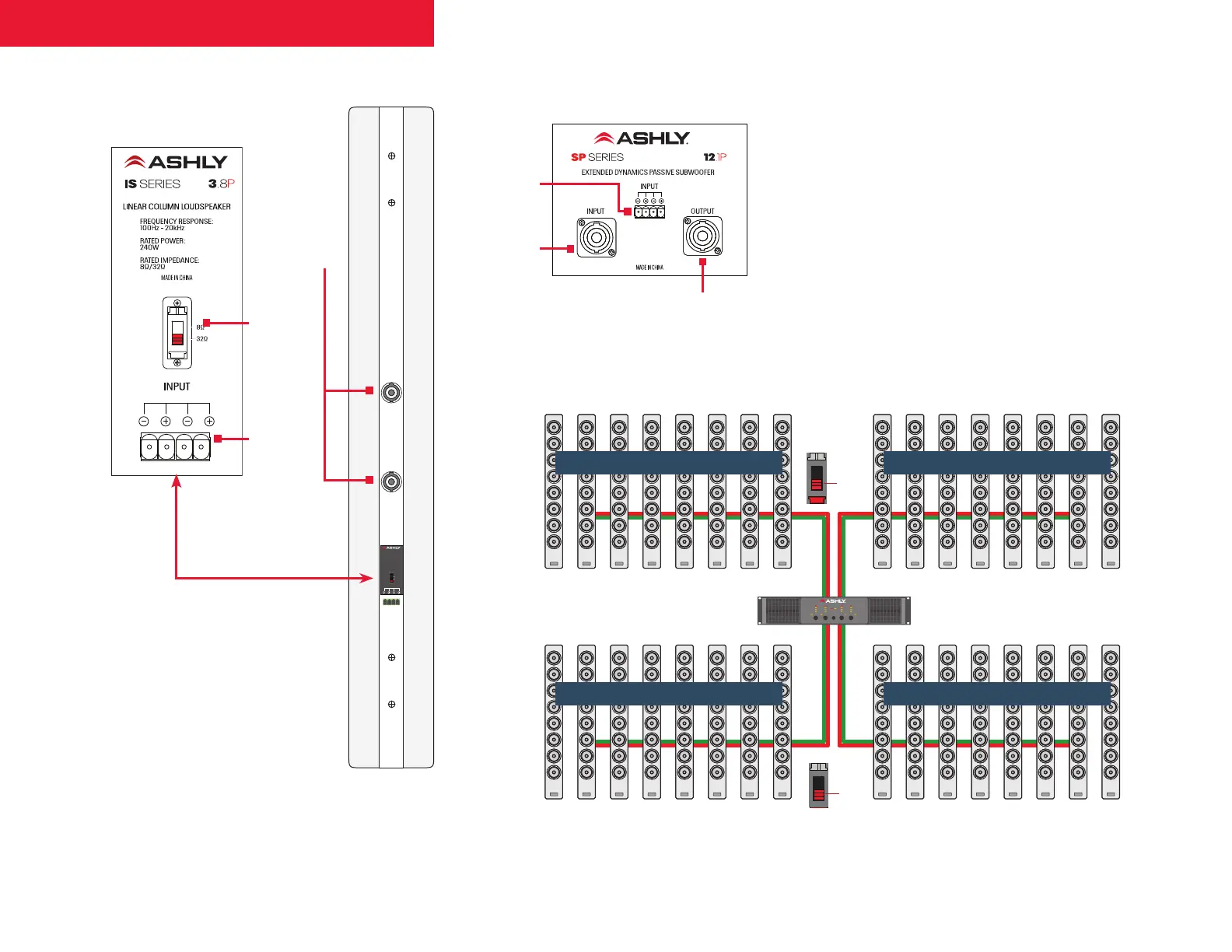

System configurations with
Dual-impedance IS Series
IS Series’ Hi-Z / Lo-Z design allows more
connection options than typical single-
impedance column speakers.
In 8 Ω mode, IS columns are ideal
for typical low-Z and live performance
applications.
However, switching IS columns to 32 Ω lets
one Ashly 4-channel amplifier drive up to 32
individual IS 2.8P or IS 3.8P speakers!
The example below shows 32 IS columns
driven with 62.5 watts each via a 4 x 500-
watt amplifier.

Ashly IS Series Specifications

General

Brand	Ashly
Model	IS Series
Category	Speaker System
Language	English
