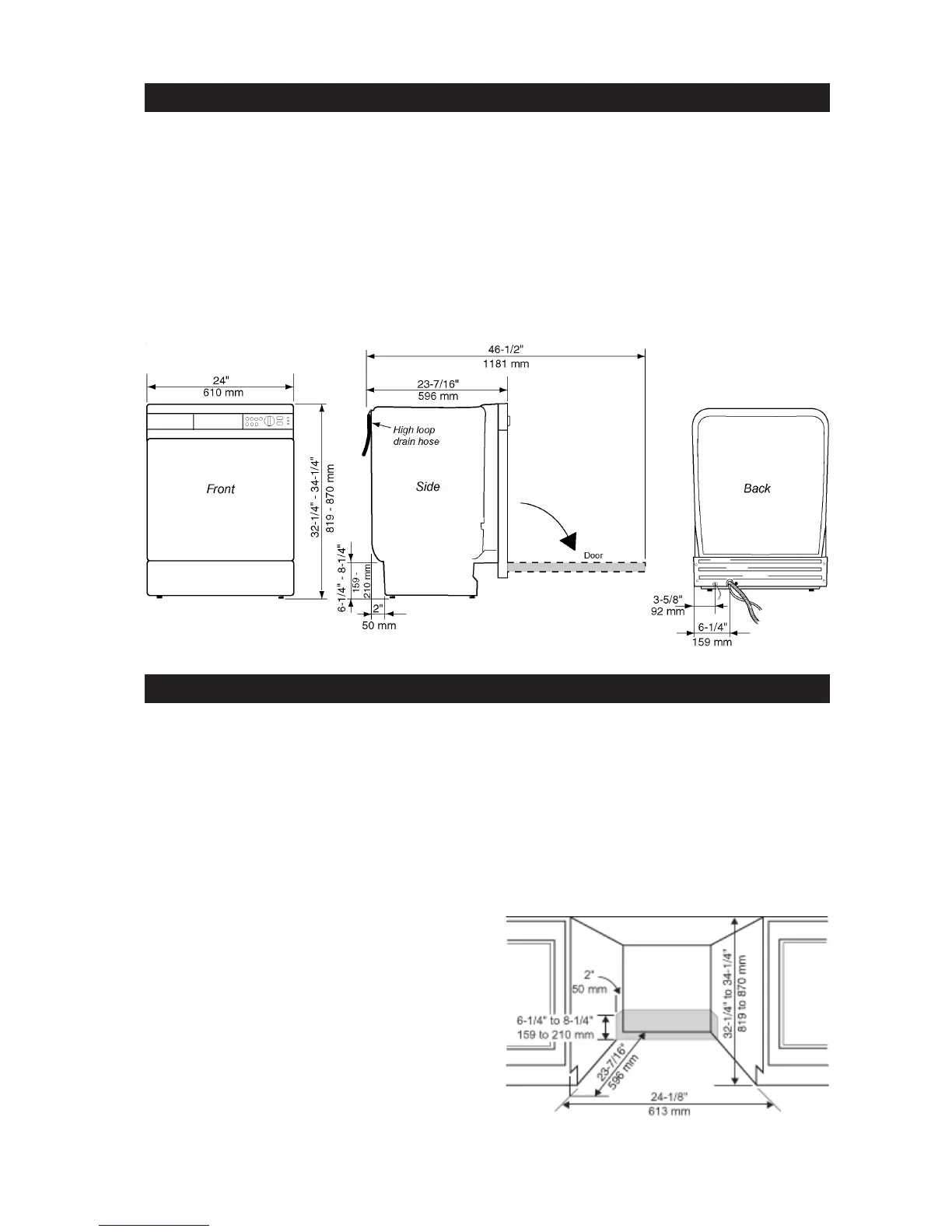

UNIT DIMENSIONS
US Metric
Measurements Measurements
Height 32-1/4"–34-1/4" 819–870 mm
Width *24" 610 mm
Depth 23-7/16" 596 mm
Weight 104 lb 48 kg
DIMENSIONS
Model D1976CSTM is 23-5/8” (600 mm) wide. See
page 11 for details.
*
The best place for your dishwasher is in the kitchen
near the sink. This makes it easier to connect the water
and drain supply lines.
A built-in dishwasher must be enclosed on the top,
both sides and the back.
The electrical and water supplies should enter through
the area indicated by the shading on the illustration at
right. They should come through the right side of the
machine, a maximum of 2” (50 mm) from the back wall
and 6-1/4” to 8-1/4” (159 to 210 mm) from the floor,
depending on the underneath cabinet height.
Access holes must be round and smooth, and they
should be 1-1/2” to 2” (38 to 50 mm) in diameter.
EUROPEAN INSTALLATIONS
The kick plate supplied with your dishwasher fits a 24"
(610 mm) opening. When using European standard
installation, a 23-1/2” (597 mm) wide toe kick is available
from your ASKO dealer. (Part numbers: White=8057528-
0; Black=8057528-29.
For a 6” toe kick installation, you will need an extension
toe kick piece. (Part numbers: White=8070121-0;
Black=8070121-29)
PREPARING THE LOCATION
CABINET OPENING
US Metric
Measurements Measurements
Height 32-1/4"–34-1/4" 819–870 mm
Width* 24-1/8”" 613 mm
Depth 23-7/16" 596 mm
The opening width for Model D1976CSTM is 23-3/4”
(603 mm) wide. See page 11 for details.
*
