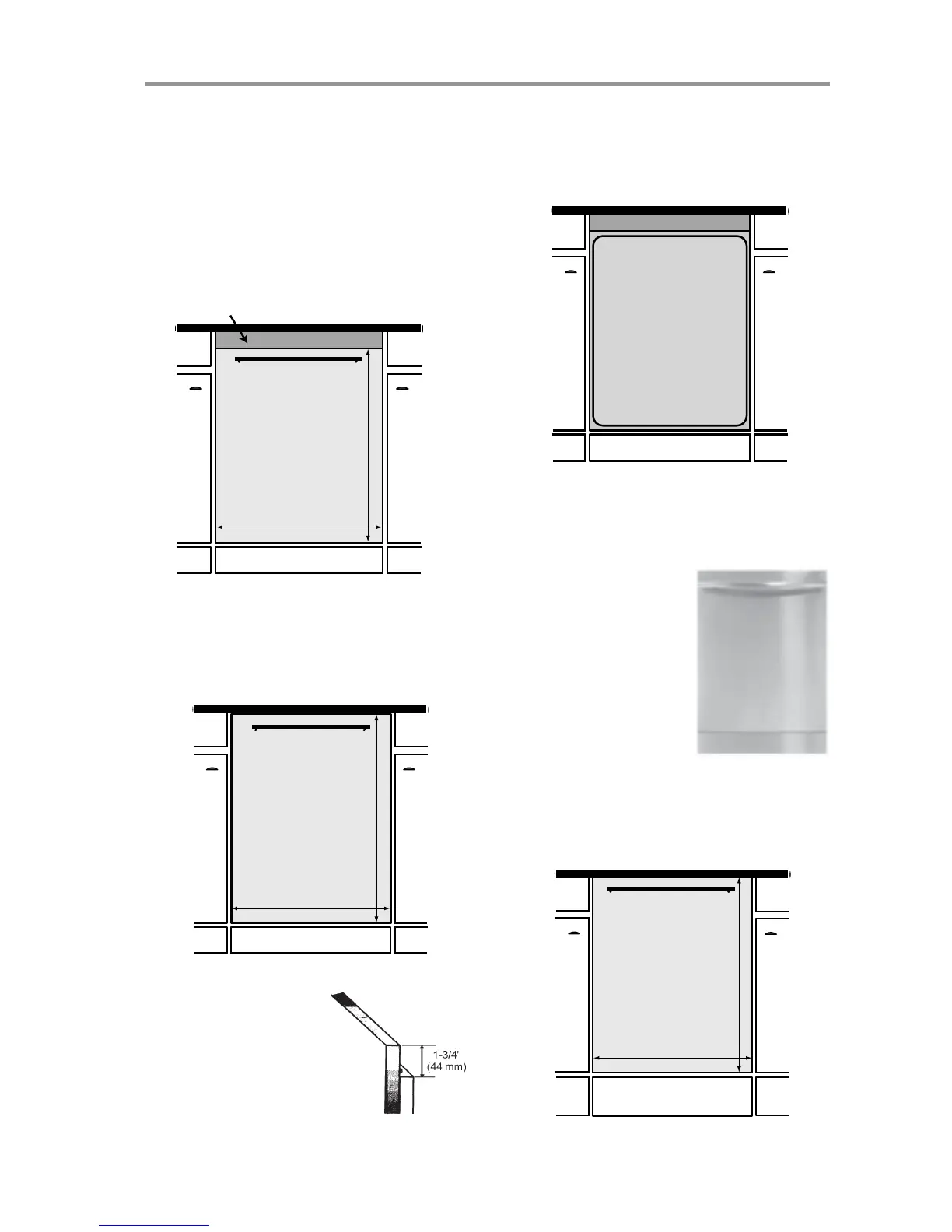

Custom panels the same height as the
dishwasher door
If the custom panel is the same height as the
dishwasher door, a 2” (51 mm) decorative fill strip or
pull-out cutting board must be used to fill the area
between the panel and the counter top (as illustrated
below).
If you install the door panel to reach the cabinet top, we
recommend that you install a 2” fill strip between the
upper edge of the dishwasher and the counter to hide
the top of the dishwasher and further reduce water noise.
With this installation, the door
panel extends 1-3/4” inches
above the dishwasher control
panel, as illustrated.
Custom panels that extend to cabinet top
Another installation option for a 4” toe kick is to extend
the custom panel to the cabinet top (as illustrated
below), which eliminates the need for a decorative fill
strip.
CUSTCUST
CUSTCUST
CUST
OM POM P
OM POM P
OM P
ANEL INSTANEL INST
ANEL INSTANEL INST
ANEL INST
ALLAALLA
ALLAALLA
ALLA
TION OPTIONSTION OPTIONS
TION OPTIONSTION OPTIONS
TION OPTIONS
6-inc6-inc
6-inc6-inc
6-inc
h h
h h
h
TT
TT
T
oeoe
oeoe
oe
Kick InstallationsKick Installations
Kick InstallationsKick Installations
Kick Installations
For 6” toe kick installations, the decorative fill strips or
support strips are unnecessary.
A stainless steel fill strip is also available for this type of
installation (part number 8073869-95).
Panel extends from toe kick to cabinet top
4-inch toe kick
30-1/16"
764 mm
23-1/2"
597 mm
Panel extends from toe kick to cabinet top
6-inch toe kick
28-1/2"
724 mm
23-1/2"
597 mm
2-inch decorative fill strip or cutting board
4-inch toe kick
28-1/2"
724 mm
23-1/2"
597 mm
2-inch fill strip
4-inch toe kick
One-Piece Custom Door PanelOne-Piece Custom Door Panel
One-Piece Custom Door PanelOne-Piece Custom Door Panel
One-Piece Custom Door Panel
A one-piece custom door
panel with a curved handle
is now available for the FI
dishwashers. This door is
available in stainless steel
(as shown), black, and
white. To order this door
panel, contact your dealer.
These doors are designed
for 4” toe kick installations.
The part number for the 6-inch toe kicks are:
8073567-01 (white), 8073567-86 (black)
