Page 6
WARNING!
Before working on wiring for any
electrical appliance, be sure the electrical power
has been turned off at the breaker/fuse box.
WARNING!
Disconnect electrical power
supply and place a tag at the disconnect switch
indicating that you are working on the circuit.
WARNING!
Electrical and grounding
connections must comply with the applicable
portions of the national electrical code and/or
other local electrical codes.
This unit must be grounded to operate properly. It must
be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the
equipment-grounding terminal or lead of the appliance.
NOTE:Access holes should be 1-1/2” (38 mm) in
diameter with no sharp edges.

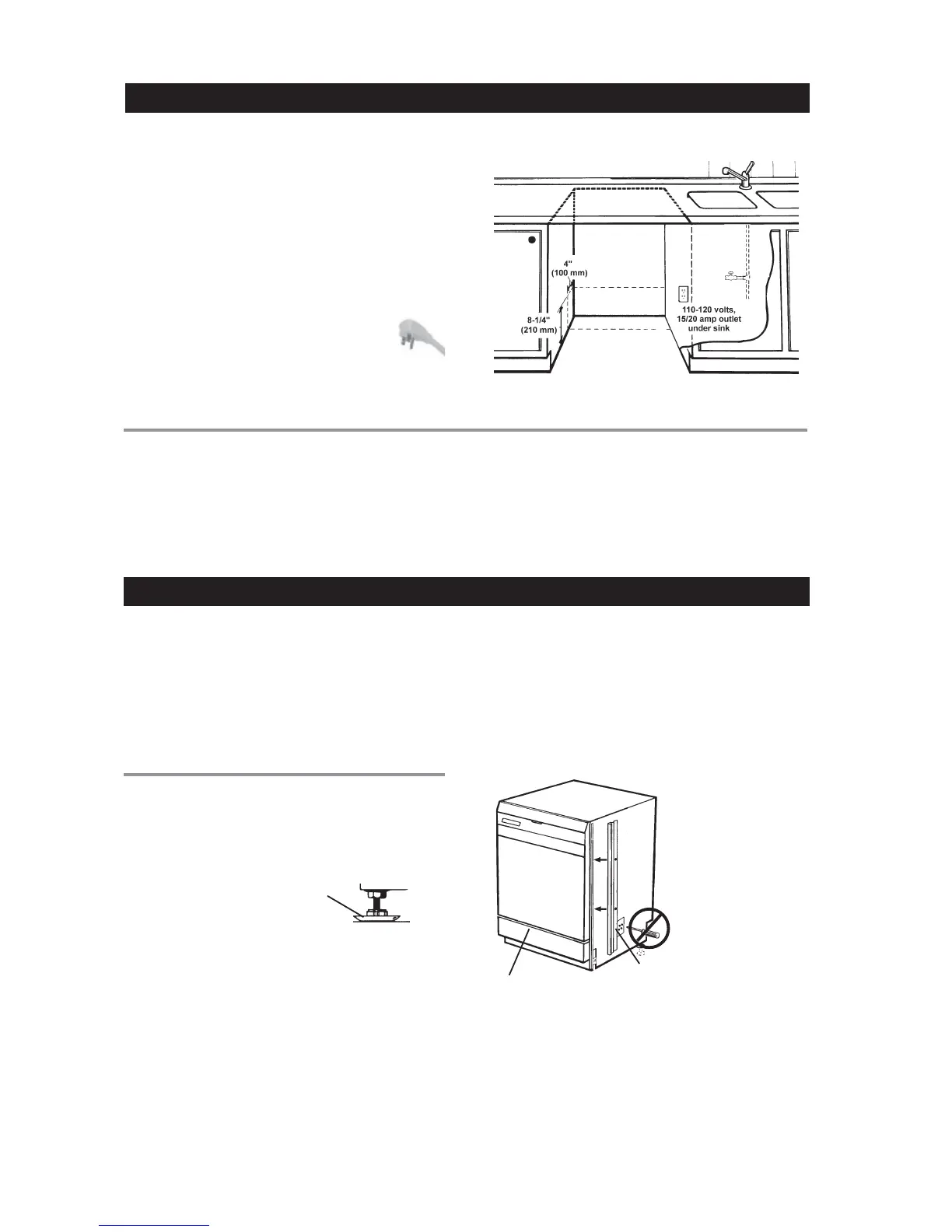

The dishwasher comes with an electrical
cord for 110-120 volts, 15/20 amp supplied.
This cord should be plugged into the 110-
120 volt outlet under the sink.
If the cord is not long enough, or if a hard-wire
installation is needed, follow instructions on page 8.
GRGR
GRGR
GR
OUNDING INSTROUNDING INSTR
OUNDING INSTROUNDING INSTR
OUNDING INSTR
UCTIONSUCTIONS
UCTIONSUCTIONS
UCTIONS
Damage to the dishwasher could occur if it is not
properly grounded.
WARNING!
Make sure the water supply line,
drain line and branch circuit wiring do not touch
any exposed terminals of dishwasher wiring.
At this point the styrofoam, plastic wrap, and the wood
pallet (base) should be removed from the dishwasher.
Now is an excellent time to inspect for any shipping
damage. Should you find any damage, you should
report it to your dealer or builder immediately.
Be sure to remove the toe kick and toe kick insulation
which are wrapped in heavy brown paper and packed
inside or on top of the dishwasher.
SLIDES FOR LEGSSLIDES FOR LEGS
SLIDES FOR LEGSSLIDES FOR LEGS
SLIDES FOR LEGS
The unit comes with white plastic slides for the legs to
protect the kitchen floor from being damaged when you
slide the unit into place. The slides simply snap onto
the bottom of the legs.
ELECTRICAL CONNECTIONSELECTRICAL CONNECTIONS
ELECTRICAL CONNECTIONSELECTRICAL CONNECTIONS
ELECTRICAL CONNECTIONS
PREPPREP
PREPPREP
PREP
ARING ARING
ARING ARING
ARING
THE DISHWTHE DISHW
THE DISHWTHE DISHW
THE DISHW
ASHER FOR INSTASHER FOR INST
ASHER FOR INSTASHER FOR INST
ASHER FOR INST
ALLAALLA
ALLAALLA
ALLA
TIONTION
TIONTION
TION
WARNING!
Do not use an extension cord for this appliance.
THE FILL STRIPSTHE FILL STRIPS
THE FILL STRIPSTHE FILL STRIPS
THE FILL STRIPS
All standard ASKO dishwashers have color-coded fill
strips to finish off the installation. To prevent damage to
the machine, be sure to remove the shipping screws
that secure the fill strips to the access panel. These
screws are to be thrown away. Do not replace them
into the access panel.
WARNING!
Do not screw the fill
strips back to the
lower access panel;
otherwise, the
machine will have to
be uninstalled if
service is necessary.
Lower Access Panel
Fill Strip
NOTE:
If the cabinet opening is European measure-
ment (23-1/2 inches [597 mm]), remove the ll
strips to fit the dishwasher into the opening.
Protective slides for legs
simply snap onto the bottom
of the legs.
