Asko D3531 Installation Instructions

Page 3

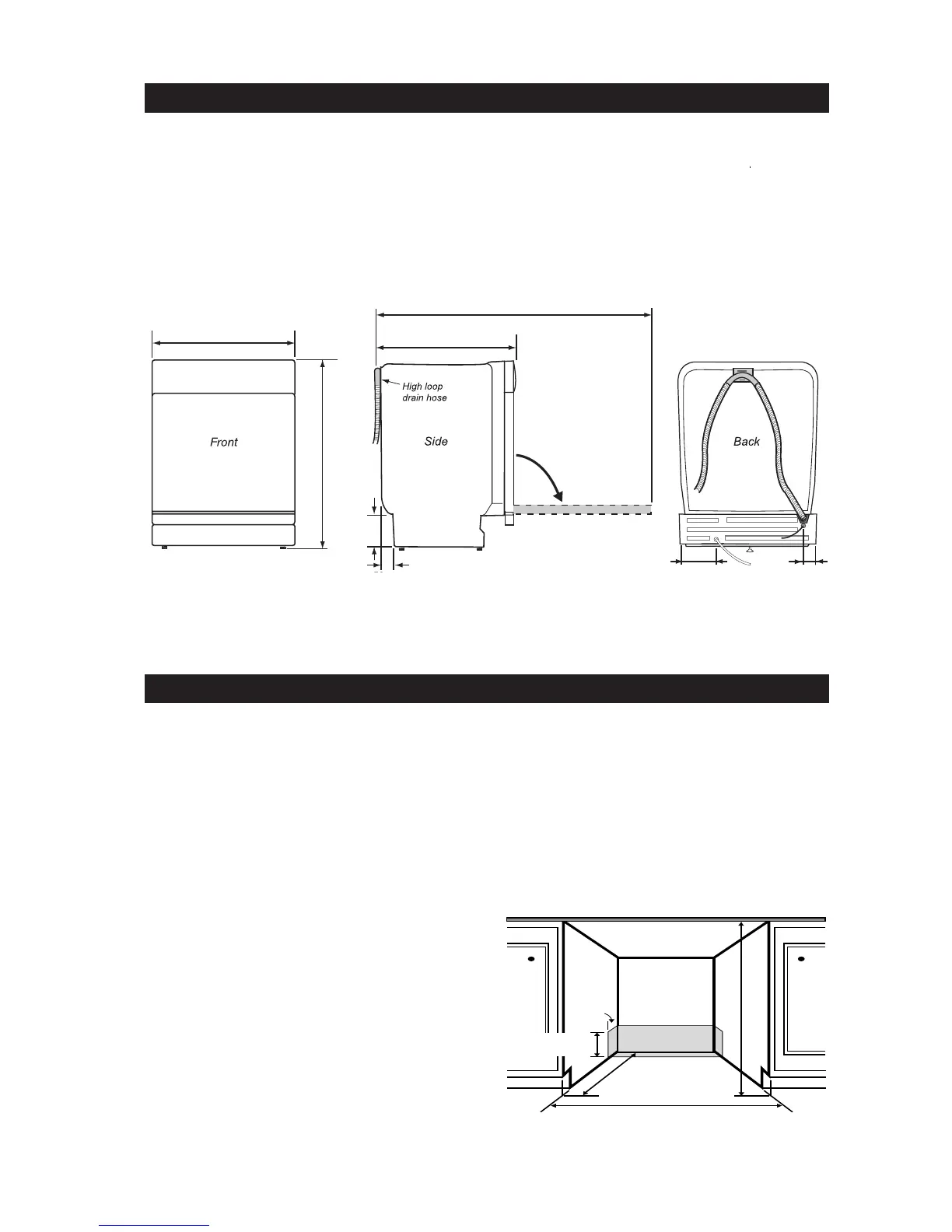

UNIT DIMENSIONSUNIT DIMENSIONS
UNIT DIMENSIONSUNIT DIMENSIONS
UNIT DIMENSIONS
US Metric
Measurements Measurements
Height 32-1/4"–35-1/2" 819–902 mm
Width *24" 610 mm
Depth 23-5/8" 600 mm
Weight 106 lb 48 kg
DIMENSIONSDIMENSIONS
DIMENSIONSDIMENSIONS
DIMENSIONS
The best place for your dishwasher is in the kitchen
near the sink. This makes it easier to connect the water
and drain supply lines.
A built-in dishwasher must be enclosed on the top, both
sides and the back.
The electrical and water supplies should enter through
the area indicated by the shading on the illustration at
right.
Access holes must be round and smooth, and they
should not be more than 1-1/2” (38 mm) in diameter.
EUREUR
EUREUR
EUR
OPEAN INSTOPEAN INST
OPEAN INSTOPEAN INST
OPEAN INST
ALLAALLA
ALLAALLA
ALLA
TIONSTIONS
TIONSTIONS
TIONS
The kick plate supplied with your dishwasher fits a 24"
(610 mm) opening. When using European standard
installation, a 23-1/2” (597 mm) wide toe kick is available
from your ASKO dealer. (Part numbers: White=8073566-
0; Black=8073566-86.)
For a 6” toe kick installation, the part numbers are:
White=8073567-0; Black=8073567-86.
PREPPREP
PREPPREP
PREP
ARING ARING
ARING ARING
ARING
THE LTHE L
THE LTHE L
THE L
OCAOCA
OCAOCA
OCA
TIONTION
TIONTION
TION
CABINET OPENINGCABINET OPENING
CABINET OPENINGCABINET OPENING
CABINET OPENING
US Metric
Measurements Measurements
Height 32-1/4"–35-1/2" 819–902 mm
Width* 24-1/8”" 613 mm
Depth 23-7/16" 596 mm
23-7/16"
596 mm
24-1/8
613 mm
32-1/4 to 35-1/2" minimum
819 to 902 mm
2"
50 mm
6-1/4" to 8-1/4"
159 to 210 mm
2-1/4"
57 mm
6-1/4"
159 mm
32-1/4 to 35-1/2"
819 to 902 mm
23-5/8"
600 mm
46-5/8"
1184 mm
Door
6-1/4" - 8-1/4"
159 - 210 mm
2"
50 mm
24"
610 mm
*Models D3251/3252FI and D3531/3532FI are 23-5/8”
wide.
Max 1½”
(38mm)
1½”
38mm
