The drainage hose may be extended by a maximum of 3 m (the
total length of the drainage hose must not exceed 4.5 m). Any
joins and connecting pipes must have an internal diameter of at
least 14 mm. However, the drainage hose should ideally be re-
placed with a new hose without joins.
No part of the drainage hose may be more than 950 mm above
the bottom of the dishwasher. The hose must not be routed direct-
ly to a floor drain or the like. In such cases, the hose can act as
a siphon and empty the dishwasher.
The hose must always discharge at least 350 mm above the
bottom of the machine.
Ensure that the drainage hose has no kinks.
NOTE!
The hose must be attached at the same height as the underside
of the sink.

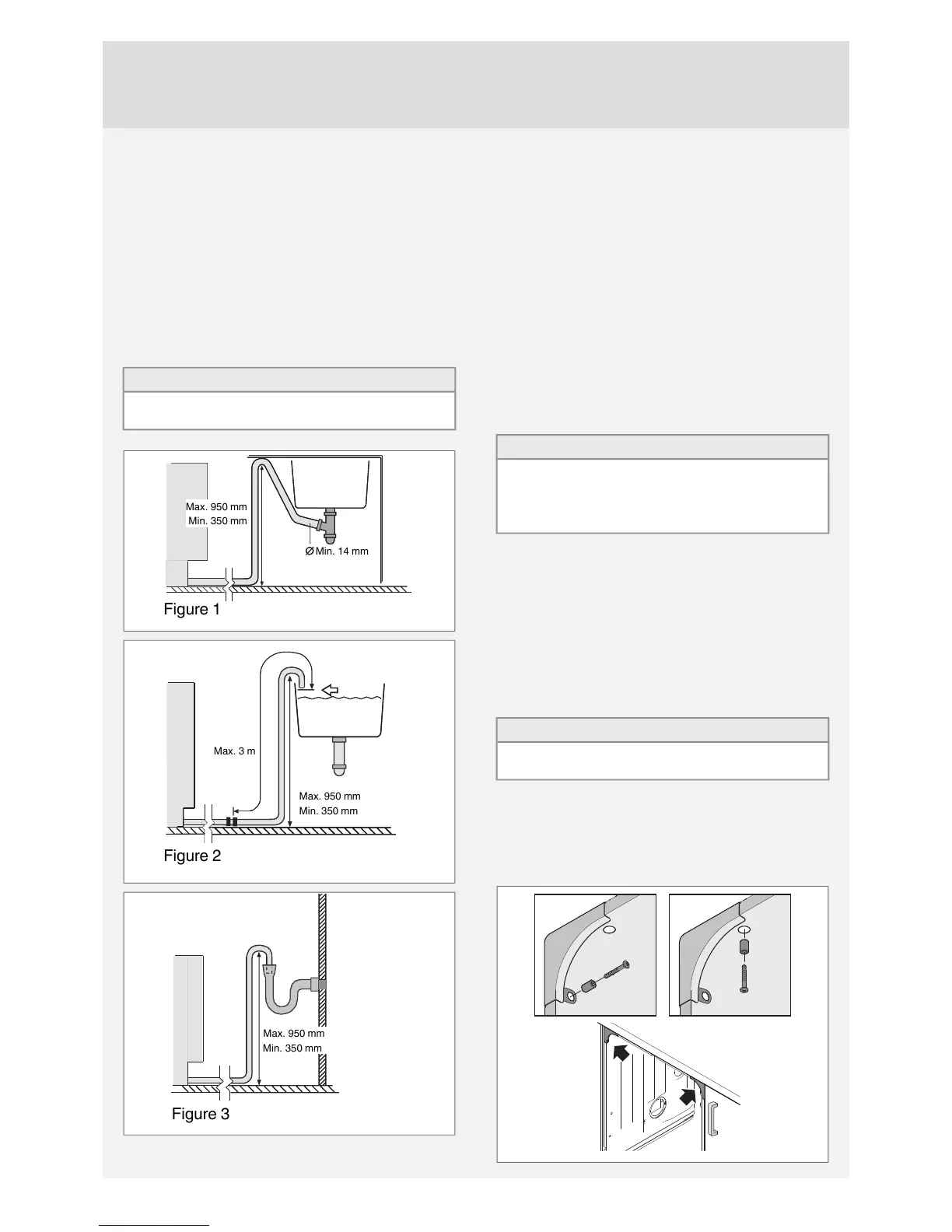

Max. 950 mm
Min. 350 mm
Min. 14 mm
Figure 1
Max. 950 mm
Min. 350 mm
Max. 3 m
Figure 2
Max. 950 mm
Min. 350 mm
Figure 3
Connection to water supply
Use only the supply hose provided with the dishwasher. Do not
re-use old hoses or other spare supply hoses.
The supply pipe must be fitted with a stopcock. The stopcock
must be easily accessible, so that the water can be shut off if the
dishwasher has to be moved.
Once the installation is complete, the stopcock should be opened
to allow the pressure to settle for a while and to check that all
connections are tight.
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 70 °C)...
If you use district heating, solar power or geothermal power to
heat your home. Choosing a hot water connection cuts program
times and reduces the dishwasher's electricity consumption.
NOTE!
Connecting a dishwasher to the water supply via certain types
of pressure limiting valves may restrict the water supply!
This may cause F:12 error code/ Water inlet fault to be dis-
played.
Electrical connection
Information about the electrical connection can be found on the
serial number plate This specification must match the electricity
supply.
Dishwashers fitted with a plug must be connected to an earthed
socket.
The electric wall socket must be placed outside of the installation
area to be easily accessible after installing the dishwasher. Do
not use an extension cord!
NOTE!
Repairs and maintenance must be carried out by a qualified
professional.
Screwing the dishwasher into place
(Applicable only to built-in dishwashers.)
After fastening the machine, check that the front feet still touch
the floor.
Alt. 2Alt. 1
20

Asko D5436 XL Specifications

General

Energy Rating	A++
Number of spray arms	3
Upper spray arm	Yes
Lower spray arm	Yes
Automatic programs	Yes
Rinse aid indicator	Yes
Salt indicator	Yes
Programs	Normal
