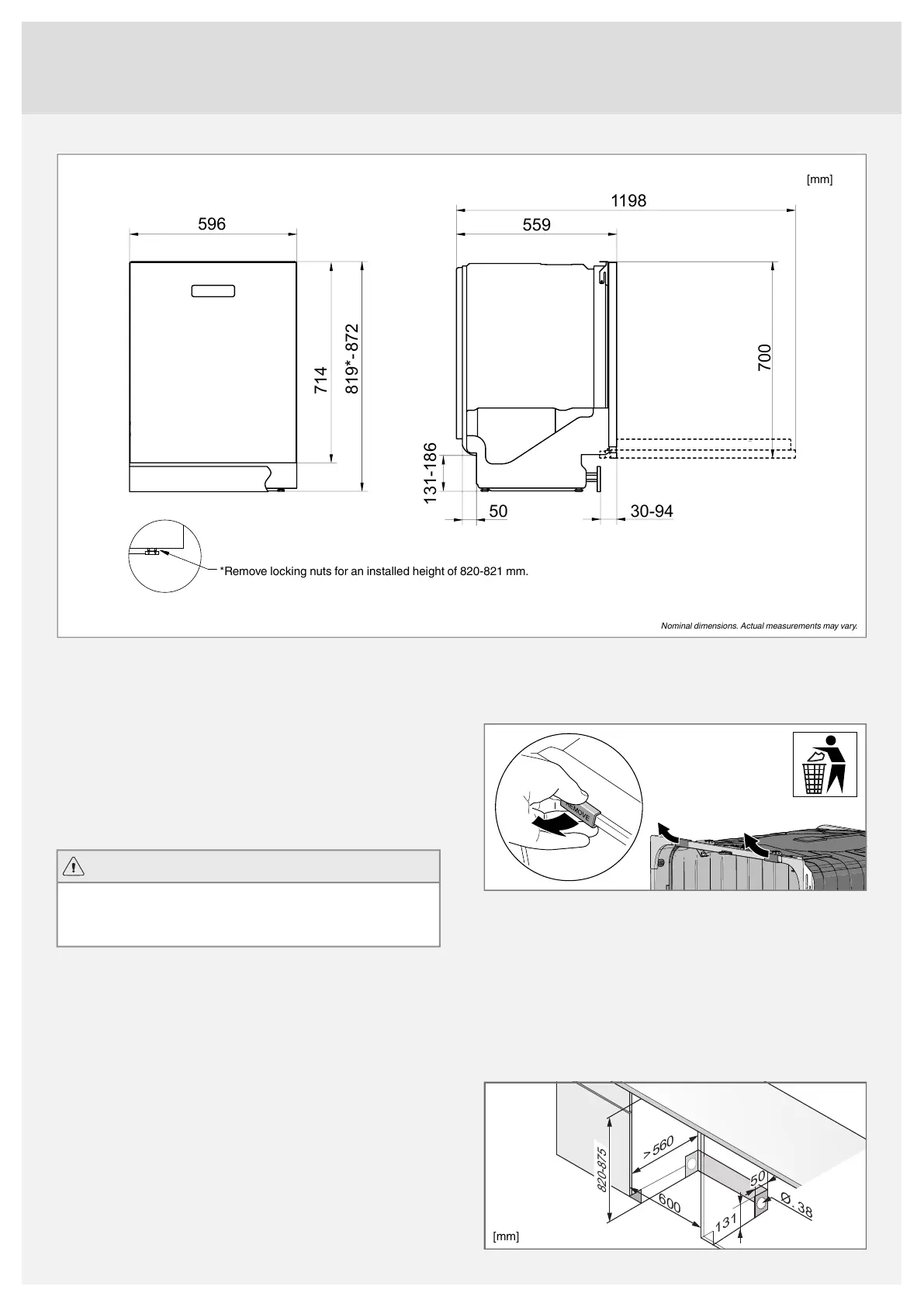

Installation
819*- 872
559
714
596
131-186
50 30-94
1198
700
[mm]
Nominal dimensions. Actual measurements may vary.
*Remove locking nuts for an installed height of 820-821 mm.
Safety instructions
• Connections to electricity, water and drainage must be performed
by a qualified professional.
• Always follow applicable regulations for water, drainage and elec-
tricity.
• Take care during installation! Wear protective gloves! There must
always be two people!
• Before screwing the dishwasher into place, test the dishwasher by
running the Rinse and hold program. Check that the dishwasher
fills with water and drains. Check also that none of the connections
leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off
while the work is carried out!
Transport protection for the door
Do not forget to remove the transport protection for the door when un-
packing the dishwasher.
Placing the dishwasher
The dishwasher can be installed built-in, completely freestanding or
partially built-in.
A. Built-in
The dishwasher is intended for installation under a worktop. The recess
dimensions are illustrated. Holes for wires/cables need not be larger
than 38 mm in diameter. Make sure the edges of such holes are even
to prevent damage to the drainage and inlet hoses and the power ca-
ble.
Ø. 38
600
50
131
820-875
> 560
[mm]
20
