Asko T721 - Fan and Condenser Cleaning

16
2
2
1
2
2
1
4
3
5
2

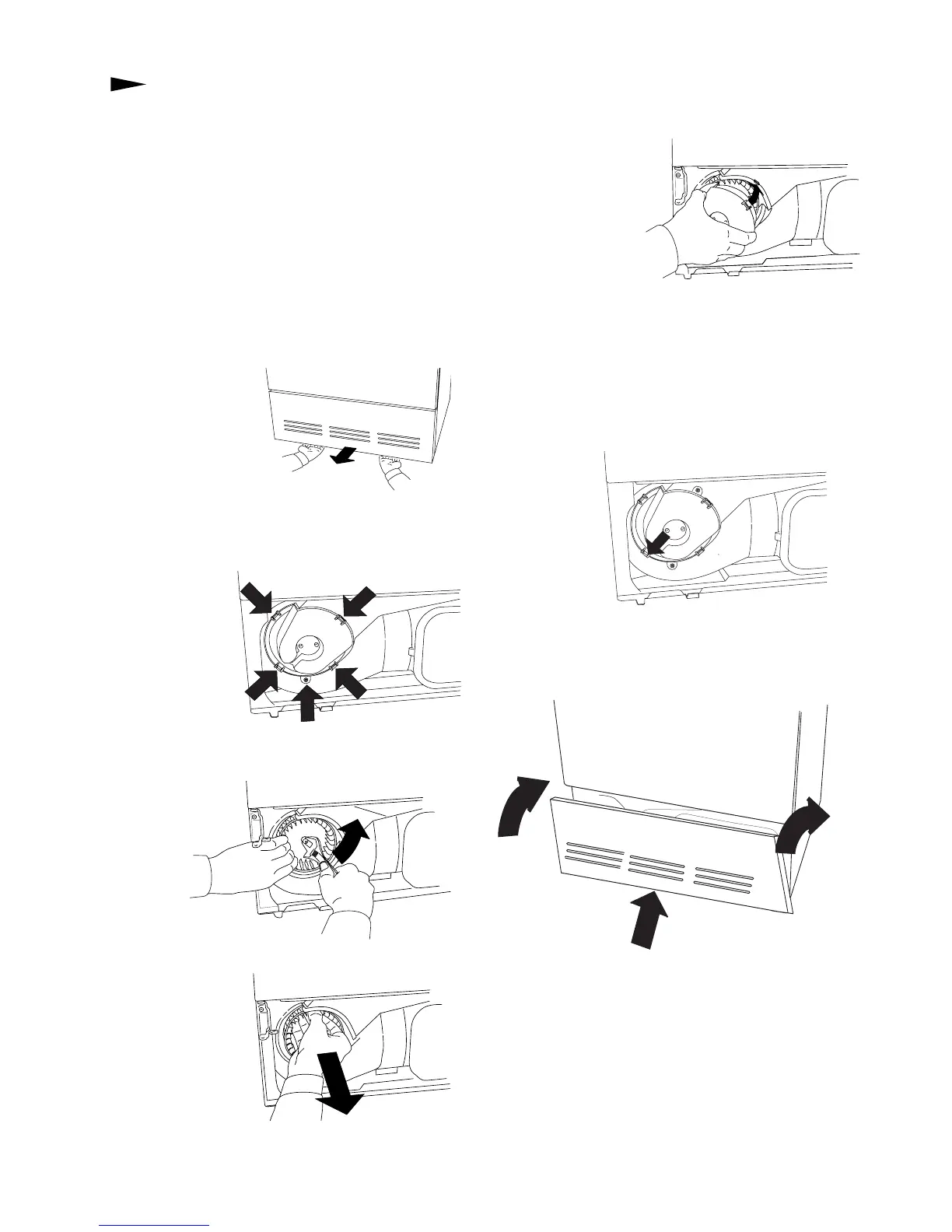

CLEANING THE FAN
The fan should be cleaned at least once a year.
If you have any household pets the fan must be
cleaned more often.
1.Turn OFF the main power switch.
2.Remove the lower cover.
3. Remove
the safety
screw (1). Prise out the four clips in the order
shown and remove the fan cover.
4.Unscrew the
nut while holding the fan.
5.Take out the fan and clean it with a brush
and water.
6. Put the fan back
into place and
screw on the nut.
7. Refit the fan cover, making sure the clips
hold the cover in place. Don’t forget to fit the
safety screw.
8.Fit the lower cover back in place.
1
3
22
1
33
44
