Asko T760 - 5 Panel and LC Display

8
1. INDICATION LAMP ON/OFF
2. MAIN POWER SWITCH
3. PROGRAM SELECTION BUTTON P1
4. PROGRAM SELECTION BUTTON P2
5. PROGRAM SELECTION BUTTON P3
6. PROGRAM SELECTION BUTTON P4
7. LC DISPLAY
8. START BUTTON
9. STOP BUTTON
10. MENU BUTTON
11. STEP BACKWARD
12. STEP FORWARD
13. ENTER BUTTON

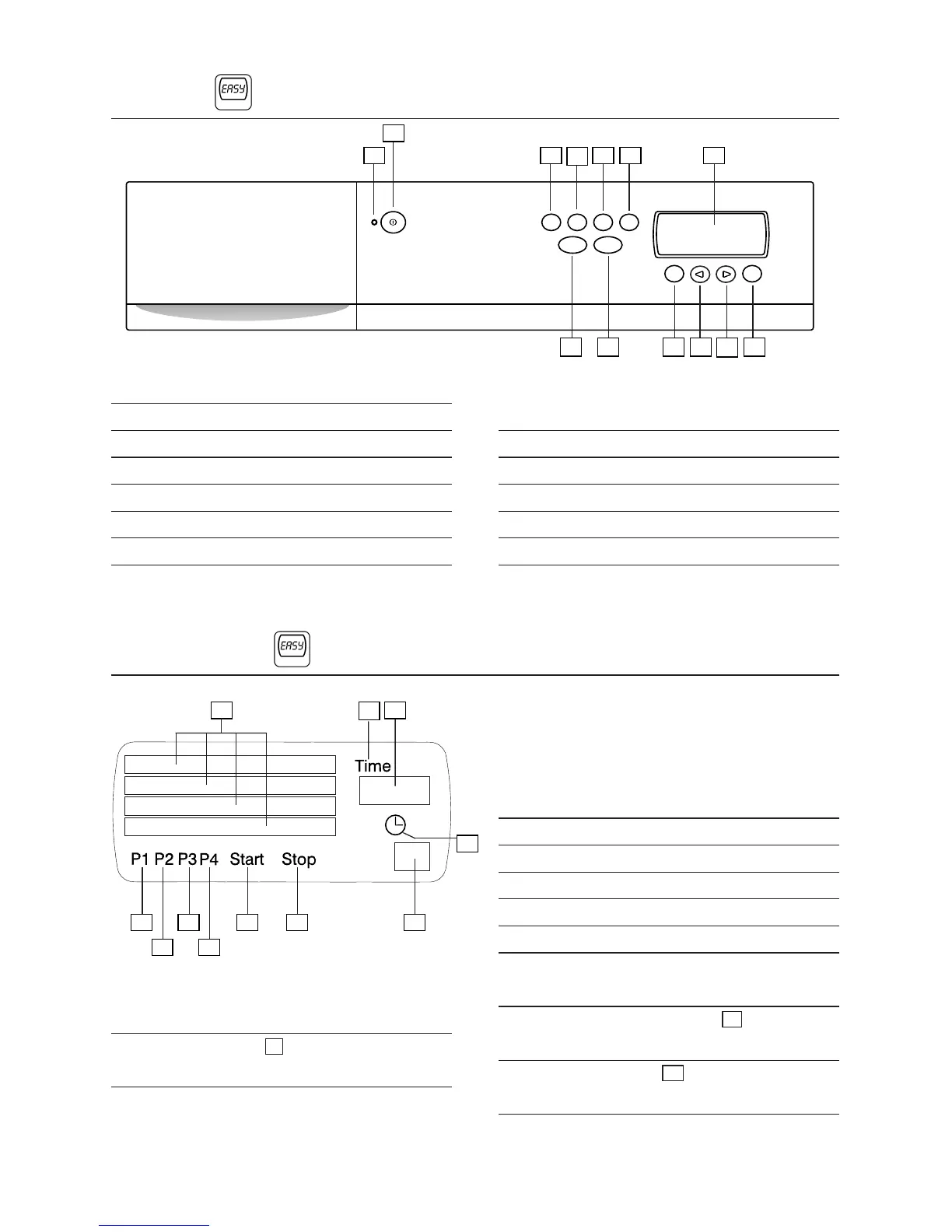

5 PANEL
Start
P3P1 P2 P4
Stop
Menu Enter
1
2
5 6 7
8 9 10 11 12 13
3
4
6 LC-DISPLAY
1. TEXT FIELD, SHOWING PROGRAM, OPTIONS,
ERROR MESSAGES, ETC.
2. INDICATES THAT 3 SHOWS SELECTED
DURATION FOR A TIMED DRY PROGRAM
3. SHOWS SELECTED DURATION FOR THE TIMED
PROGRAM
4. INDICATES THAT SELECTED PROGRAM IS P1
5. INDICATES THAT SELECTED PROGRAM IS P2
6. INDICATES THAT SELECTED PROGRAM IS P3
7. INDICATES THAT SELECTED PROGRAM IS P4
8. INDICATES THAT A PROGRAM IS STARTED
9. INDICATES THAT A PROGRAM IS COMPLETED
OR STOPPED
10. SHOWS TOGETHER WITH 11 NUMBER OF
HOURS FOR DELAYED START TIME
11. INDICATES THAT 10 SHOWS DELAYED
START TIME
11
3
5 7
4 6 8 9 10
2
