Art.no. 80 800 75 Rev. 1
Loops on control card
Machine type TD30/40
No program selected. Program in 0 position
Change power to obtain “right” time indication on TD40
5 x Start + 5 x S1 (selection of time in time program).
Press S1 to select high or low element power.
Setting child-safe Start and Menu.
5 x Start + 5 x S2 (anti-crease).
Change setting with S2 (anti-crease)
Setting of Europe / USA - program (Only Control Unite art. no. 80 650 42)
5 x Start + 5 x S3
Change settings with S3, 50 (Europe), 60 (USA)

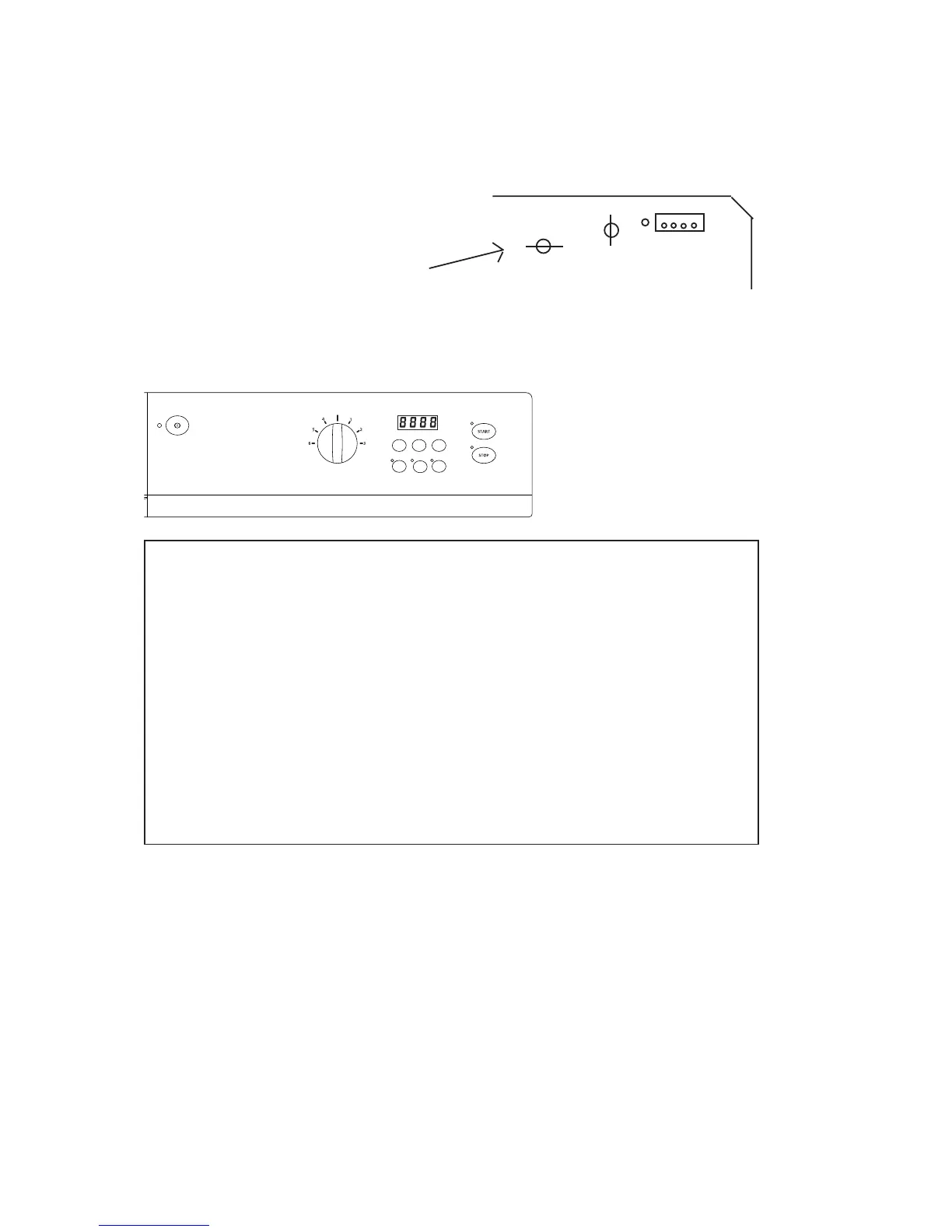

Loops and their function
J1 loop = selection of machine type
Cut J1 on all condensed machines
Reprogramming display and button functions:
J2
J1
TD33
TD44
Do not cut J2
Control unit art. no. 8064259 / 8065042
S1
S2
S4
S5
S3
S6
