SERVICE
I N F O R M A T I O N
Product: WM 33/44/55/66
Date: 00-03-15
Reference: Per Svensson
Group: 21
Number: 149
ÄO: 7301 Page: 1(1)
DL1
DL2
DL3
grey
1
2
3
1
2
3
Wiring information

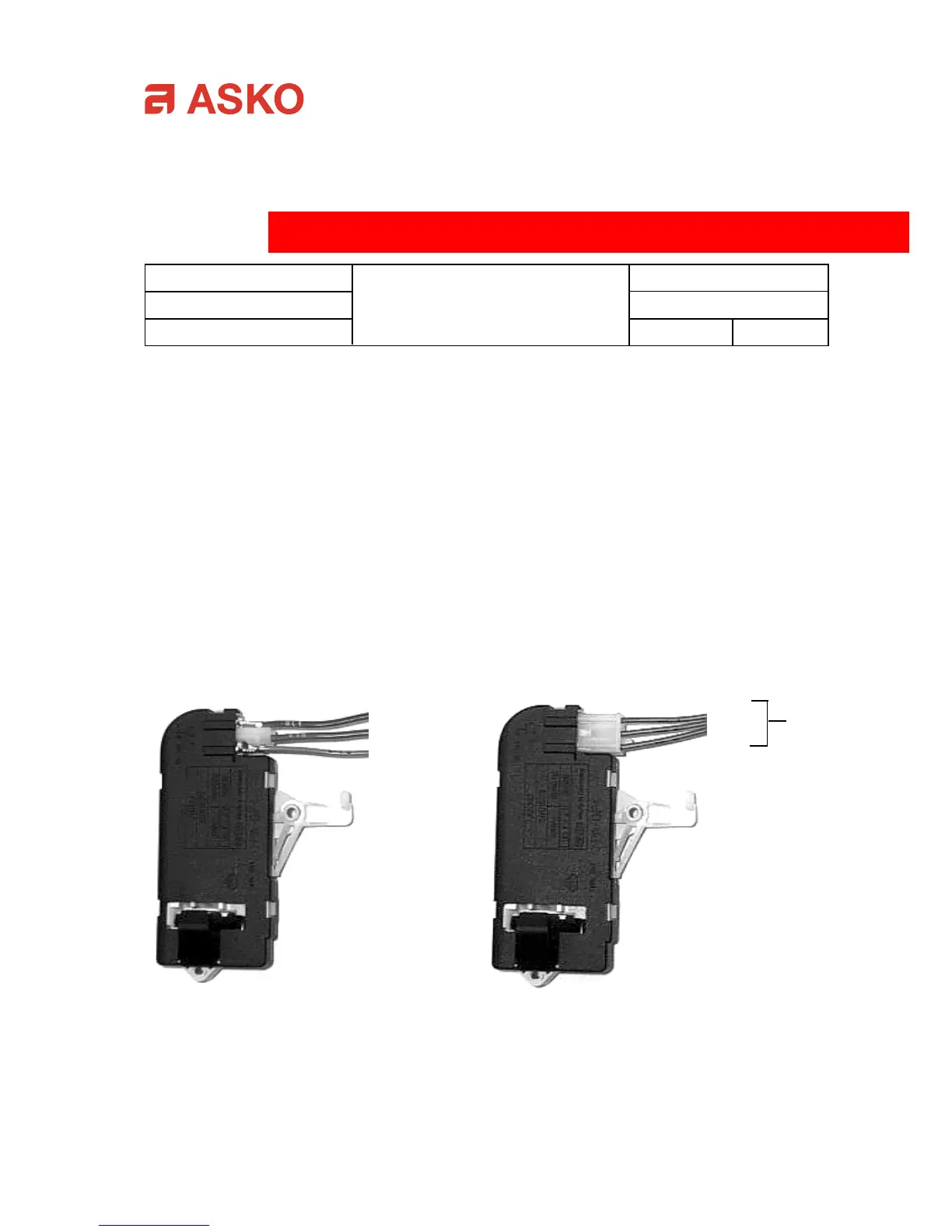

Door lock WM 33, 44, 55, 66
A modification to door hinge article no. 8061679 has led to the following changes:
1. Door hinge is now labelled (wiring information 1, 2, 3).
2. Leads DL1 and DL3 have swapped markings.
3. Wiring diagram has changed. Diagrams 8061751 rev. 00 and 8061753 rev 00 have been replaced
by rev. 01.
These changes have been made to machines manufactured after week 22, 1999.
New marking WM 33/44.
Individual leads
Lead marked DL 1 colour grey/red
Lead marked DL 2 colour grey
Lead marked DL 3 orange
New marking WM 55/66.
Connector block
Lead marked DL 1 colour grey
Lead marked DL 2 colour grey
Lead marked DL 3 colour grey
DL 1 grey/red
DL 2 grey
DL 3 orange
Previous marking
WM 33/44
DL 3 grey/red
DL 2 grey
DL 1 orange
Previous marking
WM 55/66
DL 3 grey
DL 2 grey
DL 1 grey
NOTE!
Incorrect connection will cause a short-circuit.
The relative positions are unchanged. It is only the markings on the leads that have changed
