Asko W6903 - Drain Outlet Connection; Electrical Connections; Grounding Instructions; Freestanding Installation

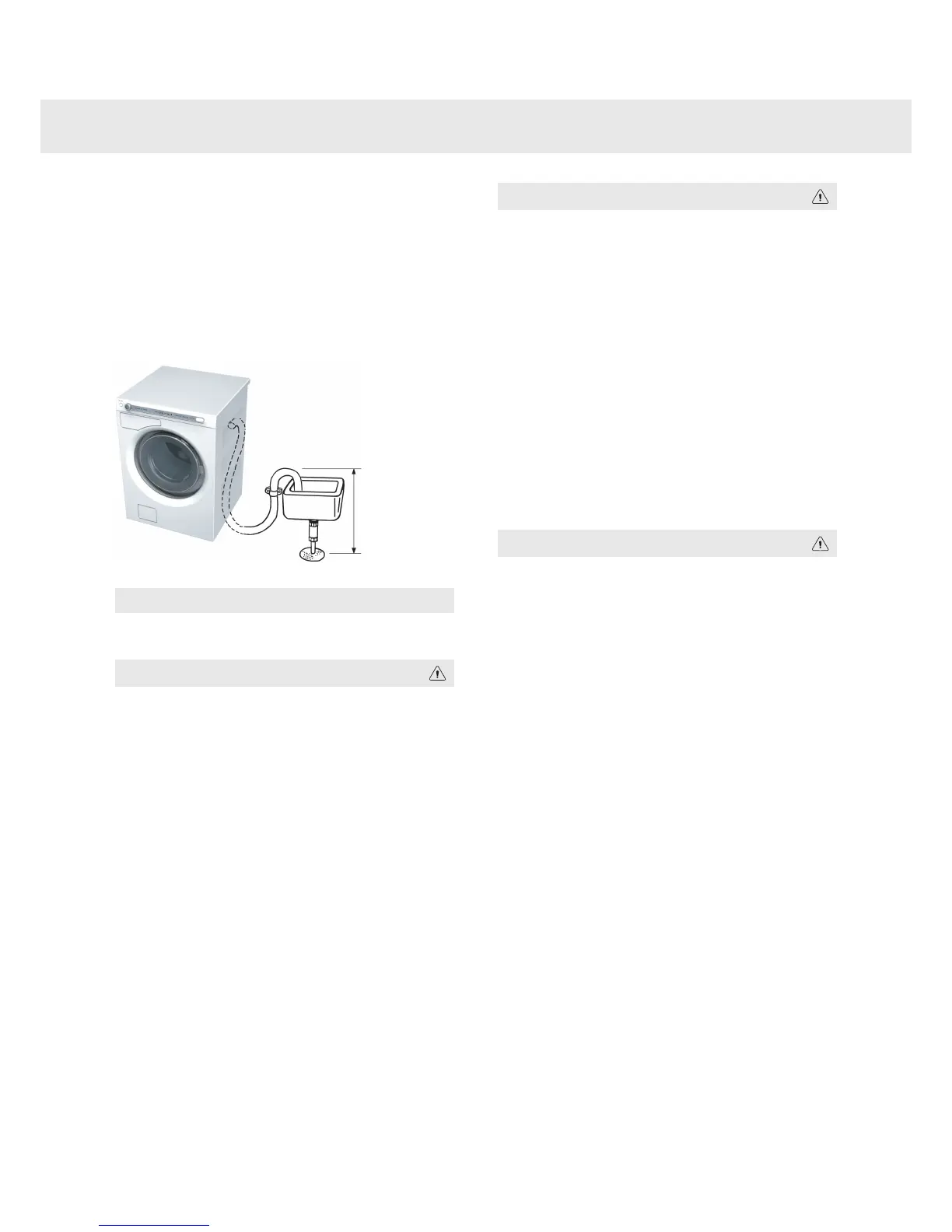

Drain outlet connection
The machine is supplied with the outlet hose
already attached. The hose should be extend-
ed over a suitable sink edge or drain pipe at
a height of 24" to 36" (610 mm to 914 mm)
above the bottom of the unit. (The lower
height is preferable.) Make sure the hose is
not kinked.
24" to 36"
Note!
If the hose is extended, the internal diameter
of the coupling must not be less than ½".
Warning!
Do not extend the drain hose higher than 36"
(914 mm) from the bottom of the unit.
Electrical Connections
The machine is delivered ready-fitted with a
plug and is intended for connection to an
ASKO Dryer, which is equipped with a
matching receptacle. The plug supplied with
the washer can only be used with an ASKO
Dryer. If the washer is used separately or with
another dryer, it must be on a separate 220
V single-phase circuit.
If the machine is to be used in a wet area, the
supply must be protected by a residual current
device.
As supplied: 230 V, 60 Hz, 2000 W heating
element,15 A fuse required
Warning!
Connection to a permanently wired supply
point must be made only by a qualified electri-
cian
Grounding instructions
This appliance must be grounded. In the
event of malfunction or breakdown, grounding
will reduce the risk of electric shock by provid-
ing a path of least resistance for electric cur-
rent. This appliance is equipped with a cord
having an equipment-grounding conductor
and a grounding plug. The plug must be
plugged into an appropriate outlet that is
properly installed and grounded in accor-
dance with all local codes and ordinances.
Warning!
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified electri-
cian or serviceman if you are in doubt as to
whether the appliance is properly grounded.
Do not modify the plug provided with the ap-
pliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Freestanding installation
The washer can be placed next to the dryer.
It is essential that the machine is leveled and
the locknuts are tightened to prevent exces-
sive vibration during spin cycles. Also be sure
to leave a minimum of ½" of space between
the washer and the dryer. The height adjust-
ment for the washer is 33½" to 34½" (850 mm
to 876 mm). Do not raise it higher than 34½"
(876 mm).
Stacked installation
ASKO washers should never be stacked on
a counter or a dryer. You can, however, stack
an ASKO dryer on an ASKO washer. Refer
to your Dryer Use and Care Guide for instruc-
tions on how to do this.
35Customer Care Center
1-800-898-1879
www.askousa.com
Installation instructions
