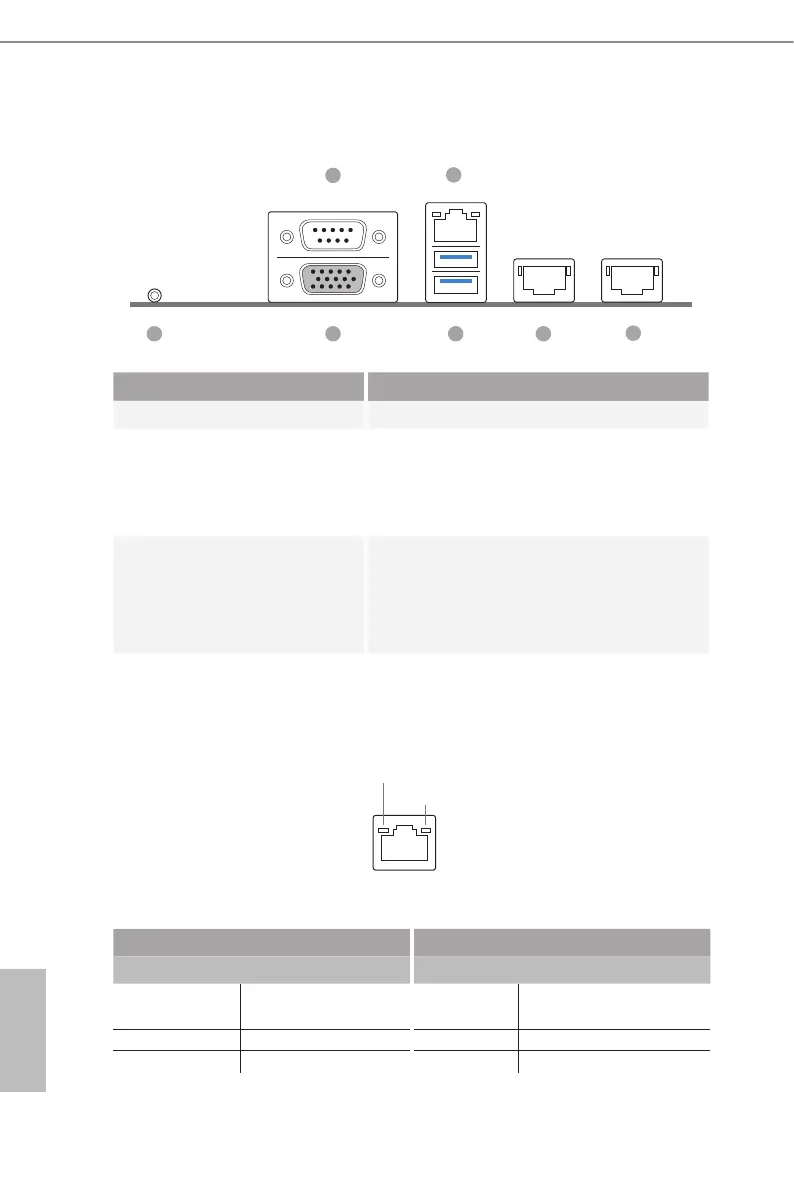

1.6 I/O Panel
2
1
4
6
7
No. Description No. Description
1 UID Switch (UID1) 5 LAN RJ-45 Port (IPMI_LAN1)*
2 VGA Port (VGA1) 6
EPYCD8 / EPYCD8/R32:
GLAN RJ-45 Port (LAN1)**
EPYCD8-2T / EPYCD8-2T/R32:
10G LAN RJ-45 Port (LAN1)**
3 Serial Port (COM1) 7
EPYCD8 / EPYCD8/R32:
GLAN RJ-45 Port (LAN2)**
EPYCD8-2T / EPYCD8-2T/R32:
10G LAN RJ-45 Port (LAN2)**
4 USB 3.0 Ports (USB3_1_2)
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
