2.6 Jumper Setup

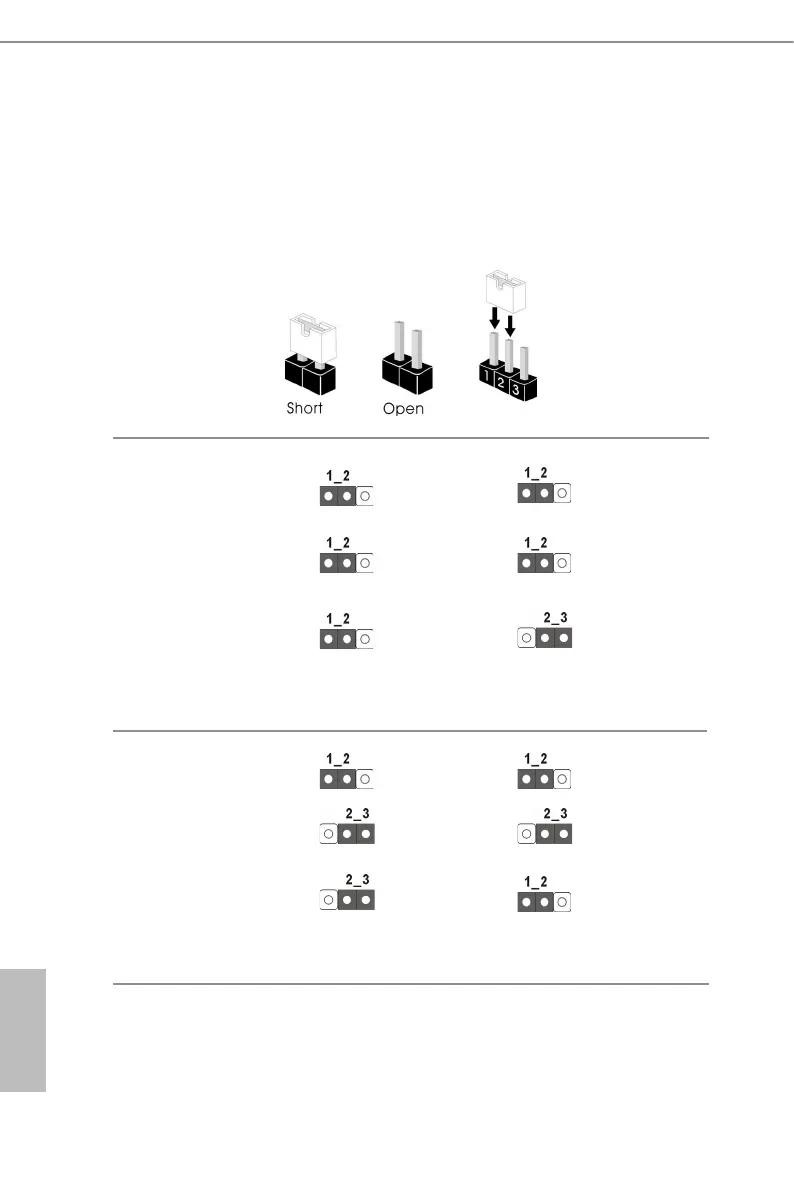

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Chassis ID1 Jumper
(3-pin CHASSIS _ID1)
(see p.6, No. 32)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.6, No. 31)
Chassis ID3 Jumper
(3-pin CHASSIS_ID3)
(see p.6, No. 30)
Board Level SKU (Default) Reserved for system level
use
Chassis ID1 Jumper
(3-pin CHASSIS _ID1)
(see p.6, No. 32)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.6, No. 31)
Chassis ID3 Jumper
(3-pin CHASSIS_ID3)
(see p.6, No. 30)
Reserved for system level
use
Reserved for system level
use
