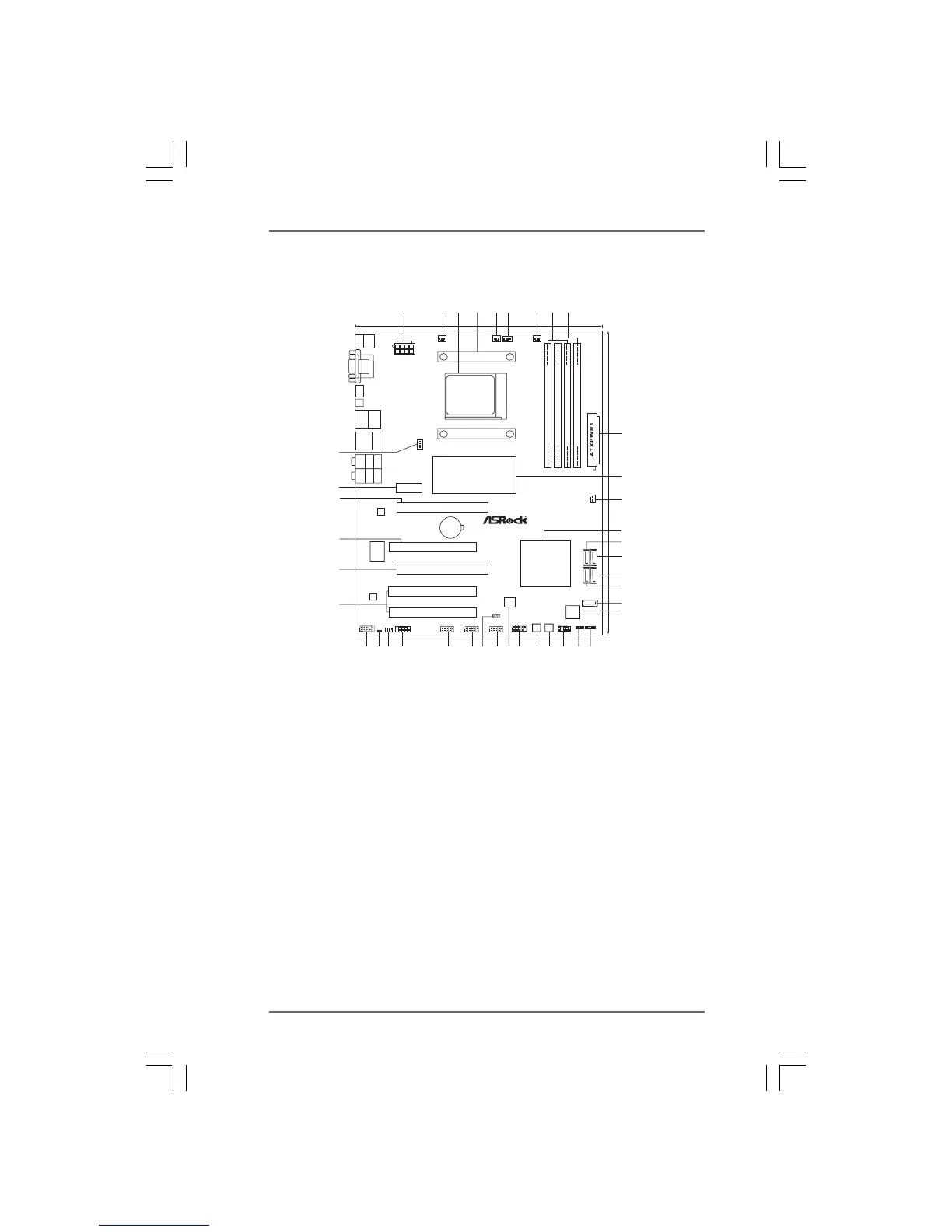

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 22 System Panel Header (PANEL1, White)
2 Power Fan Connector (PWR_FAN1) 23 Reset Switch (RSTBTN)
3 AM3+ CPU Socket 24 Power Switch (PWRBTN)
4 CPU Heatsink Retention Module 25 Front Panel IEEE 1394 Header
5 CPU Fan Connector (CPU_FAN2) (FRONT_1394, White)
6 CPU Fan Connector (CPU_FAN1) 26 SPI Flash Memory (32Mb)
7 Chassis Fan Connector (CHA_FAN2) 27 USB 2.0 Header (USB10_11, Blue)
8 2 x 240-pin DDR3 DIMM Slots 28 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 29 SB 2.0 Header (USB8_9, Blue)
9 2 x 240-pin DDR3 DIMM Slots 30 SB 2.0 Header (USB6_7, Blue)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 31 Serial Port Connector (COM1)
10 ATX Power Connector (ATXPWR1) 32 Infrared Module Header (IR1)
11 Northbridge Controller 33 HDMI_SPDIF Header
12 Chassis Fan Connector (CHA_FAN3) (HDMI_SPDIF1, White)
13 Southbridge Controller 34 Front Panel Audio Header
14 SATA3 Connector (SATAIII_3, White) (HD_AUDIO1, White)
15 SATA3 Connector (SATAIII_4, White) 35 PCI Slots (PCI2-3)
16 SATA3 Connector (SATAIII_2, White) 36 PCI Express 2.0 x16 Slot (PCIE3; Blue)
17 SATA3 Connector (SATAIII_1, White) 37 PCI Slot (PCI1)
18 SATA3 Connector (SATA3_5, White) 38 PCI Express 2.0 x16 Slot (PCIE2; Blue)
19 Dr. Debug (LED) 39 PCI Express 2.0 x1 Slot (PCIE1; White)
20 Chassis Speaker Header (SPEAKER 1, White) 40 Chassis Fan Connector (CHA_FAN1)
21 Power LED Header (PLED1)
AMD
SB850
Chipset
ATX12V1
32Mb
BIOS
CMOS
BATTERY
CLRCMOS1
1
COM1
LAN
PHY
1
AUDIO
CODEC
Super
I/O
IR1
1
HD_AUDIO1
1
PCIE1
1
HDMI_SPDIF1
HDLED RESET
PLED PWRBTN
1
PANEL1
SPEAKER1
1
AM3+
HT3.0
24.4cm (9.6-in)
30.5cm (12.0-in)
6
71
2
4
3 5 8
9
10
11
12
13
14
15
16
17
18
19
20
2122
23
24
2526
27
28
29
3031
32
33
PCIE2
PCI1
890GX Pro3
Hybrid CrossFire
ErP/EuP Ready
USB6_7
1
CPU_FAN2
34
35
1
PLED1
SATAIII_3_4
SATA3 6Gb/s
36
37
38
39
Designed in Taipei
AMD
890GX
Chipset
SATAIII_1_2
PCIE3
PCI2
PCI3
USB8_9
1
USB10_11
1
CHA_FAN3
FRONT_1394
11
PWRBTN
RSTBTN
Dr.
Debug
CPU_FAN1
USB 2.0
T:USB4
B: USB5
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
Clr
CMOS
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATA3
IEEE 1394
USB 2.0
T:USB2
B: USB3
USB 3.0
T: U SB 0
B: USB1
1394a
RoHS
PCI Express 2.0
FSB2.6GHz
DDR3 1866
Dual Channel
40
SOCKET AM3b
PWR_FAN1
FSB800
DDR3_A1 (64bit, 240-pin module)
DDR3_A2 (64bit, 240-pin module)
FSB800
DDR3_B1 (64bit, 240-pin module)
DDR3_B2 (64bit, 240-pin module)
CHA_FAN1
SATA3_5
CHA_FAN2
USB 3.0
Support 8-Core CPU
Phenom II
140W CPU
DX10.1
