ASROCK 890GX Pro3 User Manual

3030
3030
30
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.12 No. 32) and receiving infrared module.
DUMMY
GND
+5V
IRTX
IRRX
1

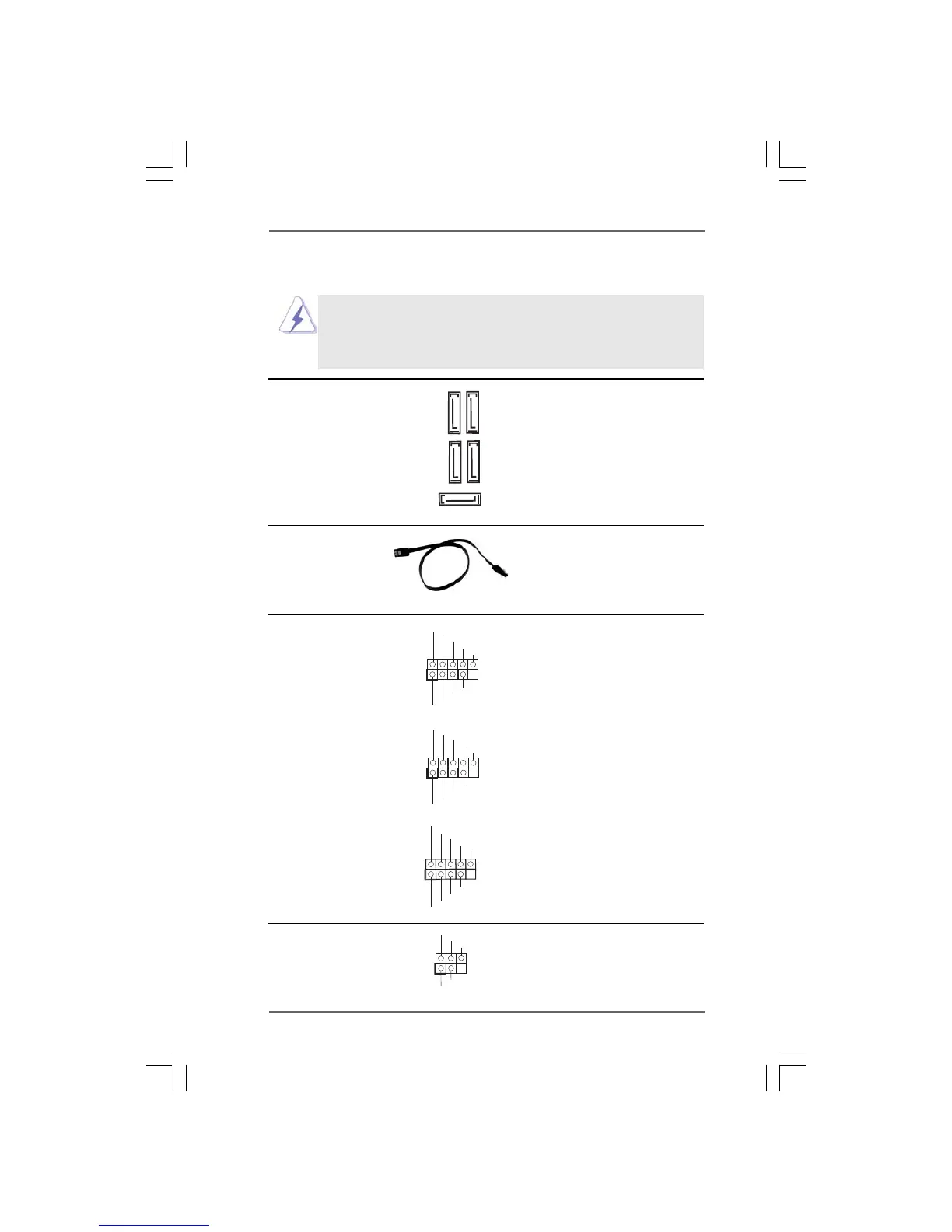

2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA3
(Optional) hard disk or the SATA3
connector on this motherboard.
SATAIII_1 SATAIII_3
Serial ATA3 Connectors These five Serial ATA3
(SATAIII_1: see p.12, No. 17) (SATA3) connectors support
(SATAIII_2: see p.12, No. 16) SATA data cables for internal
(SATAIII_3: see p.12, No. 14) storage devices. The current
(SATAIII_4: see p.12, No. 15) SATA3 interface allows up to
(SATA3_5: see p.12, No. 18) 6.0 Gb/s data transfer rate.
SATA3_5
SATAIII_2 SATAIII_4
USB_PWR
USB_PWR
P+7
P-7
P+6
P-6
GND
GND
DUMMY
1
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB10_11) ports on the I/O panel, there are
(see p.12 No. 27) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.12 No. 29)
(9-pin USB6_7)
(see p.12 No. 30)
1
USB_P WR
P-8
GND
DUMMY
USB_P WR
P+8
GND
P-9
P+9
1
USB_PWR
P-10
GND
DUMMY
USB_PWR
P+10
GND
P-11
P+11

ASROCK 890GX Pro3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1800, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA connectors	5
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Certification	FCC, CE, WHQL
Component for	PC
Motherboard chipset	AMD 890GX
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB850
Compatible operating systems	Windows 7/Vista/XP
Graphics card	Radeon HD 4290
Maximum graphics card memory	512 MB
Parallel processing technology support	Hybrid CrossFireX, Quad-GPU CrossFireX
PCI Express slots version	2.0
LAN controller	Atheros AR8151
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1

Weight and Dimensions

Depth	244 mm
Width	305 mm
