3131
3131
31
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows
®
XP / XP 64-bit OS:
Select “Mixer”. Select “Recorder”. Then click “FrontMic”.
For Windows
®
7 / 7 64-bit / Vista
TM
/ Vista
TM
64-bit OS:
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
“Recording Volume”.

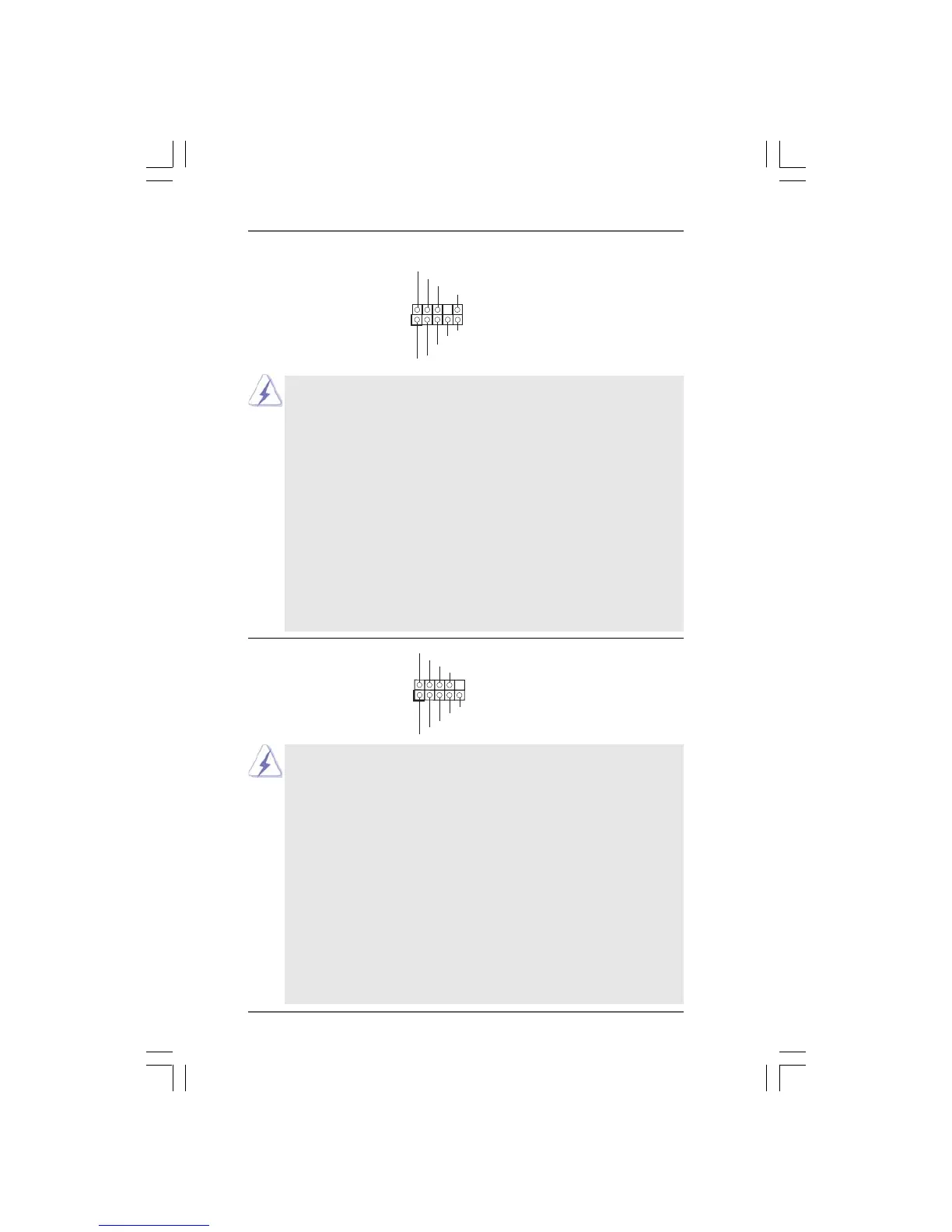

Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.12, No. 34) convenient connection and
control of audio devices.
J_SENS E
OU T2_L
1
MIC_RET
PRES ENCE#
GND
OU T2_R
MIC2_R
MIC2_L
OU T_R ET
GND
PWRBTN#
PLED -
PLED +
DUMMY
RES ET#
GND
HD LED +
HD LED -
1
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.12 No. 22) functions.
Connect the power switch, reset switch and system status indicator on
the chassis to this header according to the pin assignments below. Note
the positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may
configure the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to
perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the
sys-tem is in S1 sleep state. The LED is off when the system is in S3/S4
sleep state or powered off (S5).
