ASROCK 890GX Pro3 User Manual

5757
5757
57
3.4.43.4.4
3.4.43.4.4
3.4.4
Storage ConfigurationStorage Configuration
Storage ConfigurationStorage Configuration

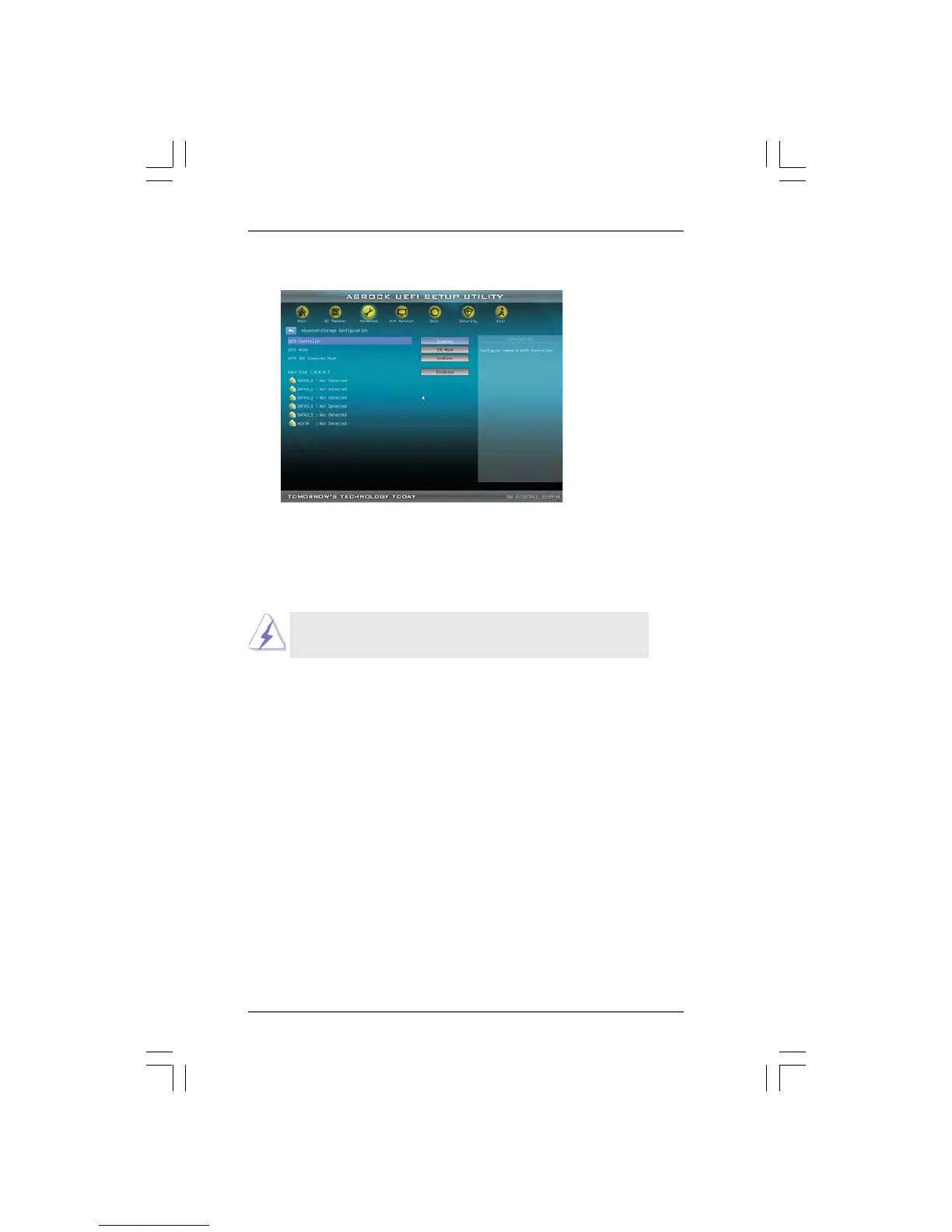

Storage Configuration
SATA Controller
Use this item to enable or disable the “SATA Controller” feature.
SATA Mode
Use this item to adjust SATA Mode. The default value of this option is [IDE
Mode]. Configuration options: [AHCI Mode], [RAID Mode] and [IDE Mode].
SATA IDE Combined Mode
This item is for SATA3_5 and eSATA ports. Use this item to enable or
disable SATA IDE combined mode. The default value is [Enabled].
If you set this item to RAID mode, it is suggested to install
SATA ODD driver on SATA3_5 or eSATA port.

ASROCK 890GX Pro3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1800, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA connectors	5
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Certification	FCC, CE, WHQL
Component for	PC
Motherboard chipset	AMD 890GX
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB850
Compatible operating systems	Windows 7/Vista/XP
Graphics card	Radeon HD 4290
Maximum graphics card memory	512 MB
Parallel processing technology support	Hybrid CrossFireX, Quad-GPU CrossFireX
PCI Express slots version	2.0
LAN controller	Atheros AR8151
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1

Weight and Dimensions

Depth	244 mm
Width	305 mm
