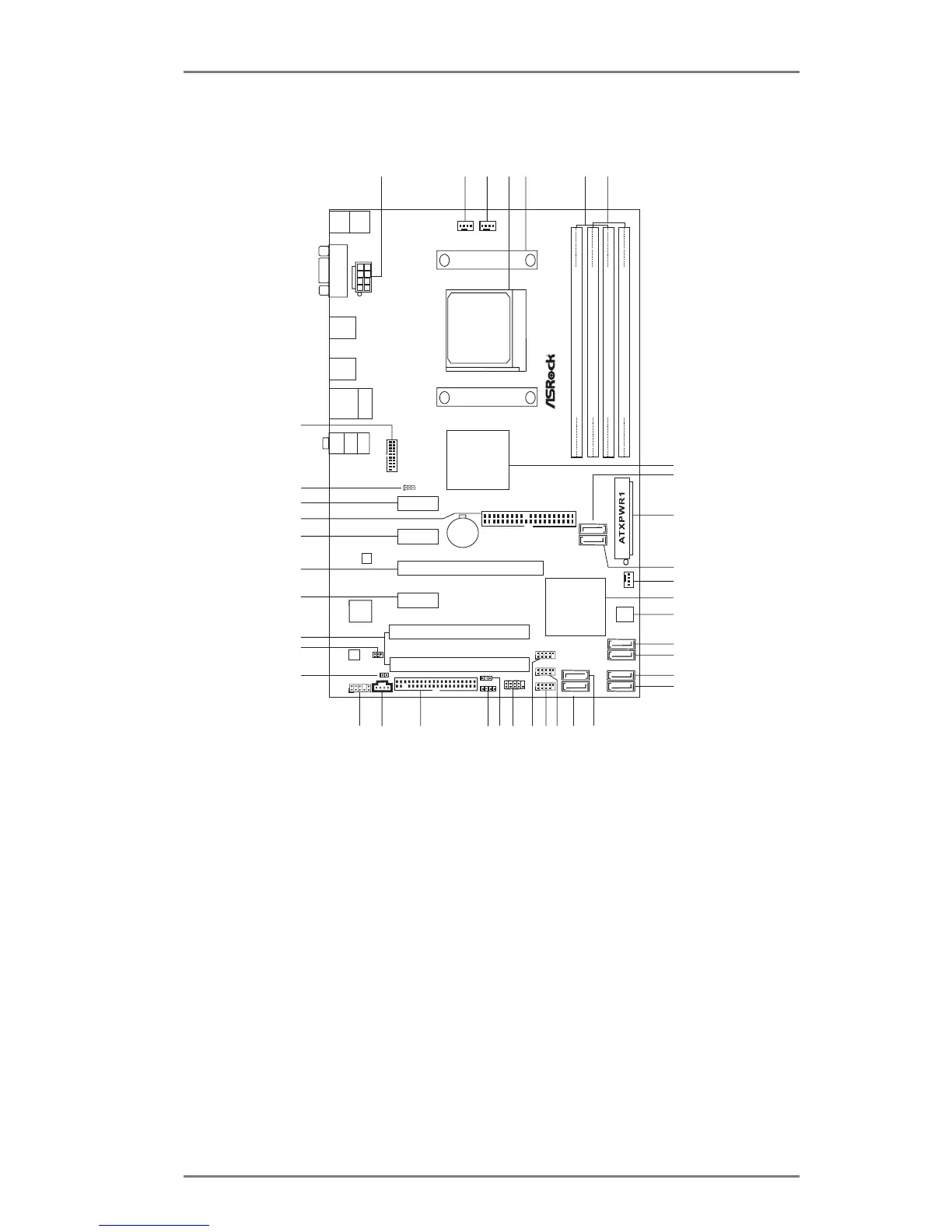

1.4 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 20 SATA2 Connector (SATA2_1 (PORT 1))
2 Power Fan Connector (PWR_FAN1) 21 USB 2.0 Header (USB6_7)
3 CPU Fan Connector (CPU_FAN1) 22 USB 2.0 Header (USB4_5)
4 AM3+ CPU Socket 23 USB 2.0 Header (USB8_9)
5 CPU Heatsink Retention Module 24 System Panel Header (PANEL1)
6 2 x 240-pin DDR3 DIMM Slots 25 Power LED Header (PLED1)
(Dual Channel: DDR3_A1, DDR3_B1) 26 Chassis Speaker Header (SPEAKER1)
7 2 x 240-pin DDR3 DIMM Slots 27 Floppy Connector (FLOPPY1)
(Dual Channel: DDR3_A2, DDR3_B2) 28 Internal Audio Connector (CD1)
8 Northbridge Controller 29 Front Panel Audio Header (HD_AUDIO1)
9 SATA3 Connector (SATA3_2 (PORT 7)) 30 HDMI_SPDIF Header (HDMI_SPDIF1)
10 ATX Power Connector (ATXPWR1) 31 Infrared Module Header (IR1)
11 SATA3 Connector (SATA3_1 (PORT 6)) 32 PCI Slots (PCI1-2)
12 Chassis Fan Connector (CHA_FAN1) 33 PCI Express 2.0 x1 Slot (PCIE4)
13 Southbridge Controller 34 PCI Express 2.0 x16 Slot (PCIE3)
14 SPI Flash Memory (16Mb) 35 PCI Express 2.0 x1 Slot (PCIE2)
15 SATA2 Connector (SATA2_6 (PORT 5)) 36 IDE1 Connector (IDE1)
16 SATA2 Connector (SATA2_5 (PORT 4)) 37 PCI Express 2.0 x1 Slot (PCIE1)
17 SATA2 Connector (SATA2_4 (PORT 3)) 38 Clear CMOS Jumper (CLRCMOS1)
18 SATA2 Connector (SATA2_3 (PORT 2)) 39 USB 3.0 Header (USB3_2_3)
19 SATA2 Connector (SATA2_2 (PORT 1))
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
IDE 1
AMD
SB710
Chipset
ATX12 V1
16Mb
BIOS
CMOS
BATTERY
CLR CMO S1
1
LAN
PHY
AUD IO
COD EC
Super
I/O
IR1
1
CD1
HD_ AUDI O1
1
PCIE1
FLO PPY1
HDLE D RESE T
PLED P WRBTN
1
PANEL 1
SPEA KER1
1
SATAII _2(P ORT 1 )
AMD
RX881/760G
Chipset
PCI1
PCI2
980DE3/U3S3
SATAII _4(P ORT 3 )
SATAII _3(P ORT 2 )
Top:
LIN E IN
Cen te r:
FRO NT
Bot to m:
MIC IN
PS2
Mous e
PS2
Keyboard
USB 2. 0
T: USB0
B: U SB 1
Top:
RJ-45
USB 3.0
T: US B0
B: US B1
Front USB 3.0
ErP/EuP Ready
RoHS
USB 8_9
1
SATAII _1(P ORT 0 )
SATAII _6(P ORT 5 )
SATAII _5(P ORT 4 )
1
PLED 1
1
HDMI _SP DIF1
USB 6_7
1
USB 4_5
1
USB 2.0
T: US B2
B: US B3
COM1
CHA _FAN1
Support 8-Core CPU
36
37
38
SOCKET AM3b
PCIE2
PCIE4
PCIE3
FSB800
DDR3_A1 (64 bi t, 24 0 -pin modu le)
DDR3_A2 (64 bi t, 24 0 -pin modu le)
FSB800
DDR3_B1 (64 bi t, 24 0 -pin modu le)
DDR3_B2 (64 bi t, 24 0 -pin modu le)
SATA3_ 2(PO RT 7)
SATA3_ 1(PO RT 6)
DDR3 1866
AM3+
140W CPU
CPU _FAN1PWR _FAN1
X
Fast RAM
X Fast USB
X Fast LAN
USB 3_2 _3
39

ASROCK 980DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	IDE, SATA II, SATA III
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	16 Mbit

Weight and Dimensions

Width	- mm
