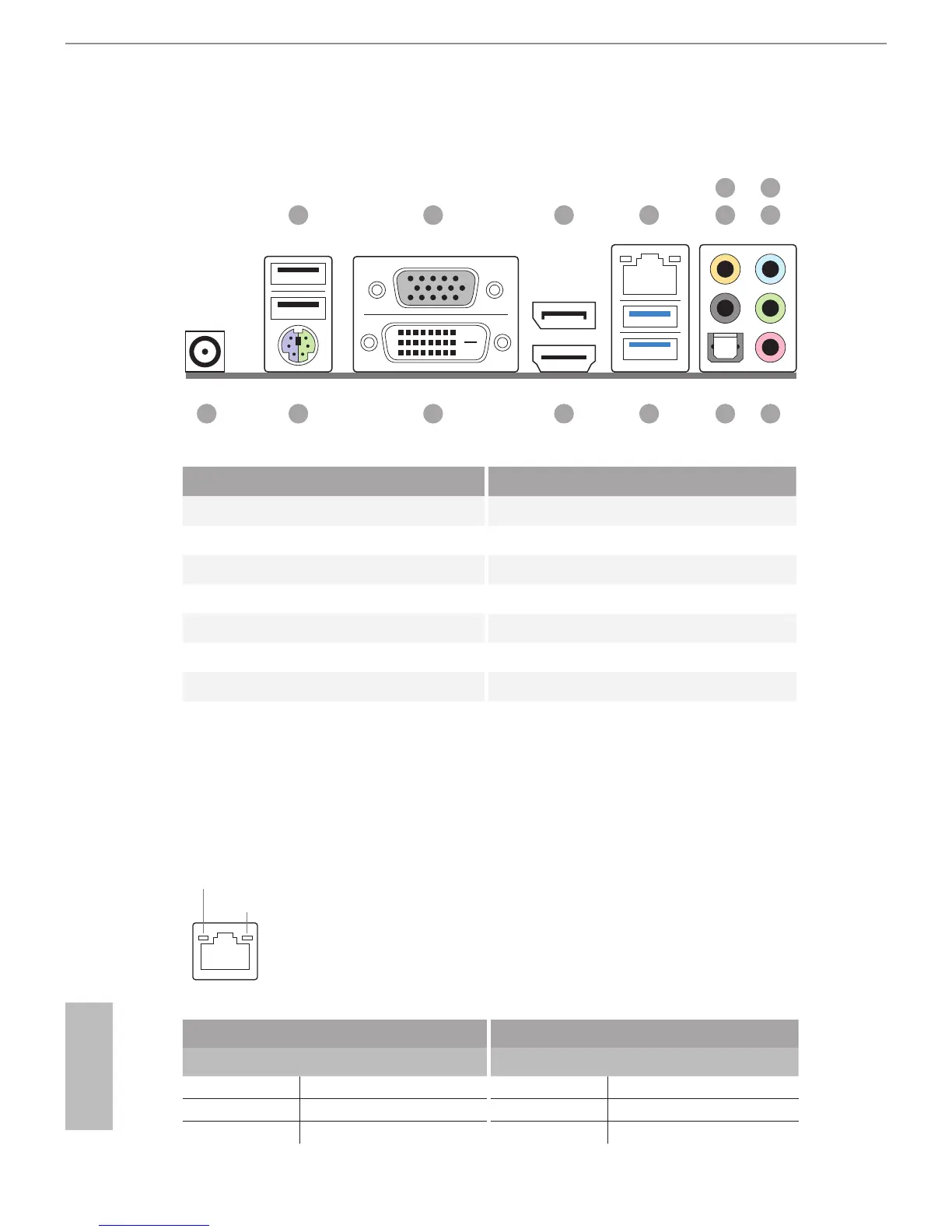

1.5 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB01) 9 Microphone (Pink)
2 D-Sub Port 10 Optical SPDIF Out Port
3 DisplayPort 1.2* 11 USB 3.0 Ports (USB3_0_1)
4 LAN RJ-45 Port** 12 HDMI Port*
5 Central / Bass (Orange) 13 DVI-D Port
6 Rear Speaker (Black) 14 PS/2 Mouse/Keyboard Port
7 Line In (Light Blue) 15 DC Jack****
8 Front Speaker (Lime)***
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 4
1114 910
6
5
8
7
1213
2 3
15
* HDMI and DisplayPort 1.2 cannot output at the same time. You can only choose either one of them. Please refer
to the BIOS setup option “HDMI/DP Switch“ on page 42.
