4 5
English

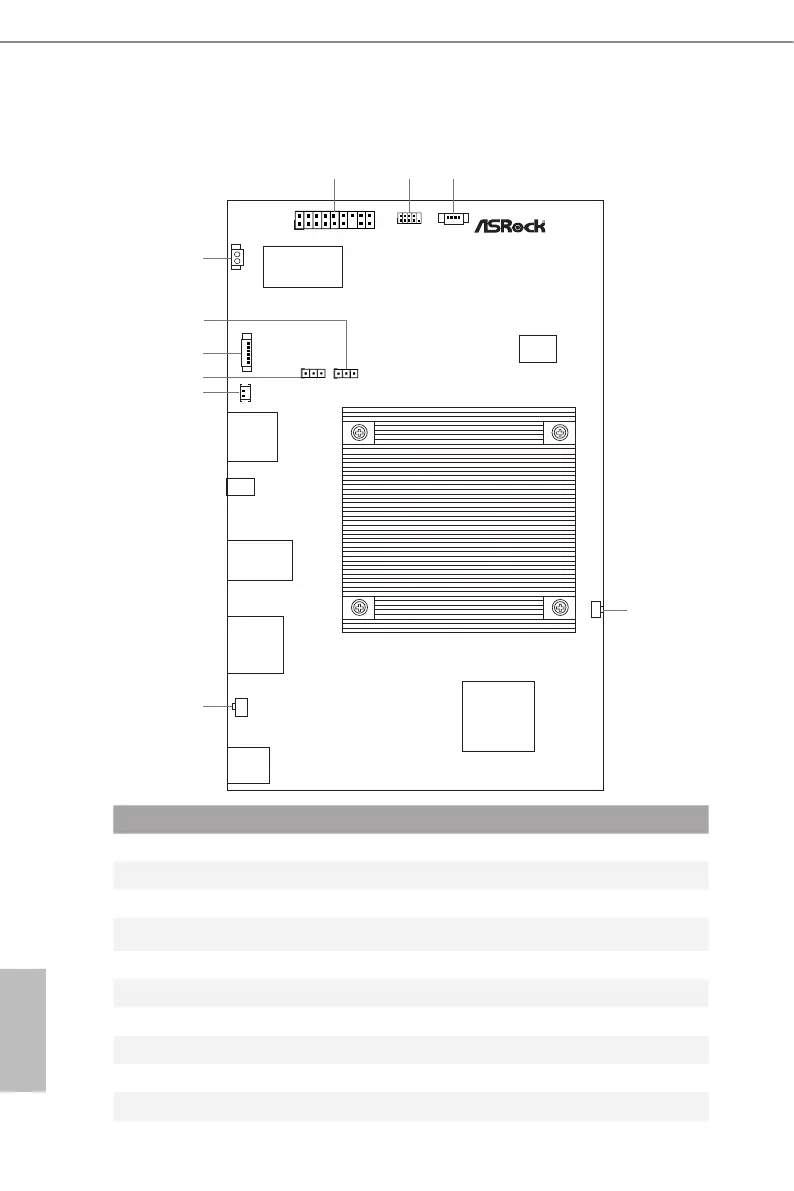

1.3 Motherboard Layout
BIOS
ROM
ETH_PWR1
USB 3.0
T: USB3
B: USB2
USB 3.0
USB3_1
Industrial
HDMI1
DC_JACK1
BAT1
CLRMOS1
1
PWR_JP1
1
athena A1
R
1
LPC1
CAM
CAM_PWR1
S 1D
RES ET1
USB2_5_6
1
FAN1
PWR_BTN1
1
2
3
4
5
10
8
6
7
9
No. Description
1 LPC Debug Header (LPC1)
2 USB2.0 Connector (USB2_5_6)
3 FAN Connector (FAN1)
4 Power Button (PWR_BTN1)
5 Reset Button (RESET1)
6 IP Camera Power Connector (CAM_PWR1)
7 Clear CMOS Headers (CLRMOS1)
8 IP Camera Signal Connector (CAM1)
9 ATX/AT Mode Jumper (PWR_JP1)
10 Battery Connector (BAT1)
To Next Page
