20
English

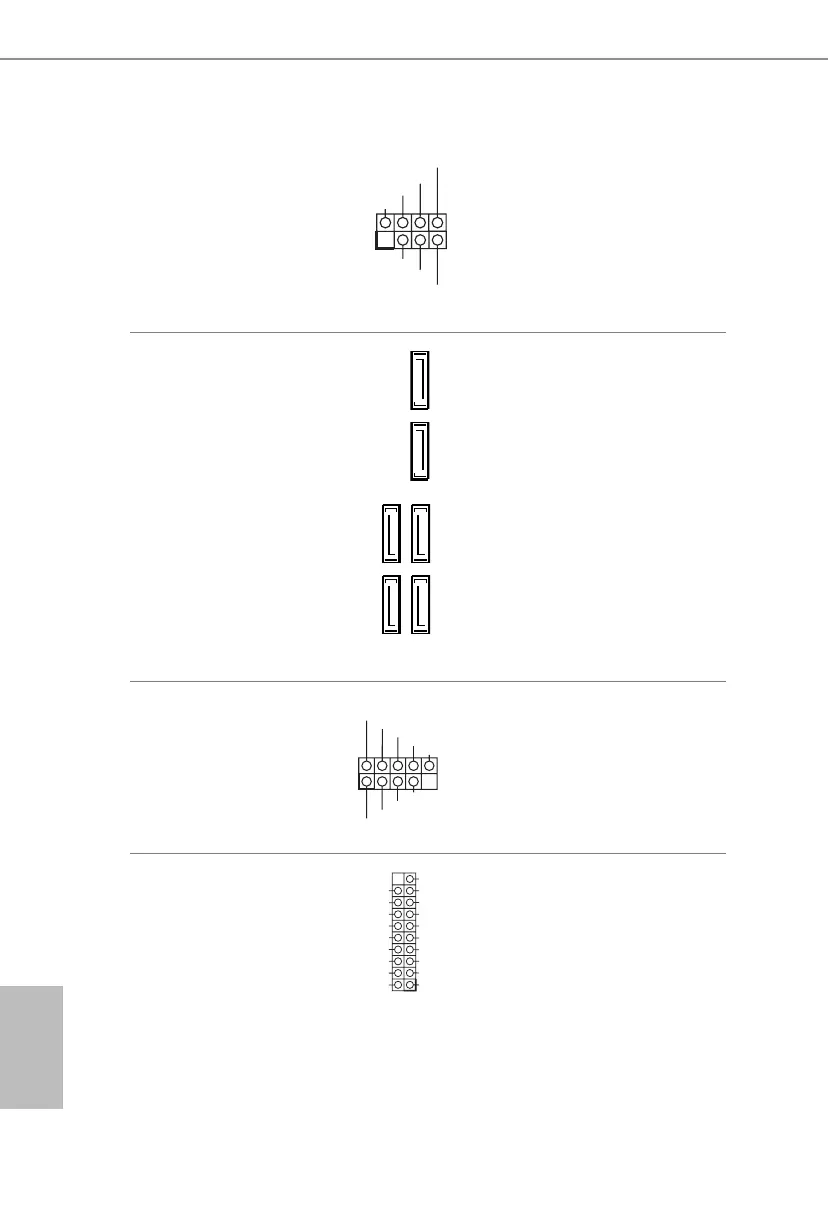

Chassis Intrusion and
Speaker Header
(7-pin SPK_CI1)
(see p.1, No. 17)
Please connect the
chassis intrusion and the
chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 7)
(SATA3_1:
see p.1, No. 8)
(SATA3_2:
see p.1, No. 11)
(SATA3_3:
see p.1, No. 12)
(SATA3_4:
see p.1, No. 14)
(SATA3_5:
see p.1, No. 13)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_0 will be disabled.
USB 2.0 Headers
(9-pin USB1_2)
(see p.1, No. 18)
(9-pin USB3_4)
(see p.1, No. 19)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.0 Header
(19-pin USB3_5_6)
(see p.1, No. 9)
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. is USB
3.0 header can support
two ports.
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_4
SATA3_1
SATA3_5
SATA3_2
SATA3_0
SATA3_3
