ASROCK B560M-ITX/ac User Manual

English
23
B560M-IT X/ac

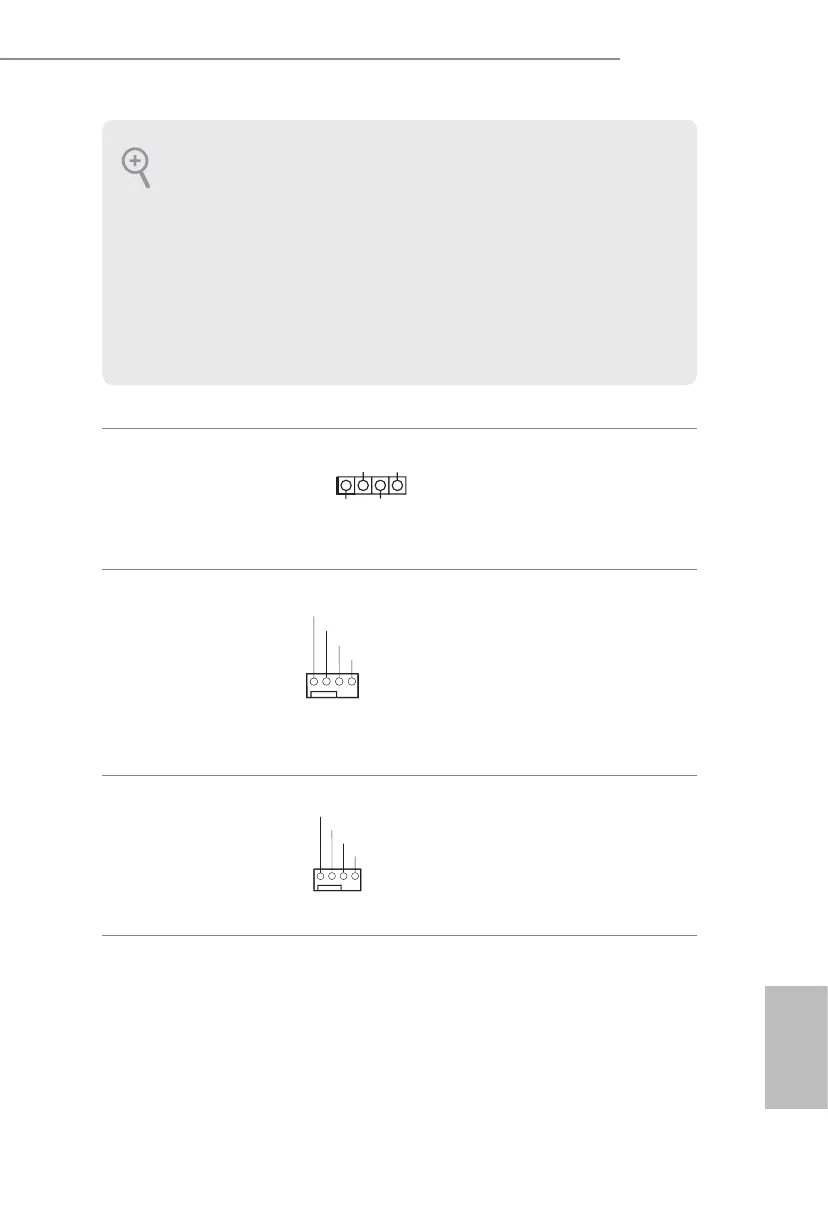

Chassis Speaker Header
(4-pin SPEAKER1)
(see p.1, No. 16)
Please connect the chassis
speaker to this header.
Chassis/Water Pump Fan
Connector
(4-pin CHA_FAN1/WP)
(see p.1, No. 3)
is motherboard
provides a 4-Pin water
cooling chassis fan
connector. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.
Chassis Fan Connector
(4-pin CHA_FAN2)
(see p.1, No. 17)
Please connect fan cables
to the fan connector and
match the black wire to
the ground pin.
1 2 3 4
GND
CHA_FAN_SPEED
F AN_SPEED_CONTROL
FAN_VOLTAGE
1
+5V
DUMMY
DUMMY
SPEAKER
4 3 2 1
GN D
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

ASROCK B560M-ITX/ac Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	4400, 4600 MHz
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B560
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
BIOS type	UEFI AMI
ACPI version	6.0
System Management BIOS (SMBIOS) version	2.7
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
