ASROCK B560M-ITX/ac User Manual

English
30
2.8 ASRock Polychrome SYNC
ASRock Polychrome SYNC is a lighting control utility specically designed for unique indi-
viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by
connecting the LED strip, you can customize various lighting schemes and patterns, including
Static, Breathing, Strobe, Cycling, Music, Wave and more.

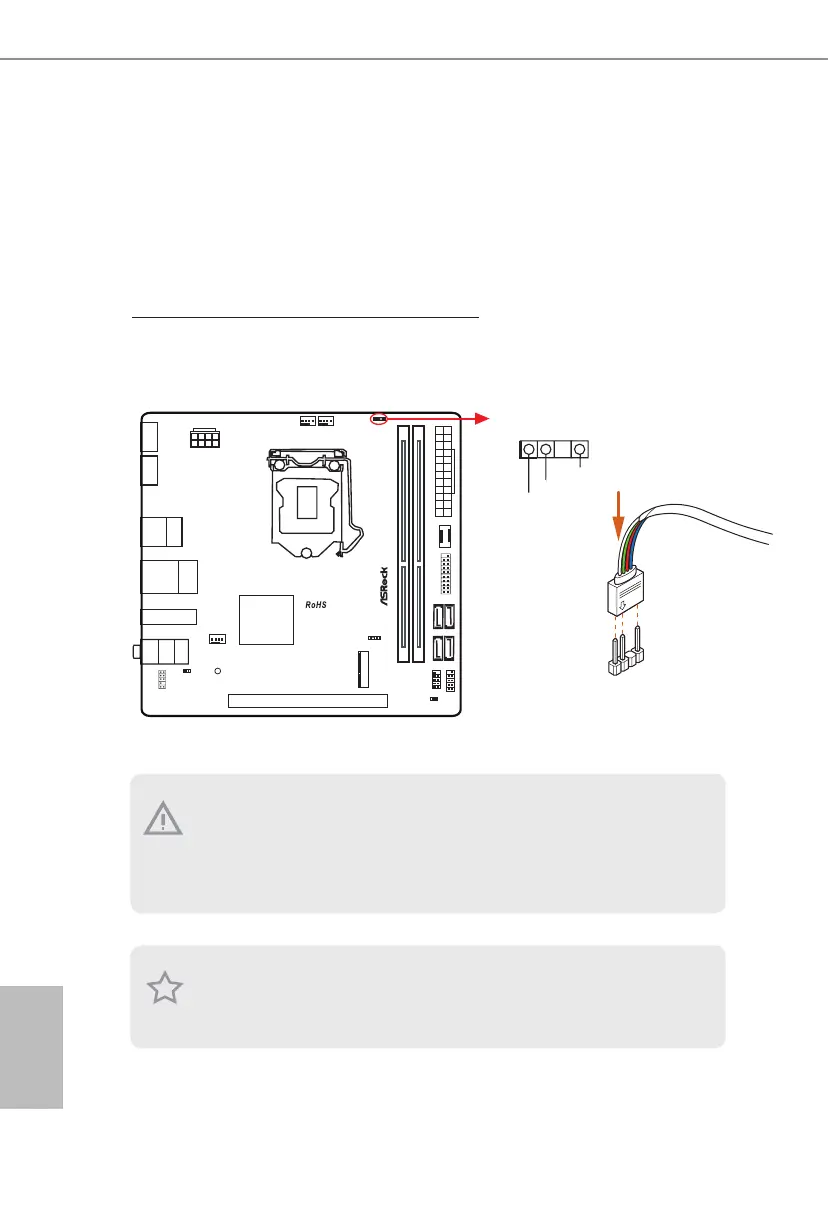

Connecting the Addressable RGB LED Strip
Connect your Addressable RGB LED strips to the Addressable LED Header (ADDR_LED1) on
the motherboard.
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable
may be damaged.
2. Before installing or removing your RGB LED cable, please power o your system
and unplug the power cord from the power supply. Failure to do so may cause dam-
ages to motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/
GND), with a maximum power rating of 3A (5V) and length within 2 meters.
1
ADDR_LED1
VOUT
DO_ADDR
GND
1

ASROCK B560M-ITX/ac Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	4400, 4600 MHz
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B560
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
BIOS type	UEFI AMI
ACPI version	6.0
System Management BIOS (SMBIOS) version	2.7
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
