B650D4U
B650D4U-2L2T
B650D4U-2L2T/BCM
32 33
English

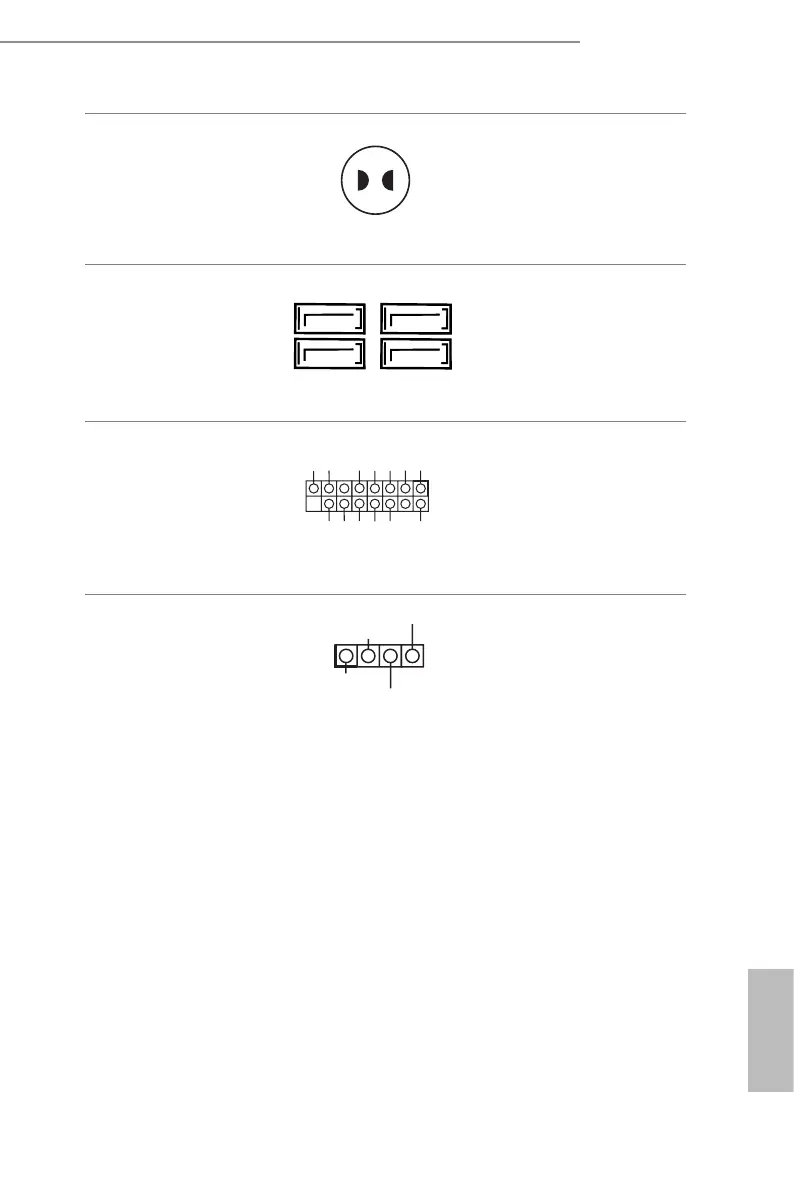

Clear CMOS Pad
(CLRMOS1)
is allows you to clear the
data in CMOS. To clear CMOS,
take out the CMOS battery and
short the Clear CMOS Pad.
Serial ATA3 Connectors
(SATA_0)
(SATA_1)
(SATA_2)
(SATA_3)
SATA_3
SATA_2
SATA_1
SATA_0
ese four SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
Front VGA Header
(15-pin FR NT_VGA1)
GND
Green
1
DDC_DATA
V_SYNC
Red
DDC_CLK
GND
+5V
H_SYNC
GND
GND
GND
Blue
Please connect either end
of VGA_2X8 cable to VGA
header.
Front LAN LED
Connector
(LED_LAN3_4)
(B650D4U-2L2T only)
1
LAN3_LINK
LED_PWR
LED_PWR
LAN4_LINK
is 4-pin connector is used
for the front LAN status
indicator.
