2.12 M.2 SSD Module Installation Guide
e Hyper M.2 Socket (M2_1, Key M) supports type 2242/2280 M.2 PCI Express module
up to Gen5 x4 (32GT/s x4). e M.2 Socket (M2_2, Key M) supports type 2242/2280 M.2
PCI Express module up to Gen4 x4 (16GT/s x4)
(for B650D4U only)
.
Installing the M.2 SSD Module
Step 1
Prepare a M.2 SSD module and the
screw.
BCDE
A

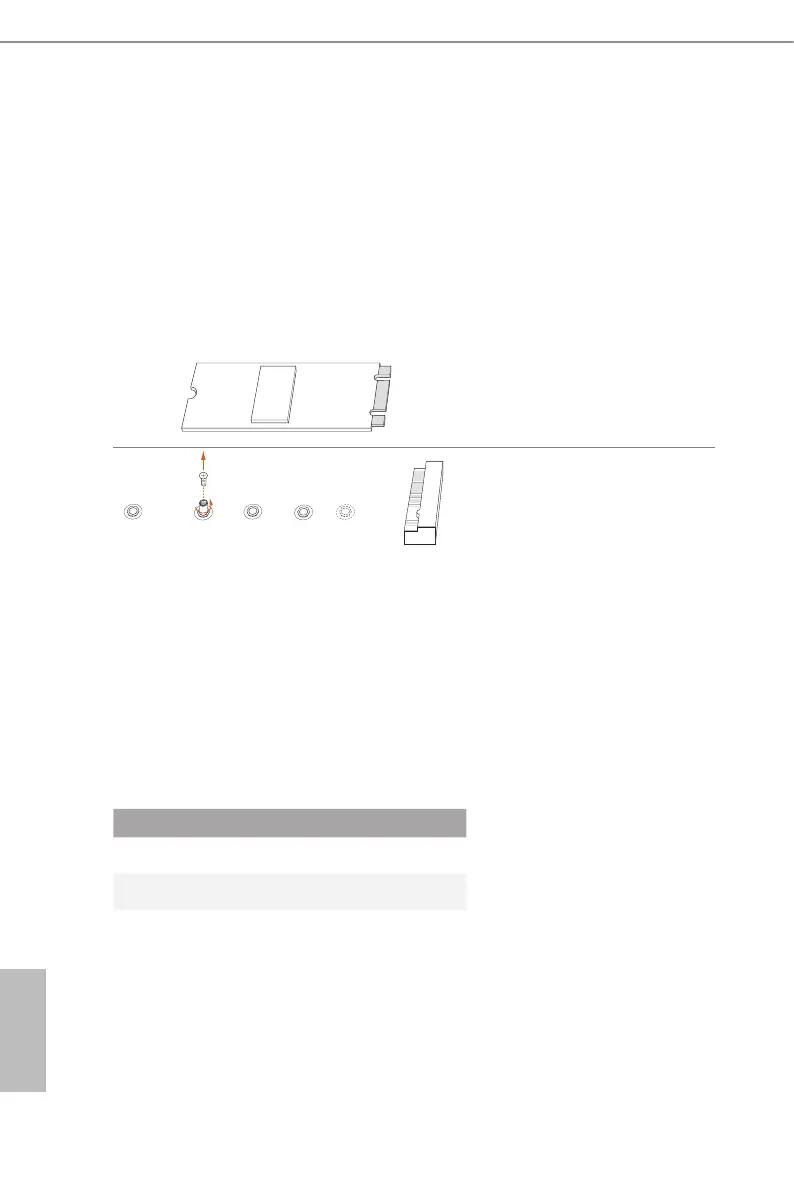

Step 2
Depending on the PCB type and
length of your M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1 2
Nut Location A B
PCB Length 4.2cm 8cm
Module Type Type 2242 Ty pe 2280
