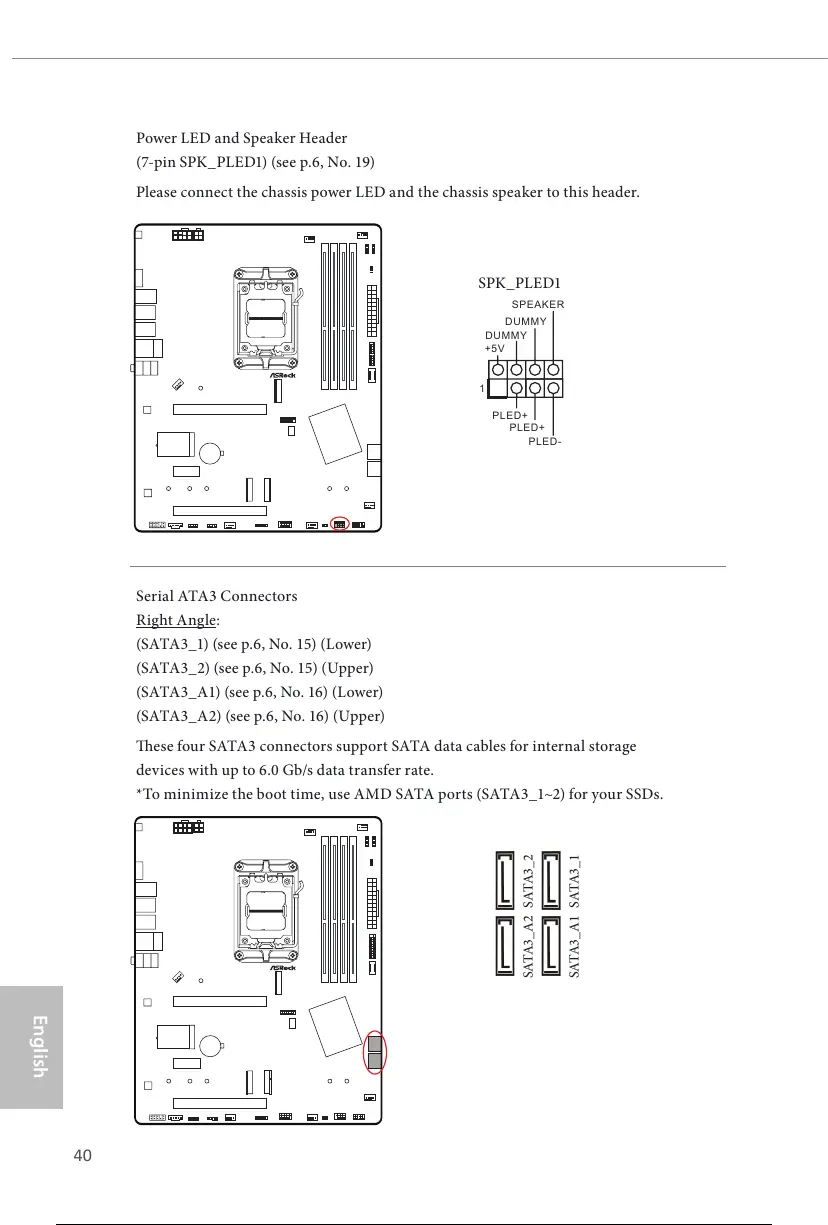

Power LED and Speaker Header
(7-pin SPK_PLED1) (see p.6, No. 19)
Please connect the chassis power LED and the chassis speaker to this header.
Serial ATA3 Connectors
Right Angle:
(SATA3_1) (see p.6, No. 15) (Lower)
(SATA3_2) (see p.6, No. 15) (Upper)
(SATA3_A1) (see p.6, No. 16) (Lower)
(SATA3_A2) (see p.6, No. 16) (Upper)
ese four SATA3 connectors support SATA data cables for internal storage
devices with up to 6.0 Gb/s data transfer rate.
*To minimize the boot time, use AMD SATA ports (SATA3_1~2) for your SSDs.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
SPK_PLED1
SATA3_A1 SATA3_1
SATA3_A2 SATA3_2
