B650E PG Riptide WiFi

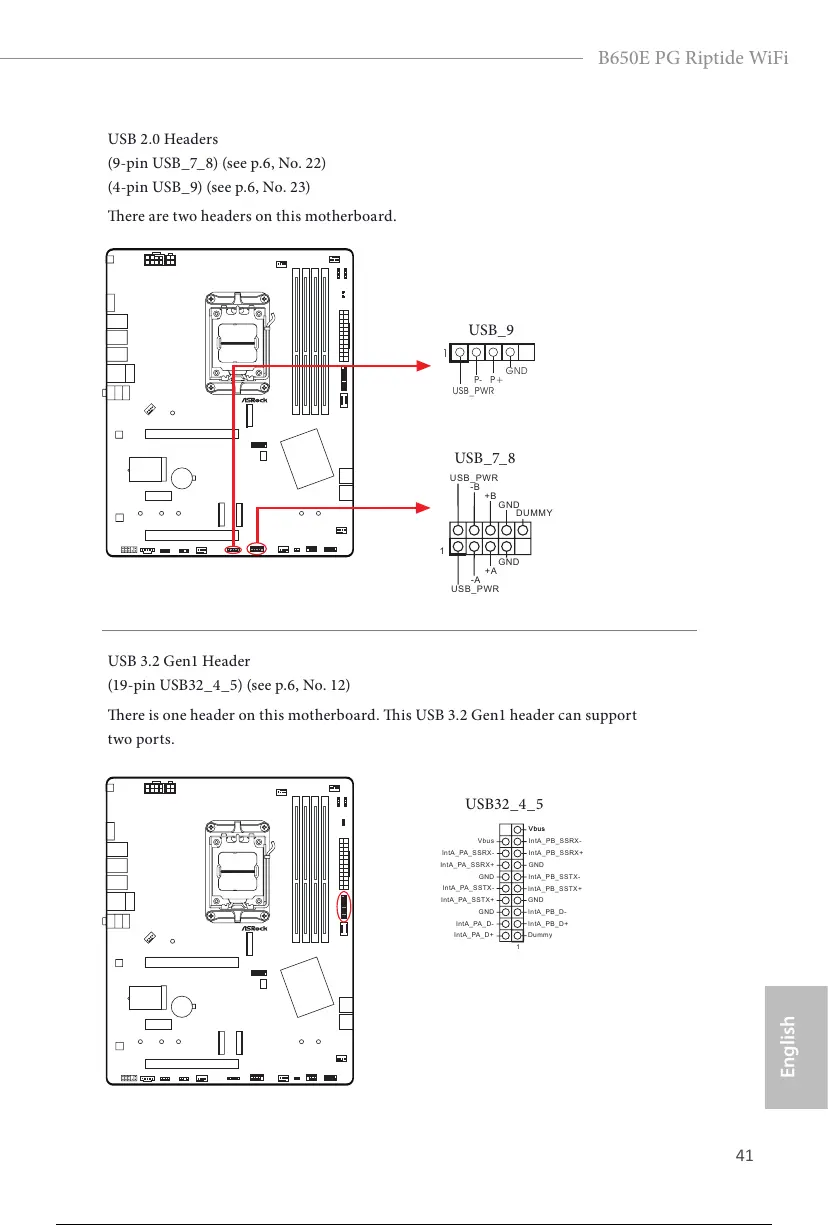

USB 2.0 Headers
(9-pin USB_7_8) (see p.6, No. 22)
(4-pin USB_9) (see p.6, No. 23)
ere are two headers on this motherboard.
USB 3.2 Gen1 Header
(19-pin USB32_4_5) (see p.6, No. 12)
ere is one header on this motherboard. is USB 3.2 Gen1 header can support
two ports.
USB_9
USB_7_8
DUMMY
G ND
G ND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
1
IntA _P B_ D+
Dumm y
IntA _P B_ D-
GND
IntA _P B_ SSTX+
GND
IntA _P B_ SSTX-
IntA _P B_ SSRX+
IntA _P B_ SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB32_4_5
1
USB_PWR
P-
P+
GND
