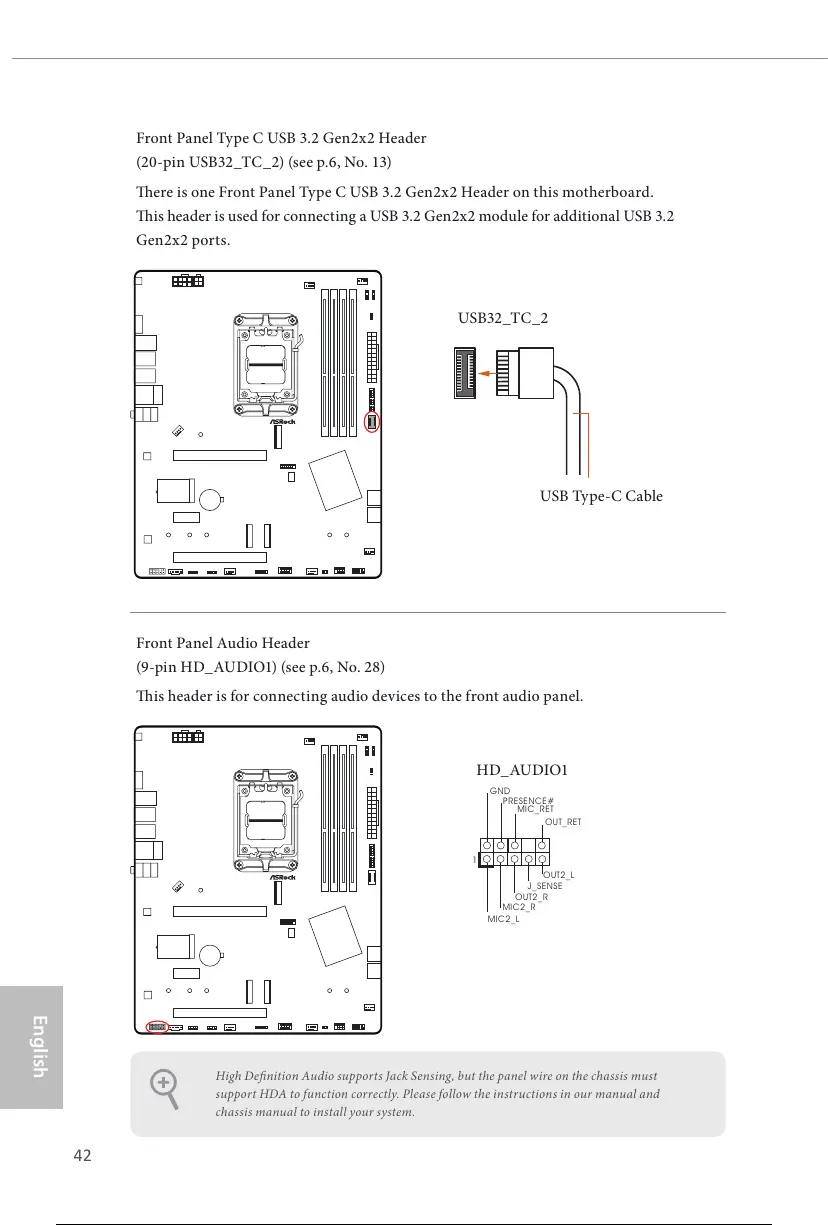

Front Panel Type C USB 3.2 Gen2x2 Header
(20-pin USB32_TC_2) (see p.6, No. 13)
ere is one Front Panel Type C USB 3.2 Gen2x2 Header on this motherboard.
is header is used for connecting a USB 3.2 Gen2x2 module for additional USB 3.2
Gen2x2 ports.
Front Panel Audio Header
(9-pin HD_AUDIO1) (see p.6, No. 28)
is header is for connecting audio devices to the front audio panel.
USB32_TC_2
USB Type-C Cable
HD_AUDIO1
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must
support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.
J _SENSE
O UT2_L
1
M IC_RET
P RESENCE #
GND
O UT2_R
M IC2_R
M IC2_L
OUT_RET
47 / 73
