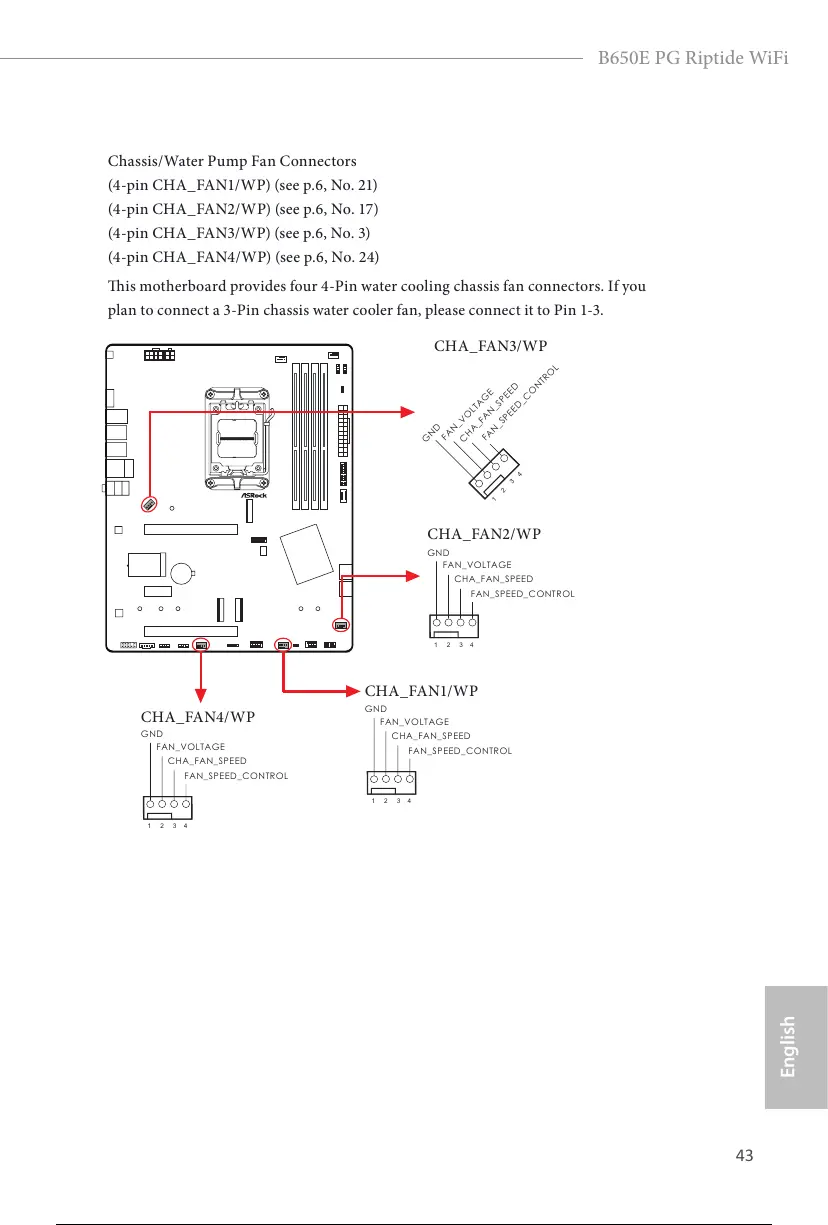

Chassis/Water Pump Fan Connectors
(4-pin CHA_FAN1/WP) (see p.6, No. 21)
(4-pin CHA_FAN2/WP) (see p.6, No. 17)
(4-pin CHA_FAN3/WP) (see p.6, No. 3)
(4-pin CHA_FAN4/WP) (see p.6, No. 24)
is motherboard provides four 4-Pin water cooling chassis fan connectors. If you
plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
CHA_FAN4/WP
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLT A GE
1 2 3 4
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLT A GE
1 2 3 4
CHA_FAN3/WP
CHA_FAN1/WP
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLT A GE
1 2 3 4
CHA_FAN2/WP
GN D
CH A_FAN_SPEED
FA N_SPEED_CONTROL
F A N_VOLT A GE
1 2 3 4
48 / 73

ASROCK B650E PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7, AMD Ryzen 9 7th Gen, AMD Ryzen 5
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
Number of SATA III connectors	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Killer E3100G
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
