ASROCK B650E PG Riptide WiFi User Manual

English
47
B650E PG Riptide WiFi

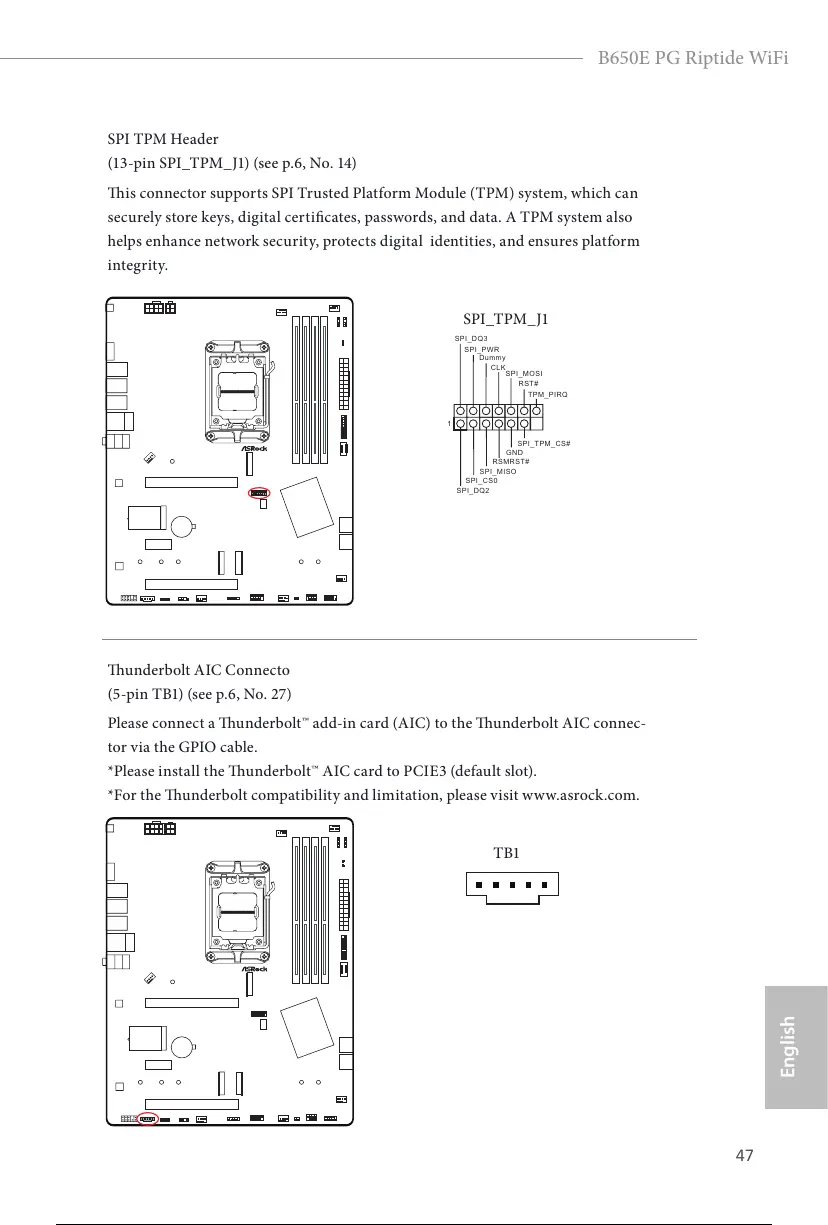

SPI TPM Header
(13-pin SPI_TPM_J1) (see p.6, No. 14)
is connector supports SPI Trusted Platform Module (TPM) system, which can
securely store keys, digital certicates, passwords, and data. A TPM system also
helps enhance network security, protects digital identities, and ensures platform
integrity.
underbolt AIC Connecto
(5-pin TB1) (see p.6, No. 27)
Please connect a underbolt™ add-in card (AIC) to the underbolt AIC connec-
tor via the GPIO cable.
*Please install the underbolt™ AIC card to PCIE3 (default slot).
*For the underbolt compatibility and limitation, please visit www.asrock.com.
SPI_TPM_J1
1
SPI _ DQ3
SPI _ PWR
SPI _ DQ2
SPI _ CS0
Dum m y
CLK
SPI _ MISO
SPI _ MOSI
GND
SPI _ TPM_CS #
RST #
RSM R ST#
TPM _ PIRQ
TB1
52 / 73

ASROCK B650E PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7, AMD Ryzen 9 7th Gen, AMD Ryzen 5
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	7
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
Number of SATA III connectors	3
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Killer E3100G
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
