English
48

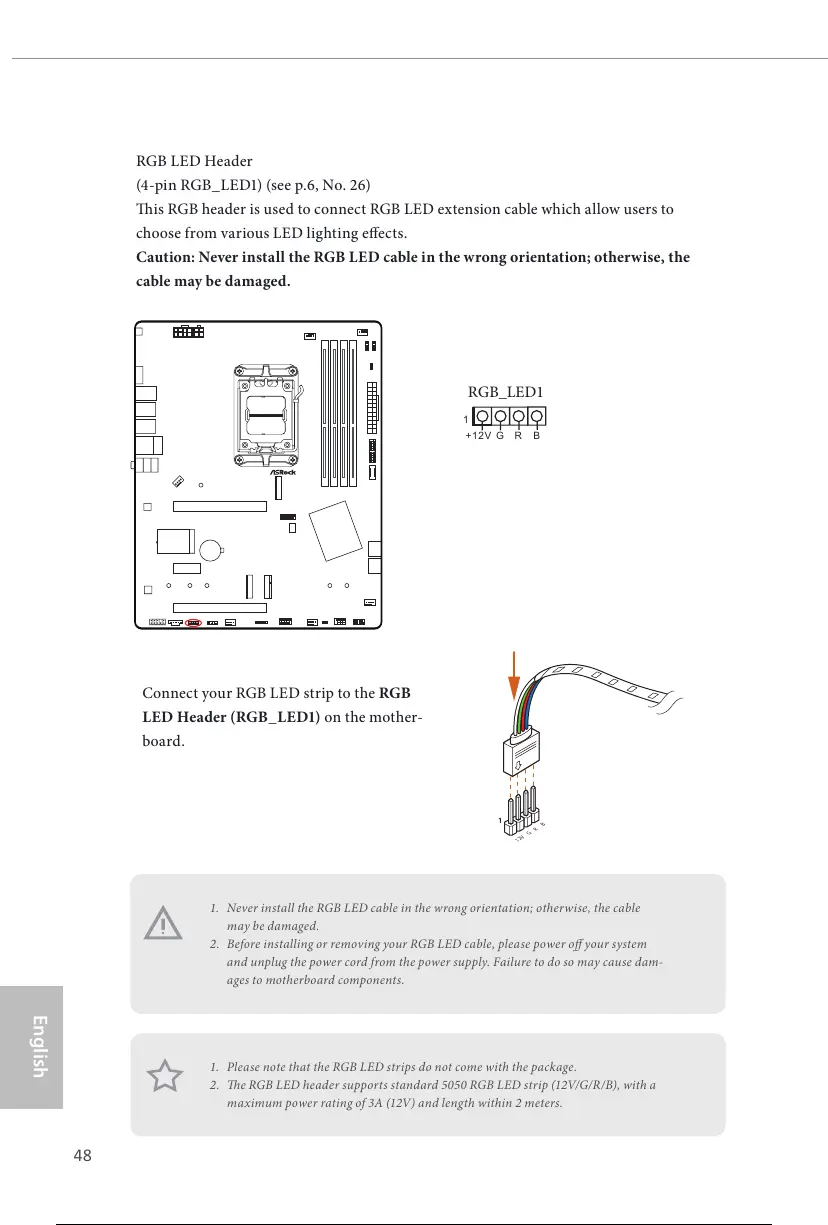

RGB LED Header
(4-pin RGB_LED1) (see p.6, No. 26)
is RGB header is used to connect RGB LED extension cable which allow users to
choose from various LED lighting eects.
Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the
cable may be damaged.
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable
may be damaged.
2. Before installing or removing your RGB LED cable, please power o your system
and unplug the power cord from the power supply. Failure to do so may cause dam-
ages to motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.
1
2
V
G
R
B
1
RGB_LED1
+12V G R B
1
Connect your RGB LED strip to the
RGB
LED Header
(
RGB_LED1)
on the mother-
board.
