37
B650M PG Riptide WiFi
2.11 Jumpers Setup

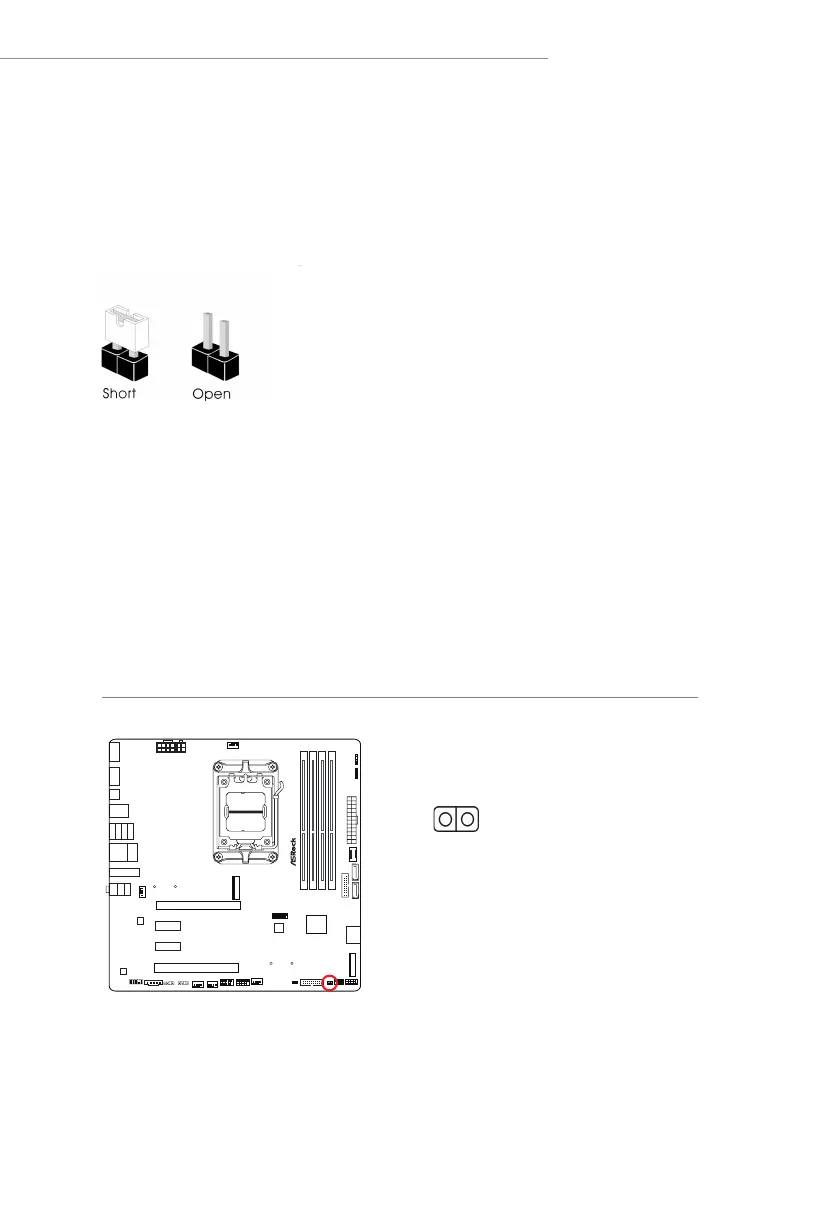

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short. If no jumper cap is placed on the pins, the jumper is
Open”.
Clear CMOS Jumper
(CLRCMOS1) (see p.6, No. 17)
CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. To clear and reset the system parameters to default setup, please
turn o the computer and unplug the power cord, then use a jumper cap to short
the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper
cap aer clearing the CMOS. If you need to clear the CMOS when you just nish
updating the BIOS, you must boot up the system rst, and then shut it down
before you do the clear-CMOS action.
B6 50 M PG
W Fi i
R IP T I D E
2-pin Jumper
Short: Clear CMOS
Open: Default
CLRCMOS1
