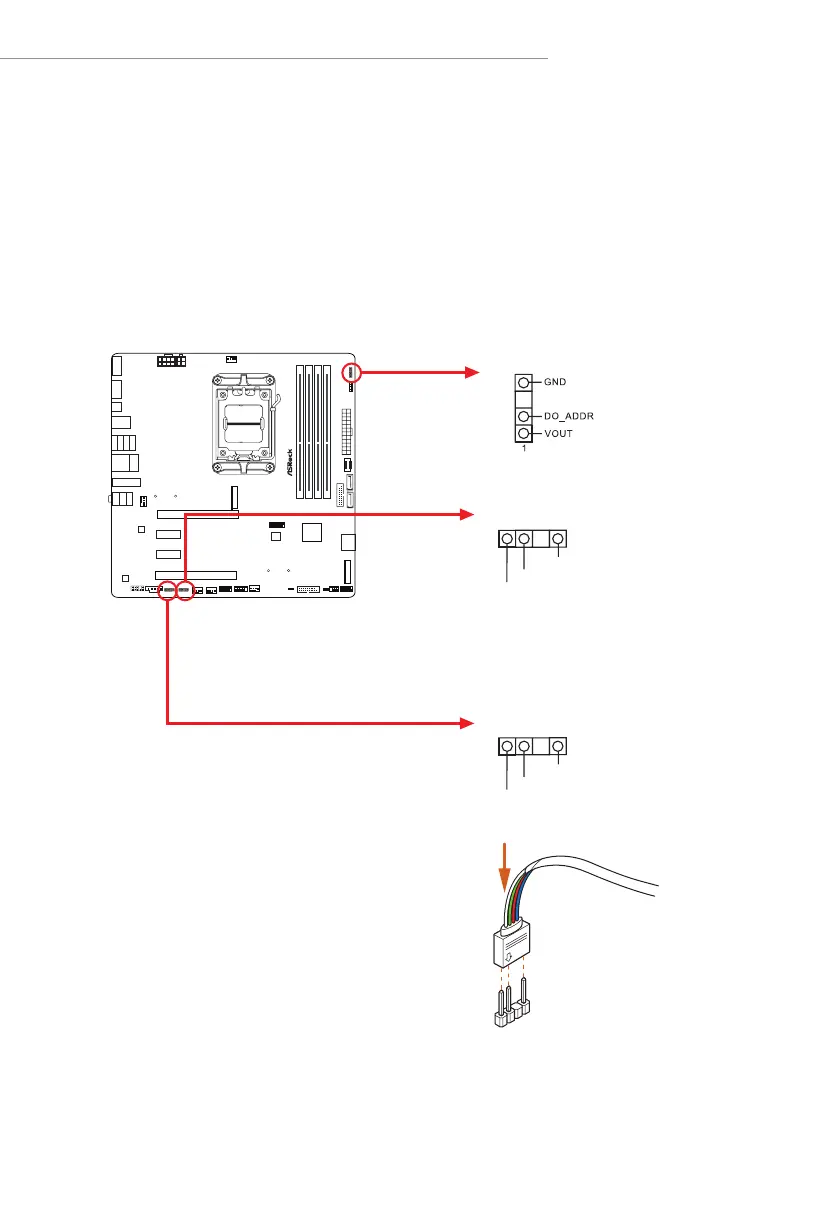

Addressable LED Headers
(3-pin ADDR_LED1) (see p.6, No. 25)
(3-pin ADDR_LED2) (see p.6, No. 26)
(3-pin ADDR_LED3) (see p.6, No. 6)
ese headers are used to connect Addressable LED extension cables which allow users to
choose from various LED lighting eects.
Caution: Never install the Addressable LED cable in the wrong orientation; otherwise,
the cable may be damaged.
B6 50 M PG
W Fi i
R IP T I DE
VOUT
DO_ADDR
GND
1
ADDR_LED2
ADDR_LED3
VOUT
DO_ADDR
GND
1
ADDR_LED1
1
Connect your Addressable RGB LED strips
to the Addressable LED Headers (ADDR_
LED1 / ADDR_LED2 / ADDR_LED3) on
the motherboard.

ASROCK B650M PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC897
Certification	- FCC, CE - ErP/EuP ready
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
LAN controller	Dragon RTL8125BG
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
PCI Express x1 (Gen 3.x) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
Cables included	SATA
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel processing technology support	-

Weight and Dimensions

Width	244 mm
