2.15 M.2 SSD Module Installation Guide (M2_1)
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e Blazing M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen5x4 (128
Gb/s) mode.

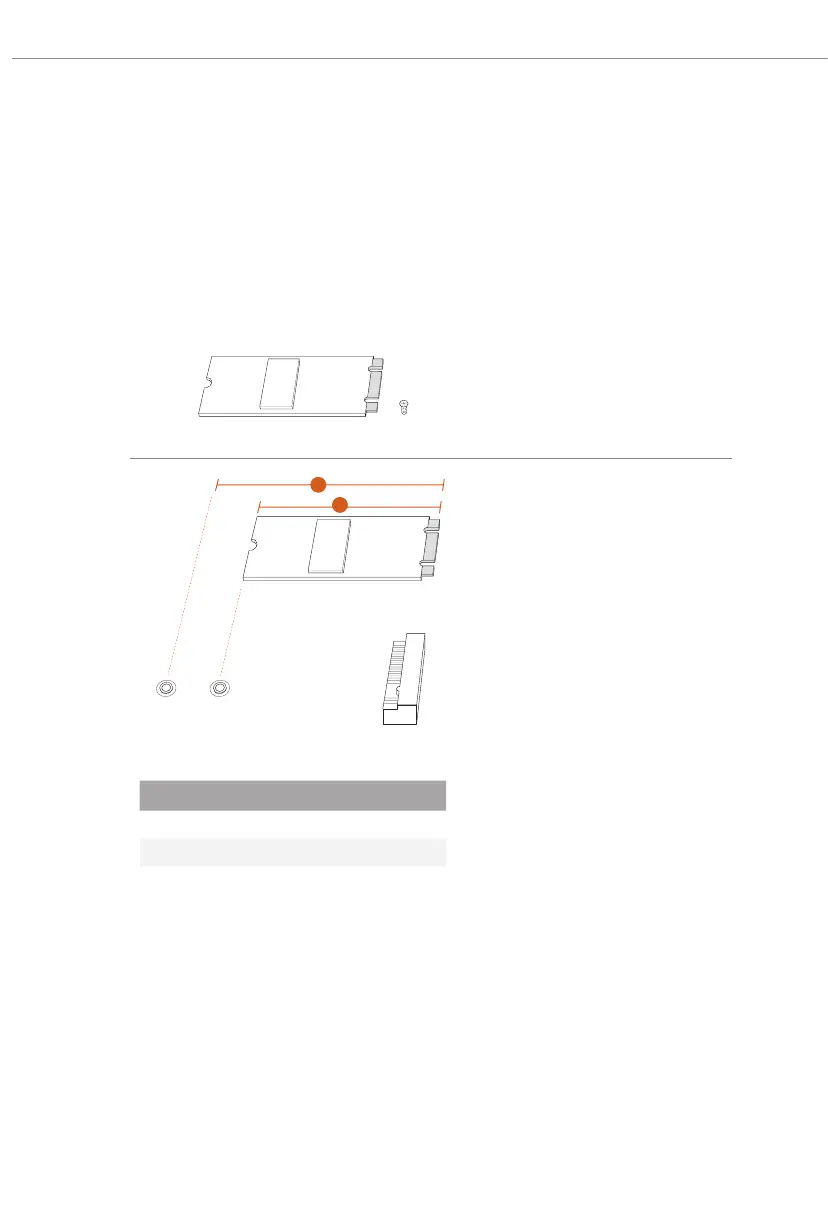

Installing the M.2 SSD Module
Step 1
Prepare a M.2 SSD module.
1
2
AB
Step 2
Depending on the PCB type and
length of your M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1 2
Nut Location A B
PCB Length 6cm 8cm
Module Type Type 226 0 Ty pe 2280
