ASROCK B650M PG Riptide WiFi User Manual

56
NUT1NUT2B

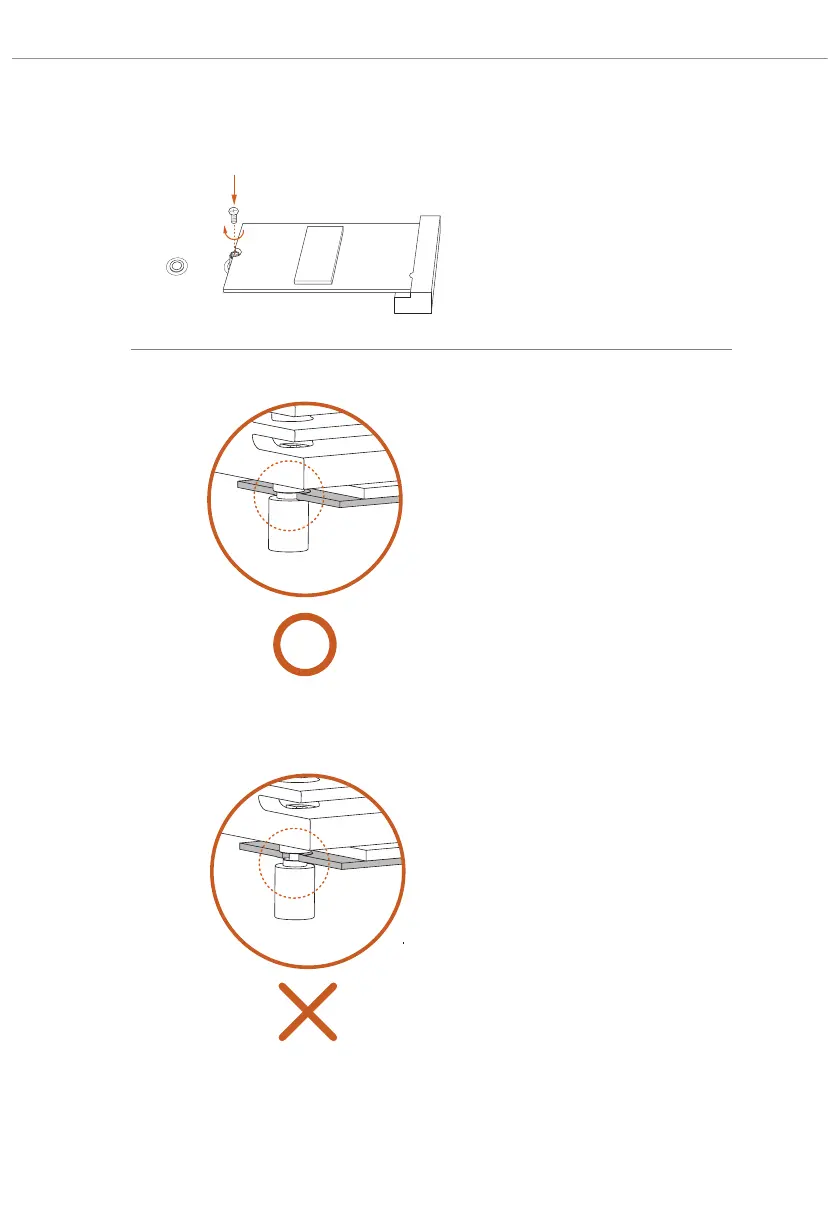

Step 6
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw
as this might damage the module.
Skip Step 6 if your M.2 SSD module is
Type 228 0.
Step 7
Before securing the M.2 heatsink,
make sure to align the notch on
the SSD to the stando on the
motherboard if you use a Type 2280
SSD module; otherwise, the SSD
module may be damaged.
Correct Installation:
e SSD's PCB is in proper place, and
the M.2 heatsink can be screwed in.
Incorrect Installation:
e SSD's PCB sits between M.2 heatsink
and stando. Do not continue.

ASROCK B650M PG Riptide WiFi Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC897
Certification	- FCC, CE - ErP/EuP ready
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
LAN controller	Dragon RTL8125BG
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
PCI Express x1 (Gen 3.x) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
RAID levels	0, 1, 10
Supported storage drive interfaces	M.2, SATA III
Cables included	SATA
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel processing technology support	-

Weight and Dimensions

Width	244 mm
