2.16 M.2 SSD Module Installation Guide (M2_2)
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64
Gb/s) mode.
Installing the M.2 SSD Module

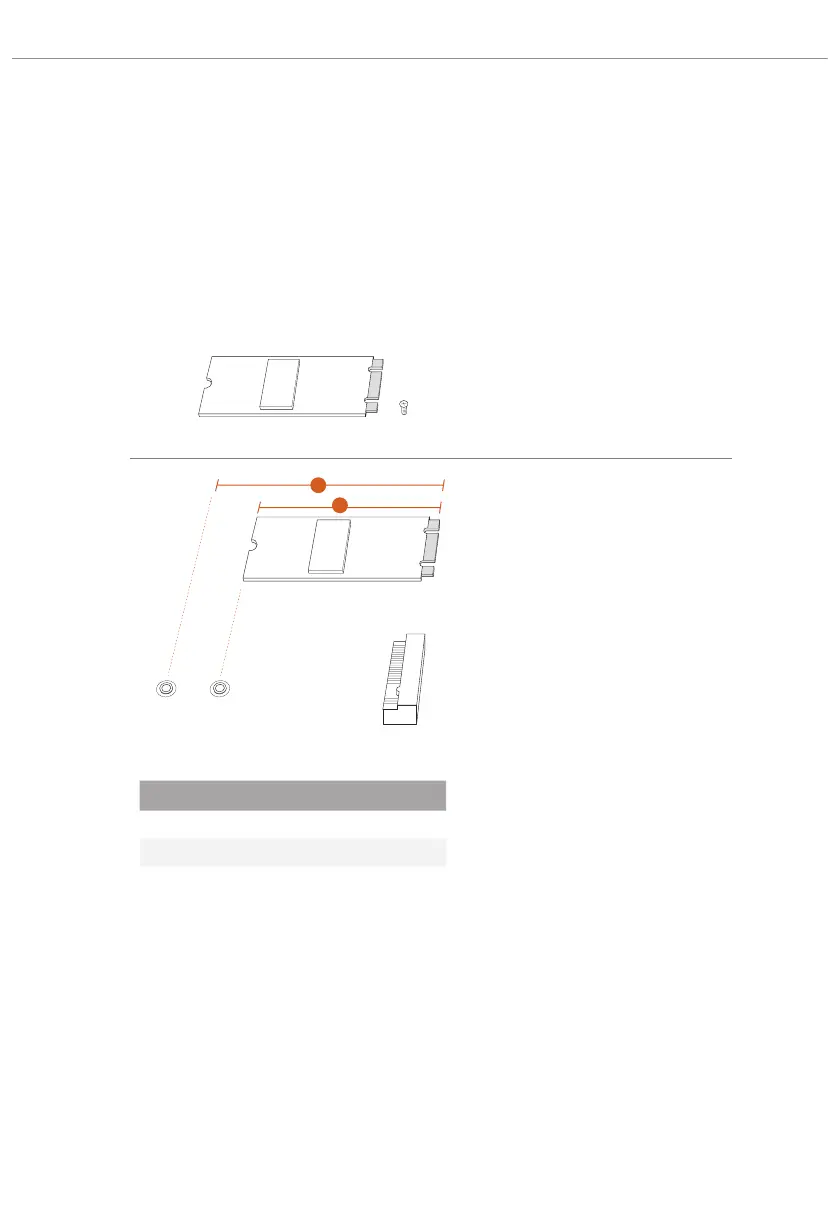

Step 1
Prepare a M.2 SSD module and the
screw.
1
2
AB
Step 2
Depending on the PCB type and
length of your M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1 2
Nut Location A B
PCB Length 6cm 8cm
Module Type Type 226 0 Ty pe 2280
