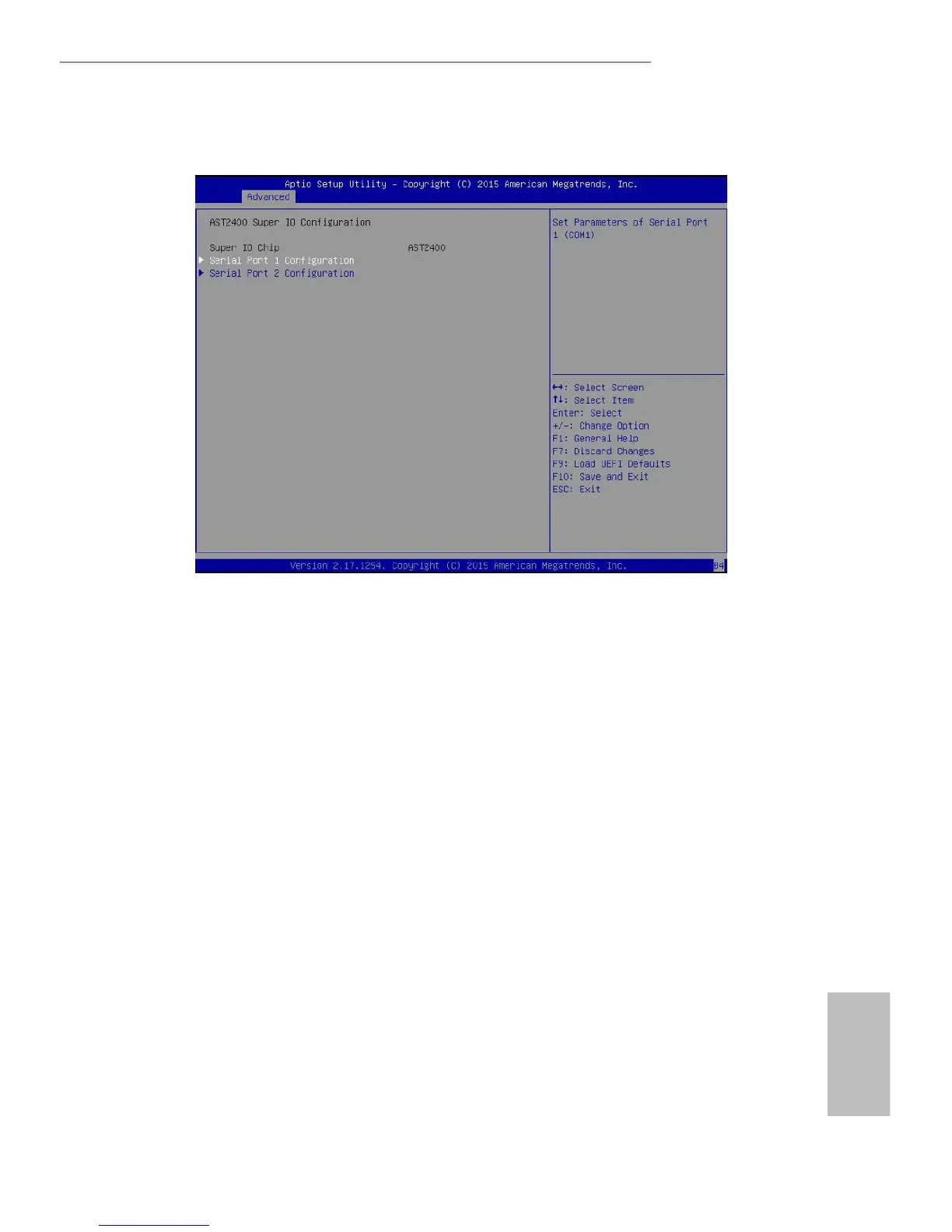

3.3.2 Congure Super IO Settings
Serial Port 1 Conguration
Use this item to congure the onboard serial port 1.
Select and enter the "Serial Port 1 Conguration" and you will see the followings:
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
Serial Port 2 Conguration
Use this item to congure the onboard serial port 2.
Select and enter the "Serial Port 2 Conguration" and you will see the followings:
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
Serial Port Mode
Use this item to select the Serial Port Mode.
