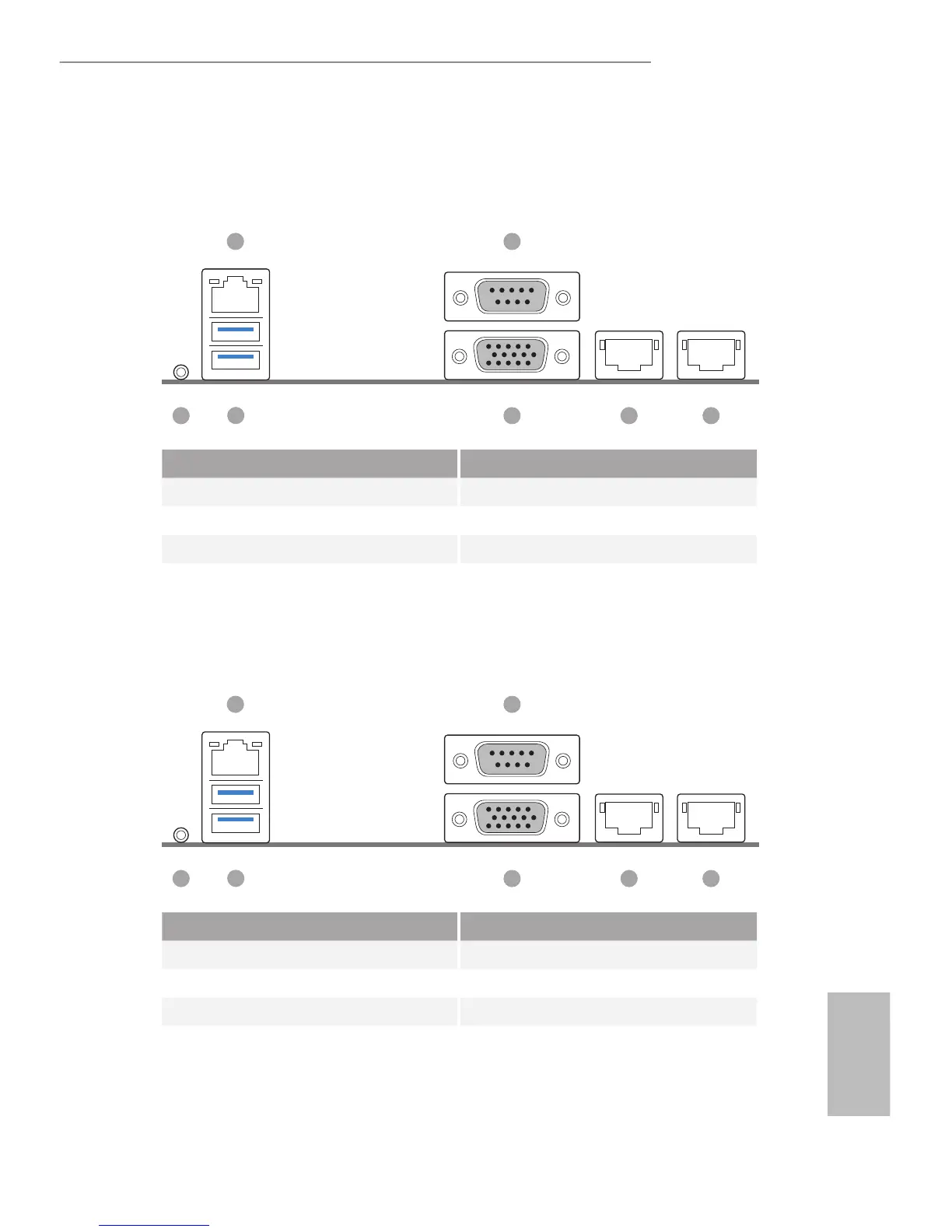

1.6 I/O Panel
D1540D4U-2L+
3
4
5
2
6 7
1
No. Description No. Description
1 UID Switch/LED (UID1) 5 Serial Port (COM1)
2 Dedicated IPMI LAN Port* 6 1G LAN RJ-45 Port (LAN1)**
3 USB 3.0 Ports (USB3_12) 7 1G LAN RJ-45 Port (LAN2)**
4 VGA Port (VGA1)
D1540D4U-2T8R
3
4
5
2
6 7
1
No. Description No. Description
1 UID Switch/LED (UID1) 5 Serial Port (COM1)
2 Dedicated IPMI LAN Port* 6 10G LAN RJ-45 Port (LAN1)**
3 USB 3.0 Ports (USB3_12) 7 10G LAN RJ-45 Port (LAN2)**
4 VGA Port (VGA1)
