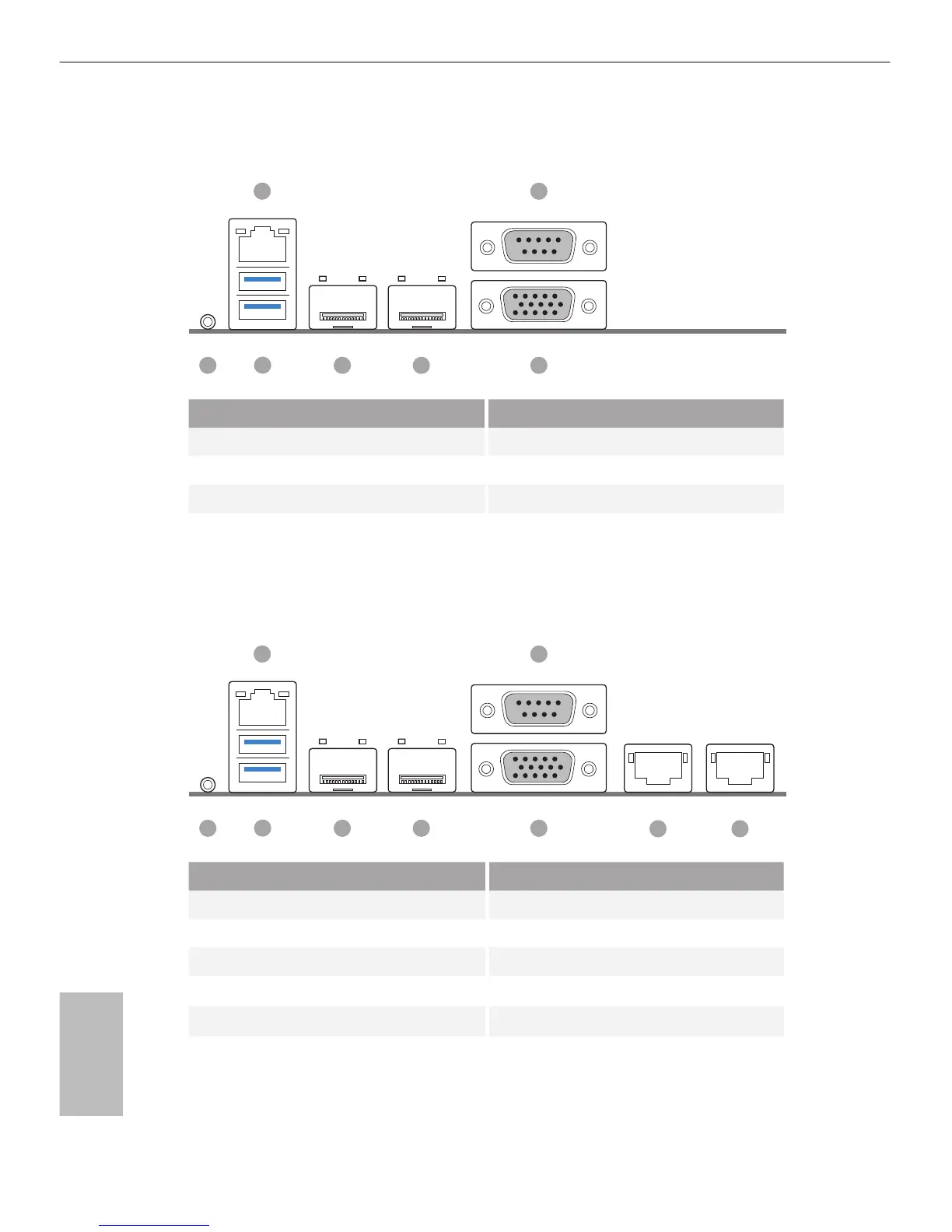

D1540D4U-2O8R
3
6
4
75
2
1
No. Description No. Description
1 UID Switch/LED (UID1) 5 SFP+ Port (Fiber) (SFP+_2)
2 Dedicated IPMI LAN Port* 6 VGA Port (VGA1)
3 USB 3.0 Ports (USB3_12) 7 Serial Port (COM1)
4 SFP+ Port (Fiber) (SFP+_1)
D1540D4U-2T2O8R
3
6
4
75
2
1
8 9
No. Description No. Description
1 UID Switch/LED (UID1) 6 VGA Port (VGA1)
2 Dedicated IPMI LAN Port* 7 Serial Port (COM1)
3 USB 3.0 Ports (USB3_12) 8 10G LAN RJ-45 Port (LAN1)**
4 SFP+ Port (Fiber) (SFP+_1) 9 10G LAN RJ-45 Port (LAN2)**
5 SFP+ Port (Fiber) (SFP+_2)
